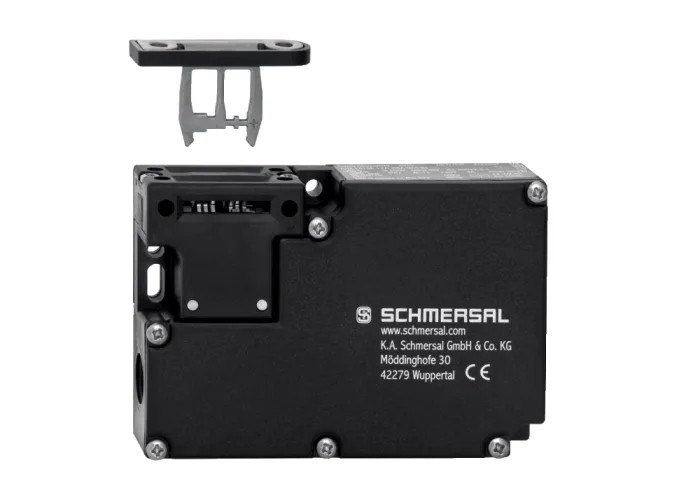

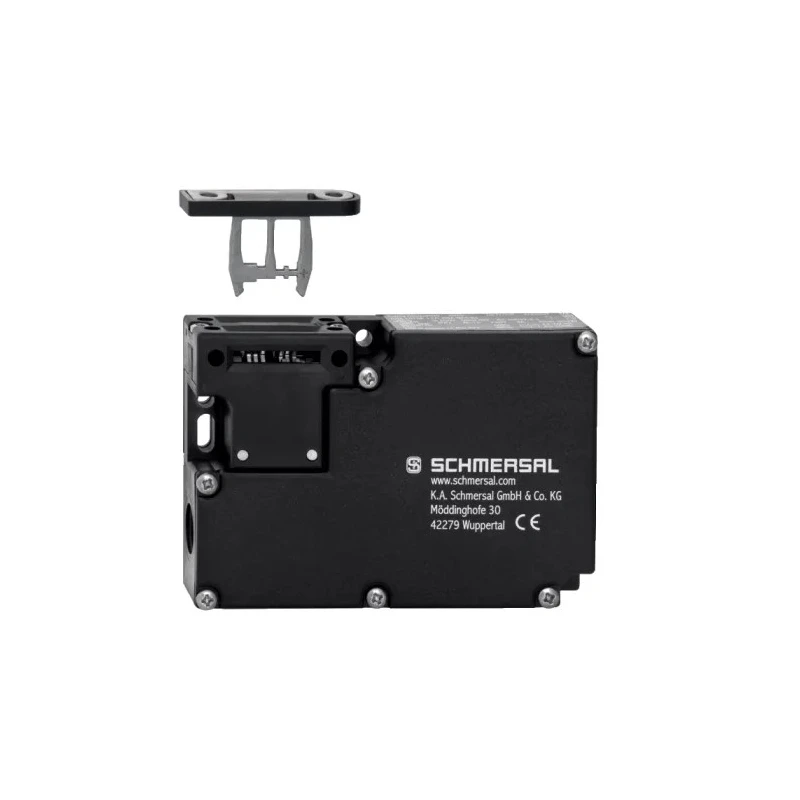

Schmersal Solenoid Interlock Switch with Power to Lock Actuator Included 24V AC/DC, 10W, IP67, AZM161SK-12/12RIA-024-B1

Schmersal AZM161SK-12/12RIA-024-B1 is a high-quality Solenoid Interlock Switch with a power to lock actuator included, designed for industrial electrical safety applications. It operates on a 24V AC/DC supply with a low power consumption of 10W, combining energy efficiency with dependable operation. The device provides critical safety by preventing machinery operation when hazardous conditions exist, protecting operators and equipment.

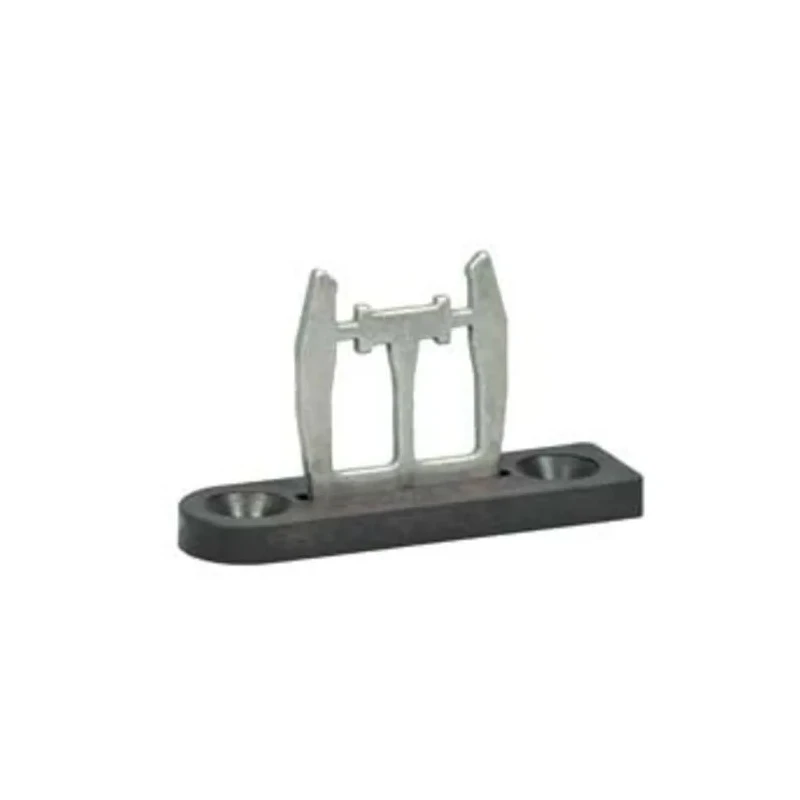

The enclosure is made from glass-fibre-reinforced thermoplastic, delivering robust mechanical strength and fire resistance. The compact form factor, measuring 130mm in length, 90mm in width, and 30mm in depth, allows for easy installation in constrained spaces. The coded actuator included enhances security by preventing unauthorized access or tampering.

This interlock switch features 2 normally-open safety contacts along with 2 auxiliary contacts, enabling flexible wiring configurations and integration into complex control systems. The ingress protection rating of IP67 ensures the product is both dust-tight and resistant to water ingress, making it suitable for challenging industrial environments such as manufacturing plants, transportation systems, and security setups.

Schmersal AZM 161 series meets stringent international safety standards including CE, BG, BG-GS-ET-19, cULus, DIN EN 60269-1, EN 60947-5-1, EN ISO 13849-1, and IEC/EN 60529, guaranteeing high reliability and compliance. The device is double insulated for electrical safety and rated to operate in temperature ranges from 0°C to 60°C, ensuring performance stability under typical industrial conditions.

Users should conduct thorough risk assessments before deployment, especially with power to lock devices, as these may open immediately in events of power failure. This product is ideal for safeguarding access doors and hazardous machinery in industrial automation, transportation, and security systems.

Robust glass-fibre-reinforced thermoplastic enclosure. Coded actuator provided for secure operation. 2 normally-open safety contacts and 2 auxiliary contacts. Compact dimensions 130 x 90 x 30 mm. Ingress protection rating IP67 for dust and water resistance.

Compliance with multiple international safety standards. Power to lock functionality to prevent unsafe operation. Operational temperature range from 0°C to +60°C. Operating voltage 24V AC/DC with 10W consumption. Explore more Schmersal safety and automation products at EnvMart to enhance your industrial safety systems and processes.
