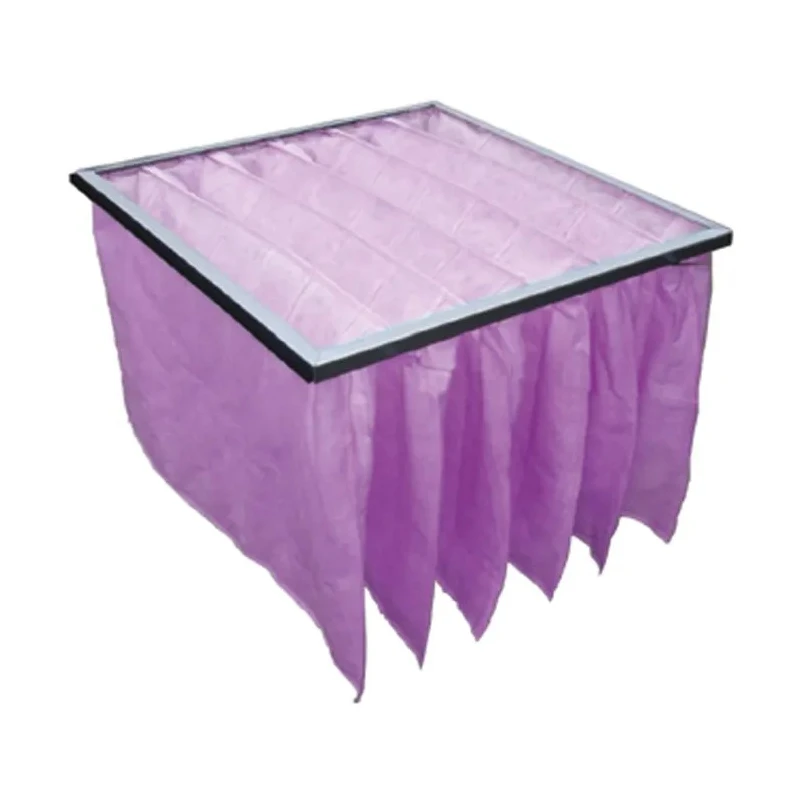

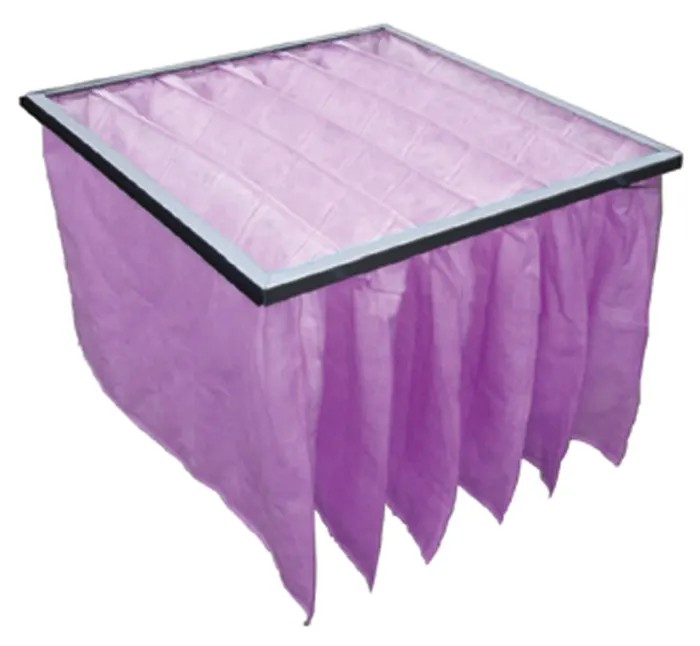

RS PRO Polypropylene Bag Filter F7 Grade 13 MERV Rating 8 Pockets 592mm x 592mm x 350mm 827-9695

RS PRO 827-9695 Polypropylene Bag Filter F7 Grade is designed for efficient fine air filtration applications requiring low-cost operation with superior performance. The filter media is 100% polypropylene and electrostatically charged for enhanced particle capture efficiency. Housed in a robust galvanised steel header, this bag filter features a rolled safety edge that protects the media during installation and operation.

The triple layered filter media is totally non-toxic and non-irritant, making it ideal for sensitive environments. An extra built-in pre-filter layer extends the filter life, while ultrasonically welded seams maintain pocket integrity and prevent leakage, guaranteeing reliable filtration performance.

This F7 grade pink bag filter boasts a MERV rating of 13, offering an average efficiency of 80% at 0.4 micron particle size. It supports a maximum airflow rate of 58.37 m³/h, with an initial pressure drop of 105 Pa and final pressure drop of 350 Pa, suitable for diverse HVAC systems.

Physical dimensions are 592 mm wide by 592 mm high and 350 mm deep, with a header size of 20 mm. The media is hydrophobic to ensure optimal operation in damp or moist atmospheres.

Common industrial and commercial applications include government facilities, hospitals, theatres, spray booths, offices, and computer rooms, where superior air quality and filtration efficiency are critical for operational safety and comfort.

Constructed with 100% polypropylene synthetic electrostatically charged media for optimal fine particle filtration. Hydrophobic media maintains performance in humid conditions and damp atmospheres. Sturdy galvanised steel header frame with rolled safety edge provides durability and safe handling.

Triple filtration layers including an extra pre-filter extend filter lifetime and efficiency. Ultrasonically welded pockets ensure leak-proof filter operation. Rated F7 with 13 MERV for high particle capture efficiency at micron sizes.

Max airflow rating of 58.37 cubic meters per hour supports medium scale HVAC applications. Initial and final pressure drops measured at 105 Pa and 350 Pa respectively. Physical dimensions: 592 mm width, 592 mm height, 350 mm depth, header size 20 mm.

Widely used across government buildings, hospitals, theatres, spray booths, computer rooms, and office environments. Choose RS PRO HVAC Air Filters category for trusted and reliable air filtration solutions from EnvMart.
