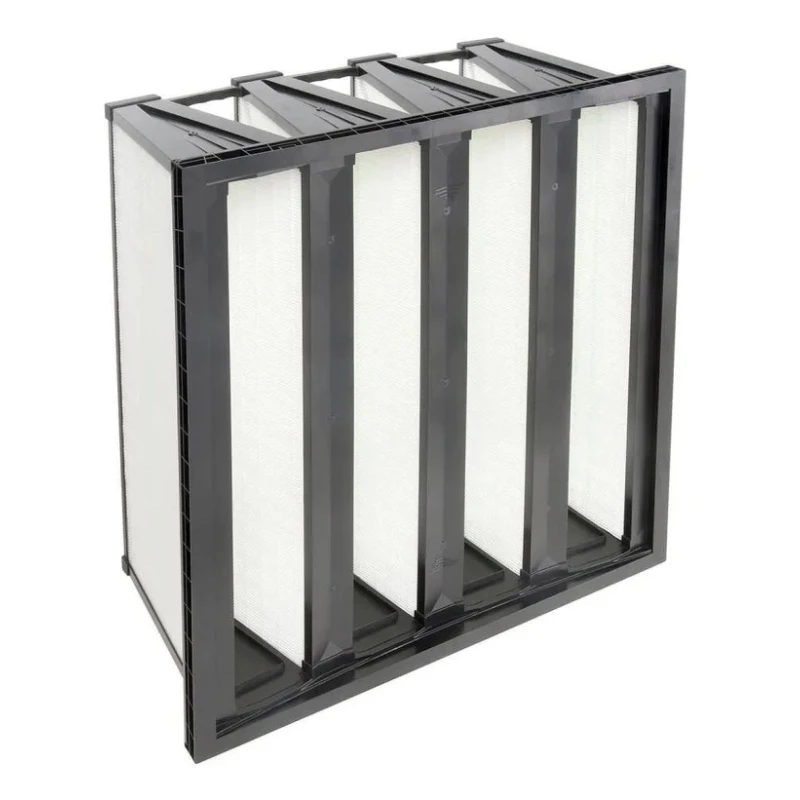

Camfil Opakfil ES Series Fibreglass Compact V-Filter Panel Filter F9 Grade 592mm x 592mm x 296mm 2511.17.5001

Camfil 2511.17.5001 Opakfil ES Series Fibreglass Compact V-Filter Panel Filter F9 Grade with dimensions 592 mm width, 592 mm height, and 296 mm depth is engineered for high efficiency air filtration in HVAC systems. This filter offers a large media area of 17 m² to ensure adequate dust holding capacity and air quality control.

The filter features a robust ABS and polypropylene frame construction with a flange thickness of 25 mm, providing strength and durability while maintaining a lightweight profile of 5 kg for ease of maintenance. The fibreglass media is designed to deliver effective particle capture with a filter class ranging from M6 to F9, making it suitable for both general and specialized filtration tasks.

Operating at maximum continuous temperatures of 70ºC, this filter fulfills stringent EN 779:2012 and ISO 16890 ePM1 80% classification standards, ensuring compliance with current industrial air filtration requirements. It is ideal for low energy buildings, industrial ventilation, cleanroom preparatory filtration, and other commercial HVAC environments.

With a maximum air flow capacity of 3400 m³/h, and an initial pressure drop of only 90 Pa, this compact V-filter supports energy-efficient operation with less frequent filter changes. The aerodynamic radial design enhances airflow while promoting extended operational life. The filter also incorporates hot melt bead separators and a polyurethane sealant for superior filtration integrity and resistance to air bypass.

Standards compliance includes Eurovent certification and testing as per EN 779:2012, verifying mechanical and filtration performance. High efficiency F9 grade filtration suitable for HVAC applications. Compact V-filter design supports low energy consumption and space-saving installation.

Constructed with fibreglass media and ABS polypropylene frame for durability. Maximum air flow capacity of 3400 m³/h with low initial pressure drop of 90 Pa. Operates effectively at temperatures up to 70ºC in continuous service.

Designed for industrial, commercial HVAC systems and cleanroom preparatory filtration. Lightweight at 5 kg, providing ease of handling and replacement. Certified to EN 779:2012 and ISO 16890 Class ePM1 80% standards. Long operating life with reduced filter changes and aerodynamic radial design.

Resistant to hot melt bead separators and equipped with polyurethane sealant for enhanced sealing.

This Camfil Opakfil ES Series filter is a specialized HVAC air filter extensively applied in industrial and commercial ventilation, water treatment facilities, laboratories, manufacturing plants, and cleanroom installations requiring superior air cleanliness and energy efficiency. For comprehensive options and related HVAC filtration products, explore the HVAC Air Filters category at EnvMart.
