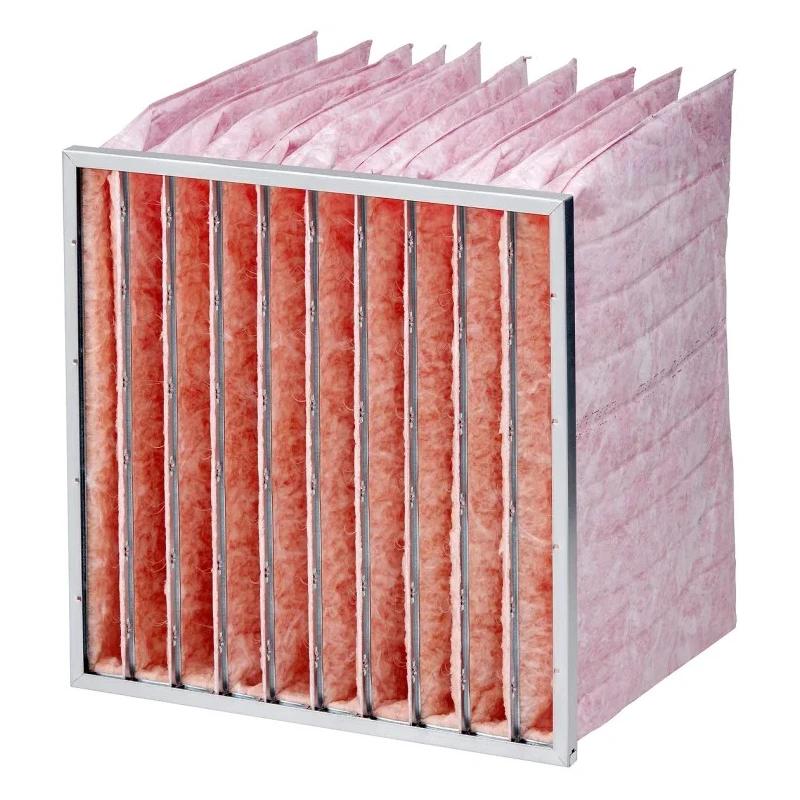

Camfil Fibreglass Bag Filter HI-FLO Series F7 Grade 592mm x 592mm x 520mm 1328.42.00

Camfil 1328.42.00 fibreglass bag filter from the HI-FLO Series is a high-efficiency pocket filter designed for HVAC air filtration applications. The filter features a large media area of 6.2 square meters with 10 conical pockets that ensure effective air distribution and filtration efficiency. The filter media is made from high lofted air-laid microfibre glass, delivering reliable performance throughout the filter's service life.

The galvanised steel frame and case provide durability and corrosion resistance, suitable for industrial and commercial HVAC systems. The filter supports an initial pressure drop of 105 Pa and a final pressure drop of 450 Pa to maintain efficient airflow and filtration. It is designed for use in air handling units, suitable for first or second stage filtration applications in air-conditioned rooms and clean room prefiltration.

Camfil HI-FLO Series filters comply with EN standards and hold an ISO 16890 Class ePM1 60% rating, confirming their capability to capture fine particulate matter efficiently. The filter's maximum airflow capacity is 3400 m³/h with a maximum continuous operating temperature of 70°C, making it suitable for typical HVAC conditions.

The filter dimensions are precisely 592 mm width, 592 mm height, and 520 mm depth with a nominal dimension set matching these measures. The lightweight filter weighs approximately 2.9 kg, facilitating easy installation and replacement.

Applications for this filter include air conditioning in commercial buildings, industrial HVAC systems, and as prefiltration in controlled environments such as clean rooms. Its large filter surface and advanced design optimize pressure drop and airflow for energy-efficient system operation.

Set contains one Camfil HI-FLO Series Fibreglass Bag Filter, model 1328.42.00 with F7 grade filter media and galvanised steel casing. Explore related HVAC Air Filters and filtration accessories in EnvMart's extensive catalog for industrial and commercial air filtration needs.

High-efficiency fibreglass media with 6.2 m² surface area. 10 conical pockets enhance airflow and distribution. Galvanised steel case ensures durability. Low initial pressure drop of 105 Pa. Maximum airflow of 3400 m³/h supports industrial HVAC systems.

Certified F7 filter grade and EN compliance. ISO 16890 Class ePM1 60% certified filtration. Dimensions: 592 mm (W) x 592 mm (H) x 520 mm (D). Operating temperature up to 70°C. Lightweight design of 2.9 kg for easy handling.
