RS PRO General Purpose Momentary Foot Switch SPCO Thermoplastic Housing 250 V AC 3A Contact Current 325-2692

Free Delivery in India | Lowest Global Shipping Charges

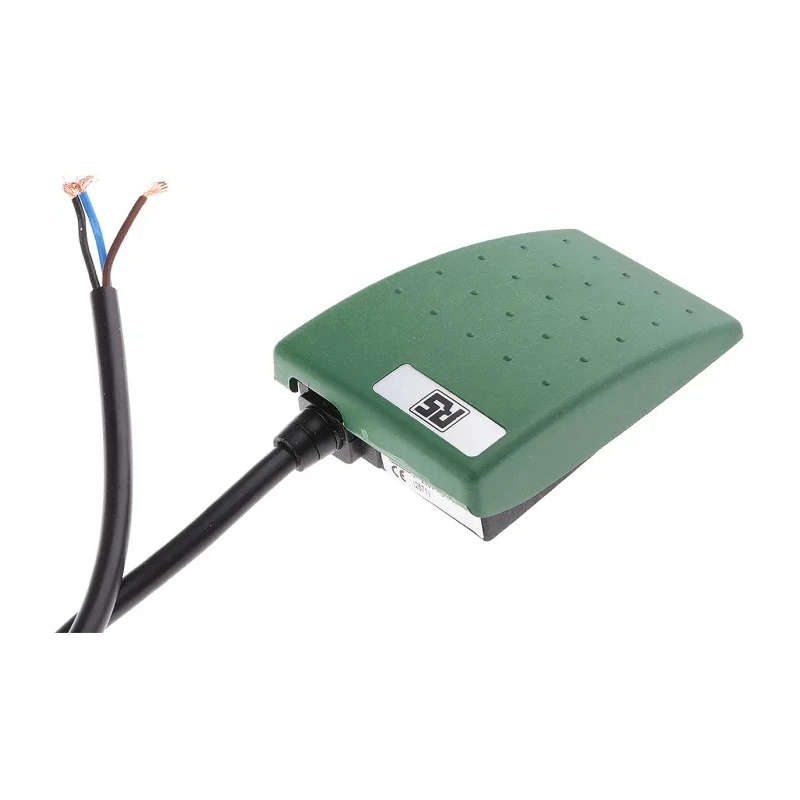

RS PRO General Purpose Momentary Foot Switch SPCO Thermoplastic Housing 250 V AC 3A Contact Current 325-2692

Name: RS PRO General Purpose Momentary Foot Switch SPCO Thermoplastic Housing 250 V AC 3A Contact Current 325-2692
Brand: RS PRO
SKU: 147102
Price: 7868.81 INR
Availability: InStock



Category Foot Switch Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Colour	Green, Black
Operating Temperature	-5°C to +40°C
Height	27mm
Length	90mm
Model	325-2692
IP Rating	IPX7
Width	65mm
Housing Material	Thermoplastic
Series	RS PRO
Contact Configuration	SPCO
Switch Configuration	SPCO
Standards/Approvals	2014/35/EU, EN 60950
Switch Operation	Momentary
Contact DC Voltage	24V dc
Switch Contact Current	3A
Contact AC Voltage	250V ac
Switch Environment	General Purpose
White, 3A, RS stock no	218-4245
Grey, 3A, RS stock no	218-4267
Yellow, 3A, RS stock no	251-2224
Red, 3A, RS stock no	325-2686
Green, 3A, RS stock no	325-2692
24V, White, Medically Approved, RS stock no	513-5139

Key Features

Operates with a momentary (non-latching) action providing single pole changeover switching.
Designed to handle a contact current of 3A at 250 V AC and 24 V DC.
Durable thermoplastic housing in green and black colors ensures longevity.
IPX7-rated for protection against water ingress in demanding environments.
Foot or palm operated with a front hinged, low profile design and raised tread pattern for safety.
Operating temperature range from -5°C to +40°C suits diverse industrial settings.
Supplied with 2 meters of cable for easy installation.
Compact dimensions measuring 90 mm in length, 65 mm in width, and 27 mm in height.

Product Description

RS PRO 325-2692 is a General Purpose Momentary Foot Switch optimized for industrial control applications requiring reliable and safe operation. Featuring a sturdy thermoplastic housing and SPCO (Single Pole Change Over) contact configuration, it supports a contact current of 3 amperes at 250 volts AC and 24 volts DC.

This foot switch operates via a momentary (non-latching) action, making it ideal where a temporary circuit connection is needed during actuation. The low profile design with a raised tread pattern allows both foot and palm operation for ergonomic use in diverse industrial and manufacturing environments.

The switch is IPX7 rated, providing protection against water ingress, enabling its use in wet or harsh conditions common in industrial automation and machinery operation. It operates effectively within a temperature range of -5°C to +40°C, ensuring reliable performance under typical factory ambient conditions.

Supplied with 2 meters of cable, the foot switch installation is straightforward, supporting flexibility in setup. Its compact dimensions (90 mm length x 65 mm width x 27 mm height) make it suitable for integration into control stations without occupying excessive space.

This RS PRO switch meets the requirements of European directives and standards including 2014/35/EU and EN 60950, ensuring compliance with electrical safety standards in industrial and commercial applications.

Typical application scenarios include industrial machinery control, hospital beds actuation, dentist chairs, and lamps where hands-free operation improves safety and convenience. Operates momentarily with a single pole changeover contact design.

Thermoplastic housing ensures insulation and durability. Rated for 3A contact current at 250V AC and 24V DC operation. Designed for general-purpose industrial environments with IPX7 water protection. Ergonomically contoured tread for foot or palm activation.

Supplied with 2 m cable for versatile installation. Compact size fitting tight control panel spaces. Complies with European safety regulations and standards. Explore the wide range of RS PRO Foot Switches and accessories on EnvMart for dependable and quality control switch solutions to support your industrial automation needs.
