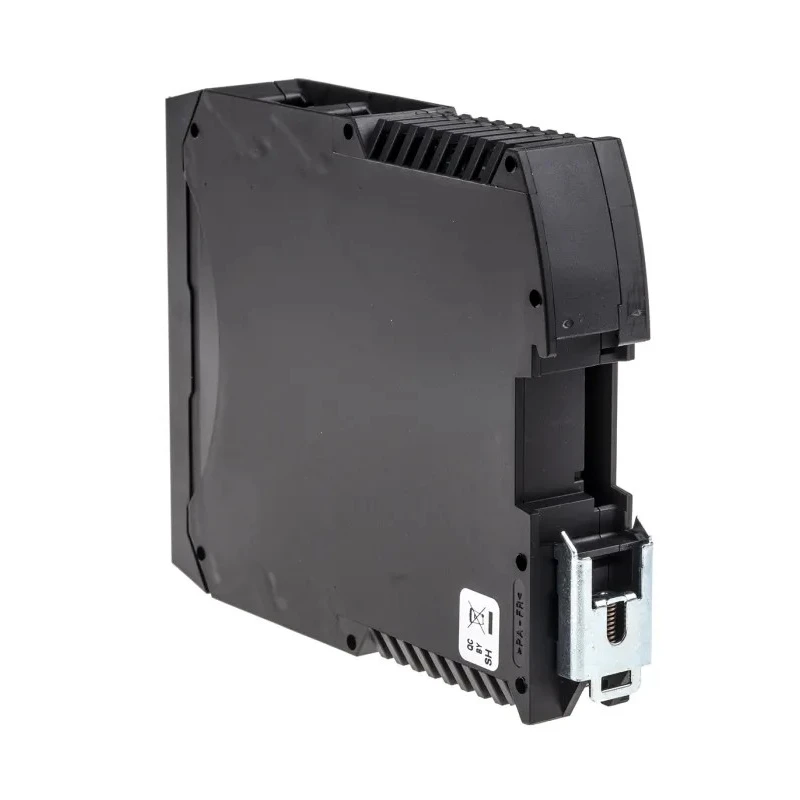

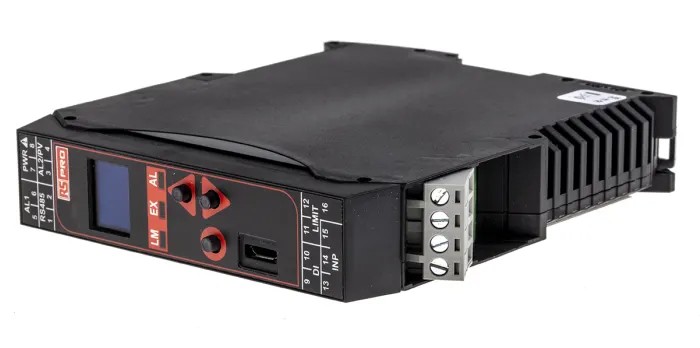

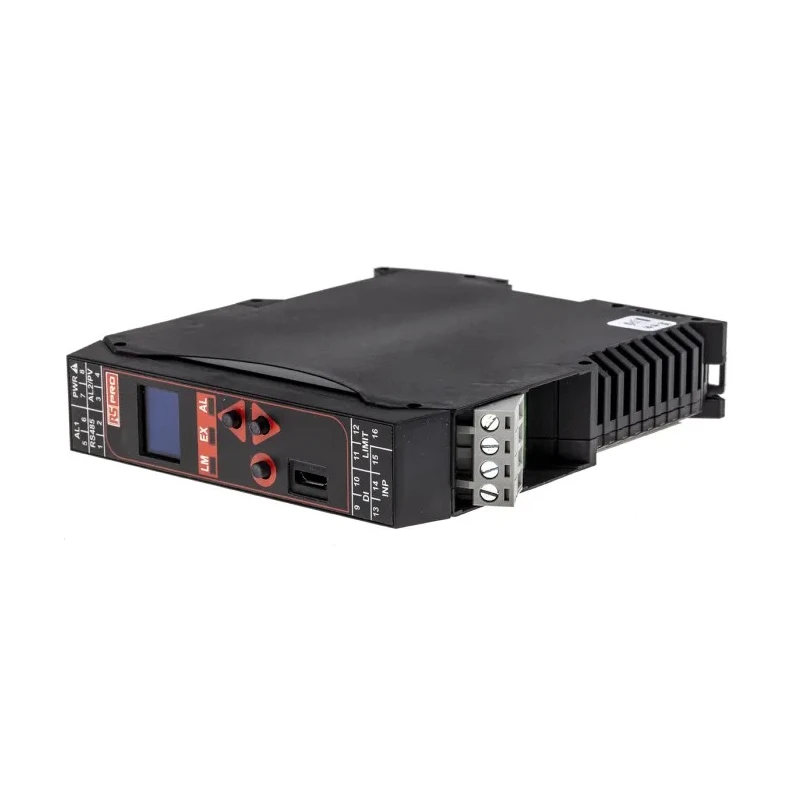

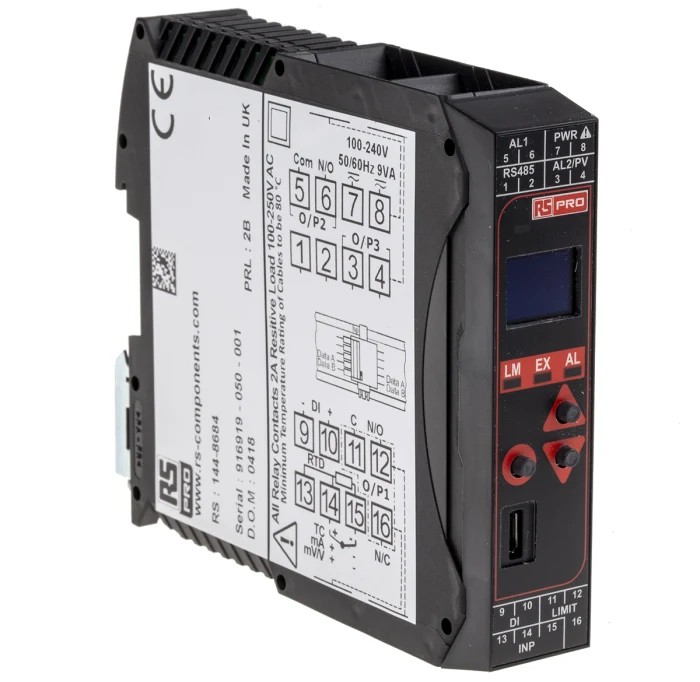

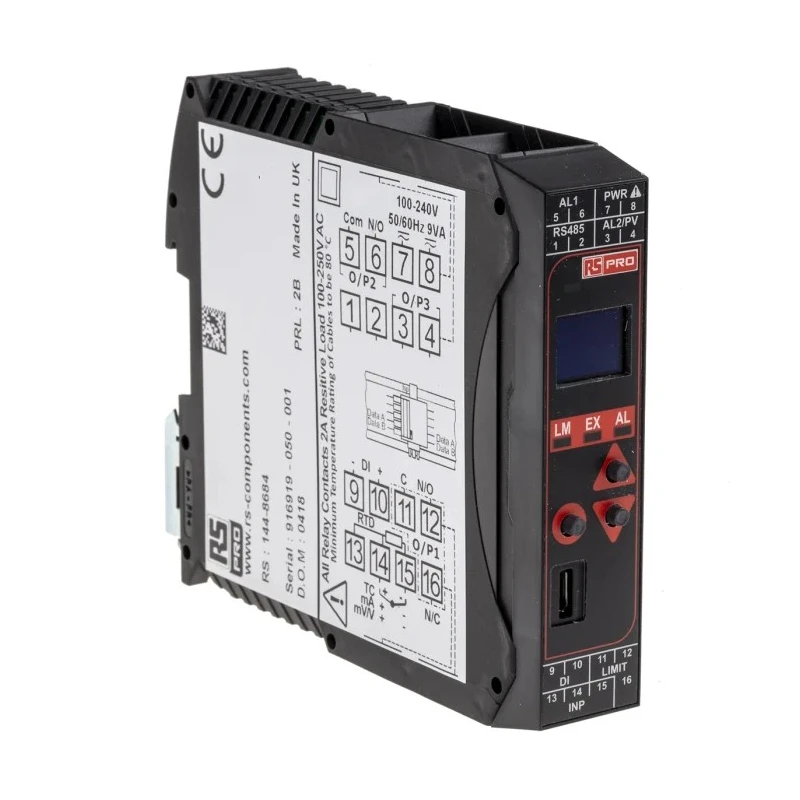

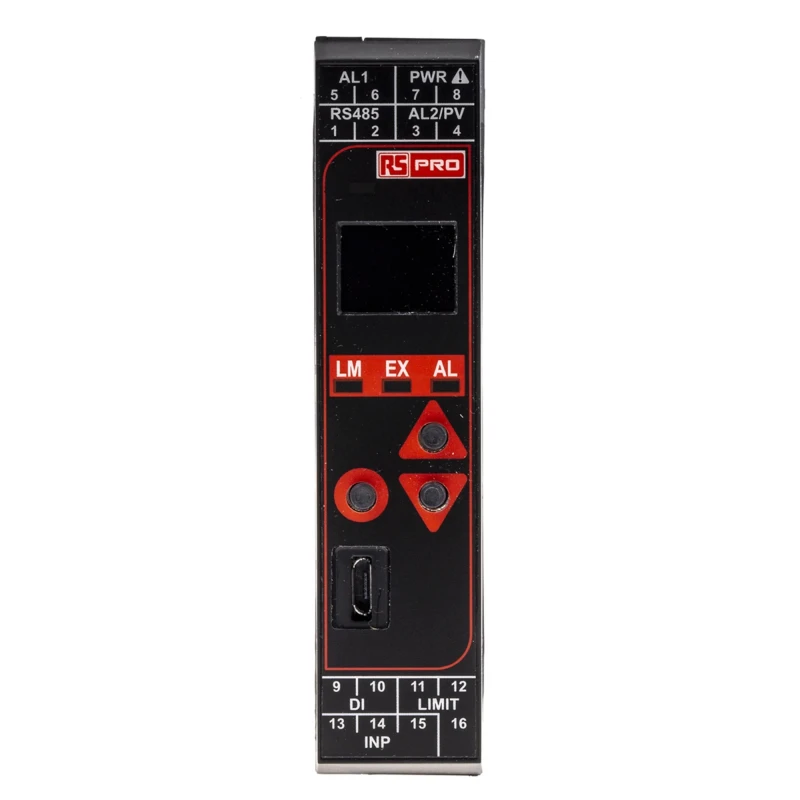

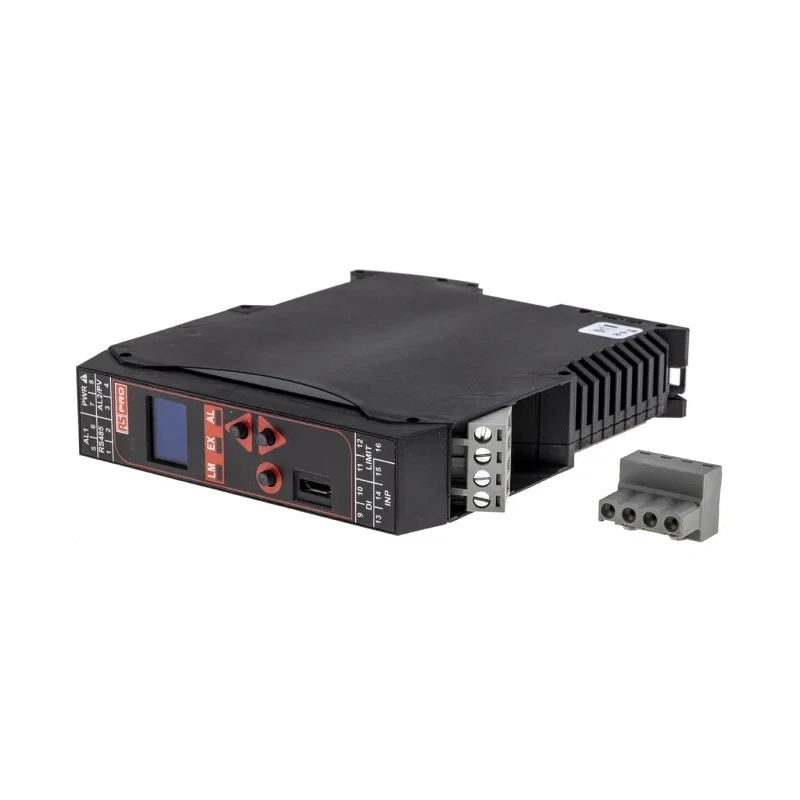

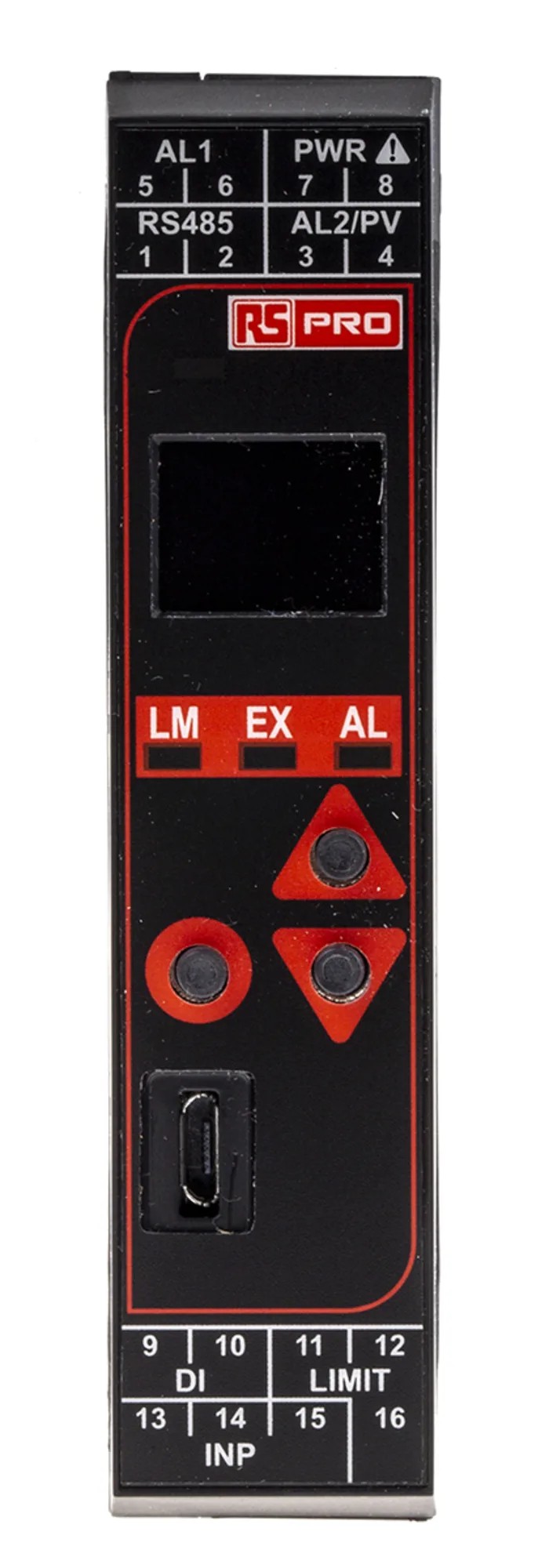

RS PRO DIN Rail PID Temperature Controller 3 Input 2 Output Relay 24V AC OLED Display 144-8684

RS PRO 144-8684 DIN Rail PID Temperature Controller offers precise and reliable temperature management for industrial, manufacturing, process control, and automation applications. It is engineered with a clear OLED display and simple 3-button navigation to facilitate fast configuration and setup. This controller features universal input options compatible with a variety of sensor types including thermocouples J, K, C, R, S, T, B, L, N, DC current, DC voltage, and RTD inputs.

Its 2 relay outputs can handle currents up to 2A, suitable for controlling heating or cooling devices. Equipped with RS485 Modbus RTU communication, it integrates seamlessly with industrial control systems enabling digital diagnostics and status monitoring. The compact DIN rail mount form factor with IP20 protection allows easy installation into electrical control panels. Operating temperature ranges from 0°C to 55°C make it adaptable for diverse industrial environments.

Additional features include built-in limit alarms for high, low, and deviation thresholds, providing valuable secondary temperature protection and ensuring safe operation. The device complies with major international standards including EN61010-1, EN61326, UL61010-1, and CE marking, attesting to its quality and safety.

This RS PRO PID Temperature Controller is ideal for industries requiring precise temperature regulation such as manufacturing lines, HVAC systems, laboratory equipment, and water treatment plants. Its reliability and versatile input compatibility make it a smart choice for professional process control engineers.

Equipped with an easy-to-read OLED display and 3-button operation for quick navigation. Supports universal inputs including thermocouples of various types, DC current, DC voltage, and RTD sensors. Provides 2 relay outputs with up to 2A maximum current rating for reliable switching.

Features RS485 Modbus RTU communication for integration and diagnostics. Compact DIN rail mounting with IP20 protection suitable for industrial control panels. Includes limit, high/low, and deviation alarms for secondary temperature protection.

Operating temperature range from 0°C to 55°C. Complies with EN61010-1, EN61326, UL61010-1, and CE safety standards. Explore more professional Temperature Controllers and PID devices in the measuring and testing instruments category on EnvMart for customized industrial applications.
