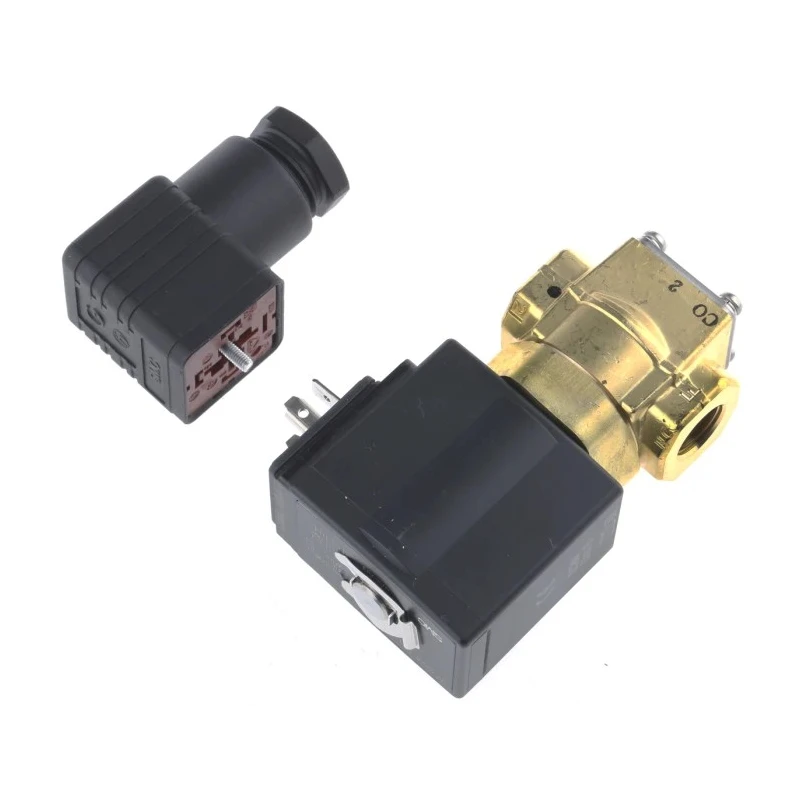

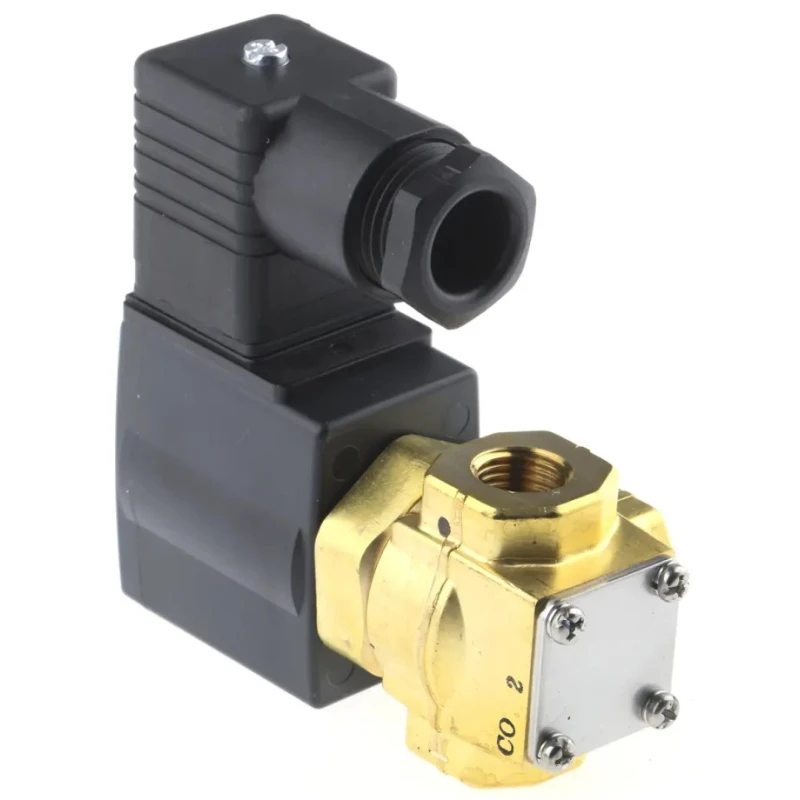

SMC Solenoid Valve, 3 Port, Common, 24V DC, 1/4 in G Brass Body VX3224-02F-5D1

Free Delivery in India | Lowest Global Shipping Charges

SMC Solenoid Valve, 3 Port, Common, 24V DC, 1/4 in G Brass Body VX3224-02F-5D1



Category Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	France
Brand	SMC
Body Material	Brass
Maximum Operating Pressure	10 bar
Model	VX3224-02F-5D1
Series	VX32
Number Of Ports	3
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Orifice Diameter	2.2mm
Supply Voltage	24V dc
Inlet Port Size	1/4 in G
Default Valve Position	Common
SMC Solenoid Valve VX3114-01F-3DR1, 3 Port, Common, 110V ac 1/8 in GBrand	SMC
SMC Solenoid Valve VX3224A-02F-5D1, 3 Port, Common, 24V 1/4 in GBrand	SMC

Key Features

Direct acting solenoid valve suitable for air, oil, water, and steam applications.
Compact and lightweight design ensures easy installation and replacement without piping changes.
DIN electrical connection featuring Class B and Class H coil options.
Maximum operating pressure of 10 bar with operating temperature range from -20°C to 60°C.
IP65 coil enclosure provides enhanced protection against dust and water.
Orifice diameter measures 2.2 mm to ensure efficient fluid control.
Seals available in NBR, FKM, or EPDM for application versatility.
Manufactured in France ensuring quality and reliability.

Product Description

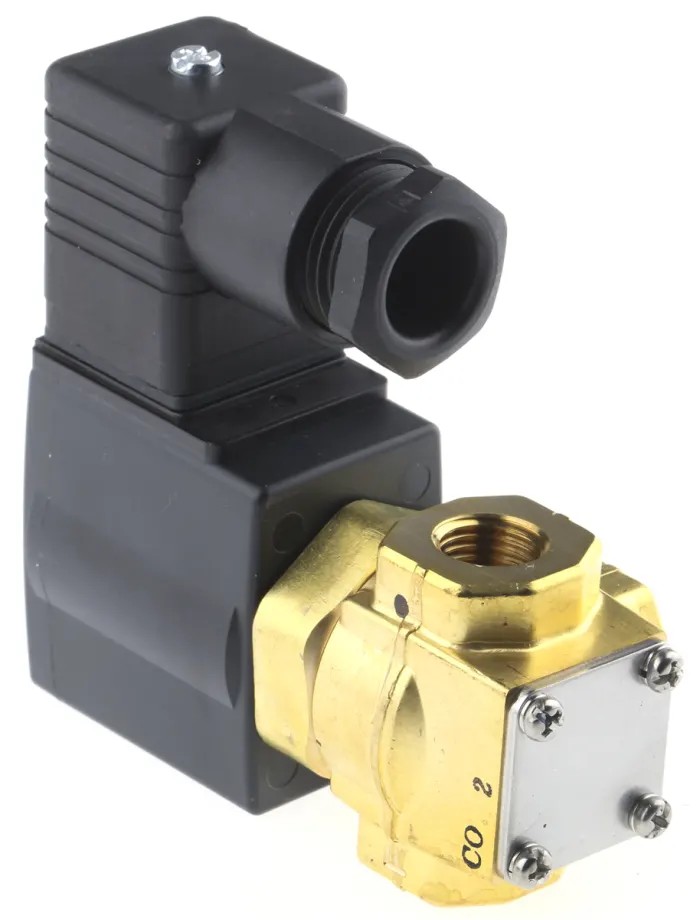

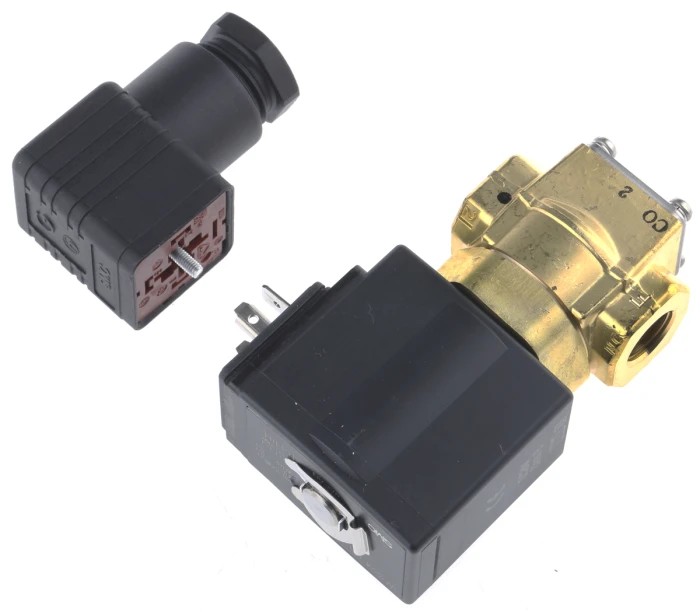

SMC VX3224-02F-5D1 is a direct acting three port solenoid valve designed for industrial fluid power control applications such as air, oil, water, and steam. It is engineered to allow valve replacement without altering existing piping, aiding maintenance efficiency. The valve features a brass body with a 1/4 inch G inlet port, suitable for medium pressure environments up to 10 bar.

The valve operates at 24V DC supply voltage and includes an IP65 coil enclosure, protecting it from dust and moisture ingress, thus enhancing durability in demanding industrial settings. DIN electrical connections with Class B and Class H coil options are offered for flexibility in operational environments. The valve comes fitted with seals available in NBR, FKM, or EPDM material to cater to various fluid compatibility requirements.

Operating temperature range extends between -20°C to 60°C, making it suitable for a broad range of temperature-sensitive applications. Its compact and lightweight design ensures ease of installation and replacement with minimal downtime. The 2.2 mm orifice diameter facilitates efficient fluid passage, balancing flow rate and control accuracy.

This product is manufactured in France, highlighting its quality and adherence to international manufacturing standards. It is widely utilized in industrial, laboratory, manufacturing, water treatment, HVAC, and agricultural sectors for reliable fluid control.

Direct acting solenoid control for air, oil, water, and steam applications. Brass body construction for corrosion resistance and durability. Compact design promotes easy installation and maintenance. 24V DC supply voltage with IP65 coil enclosure for robust protection.

DIN connectors with coil classes B and H available. Orifice diameter of 2.2mm for optimized flow. Wide operating temperature range from -20°C to 60°C. Seals made of NBR, FKM, or EPDM for various fluid compatibilities. Explore the Industrial Valves & Valve Fittings category at EnvMart for more high-quality Solenoid Valves and related components designed to meet rigorous industrial standards.
