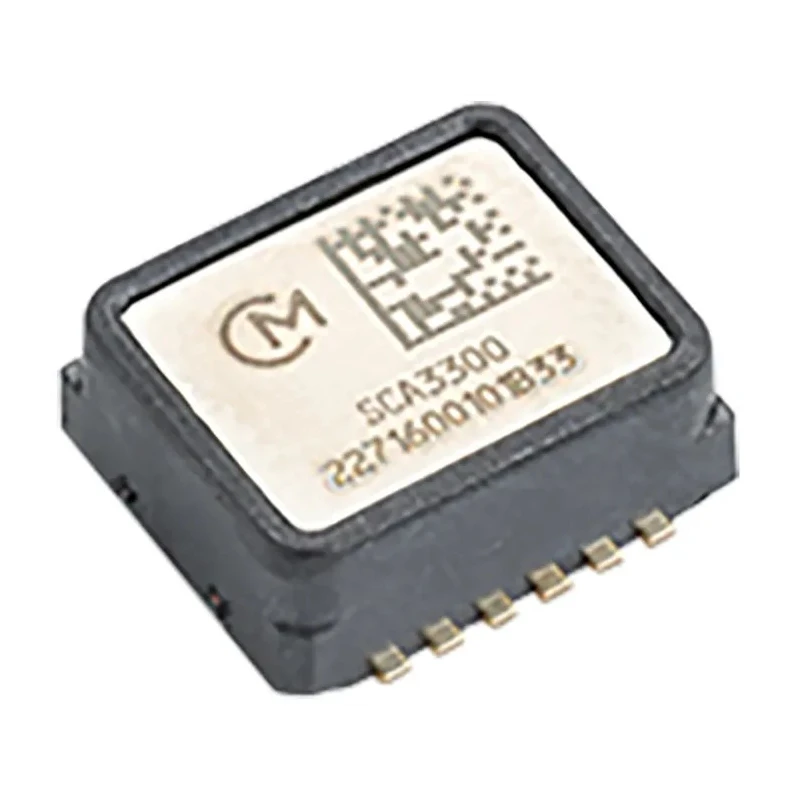

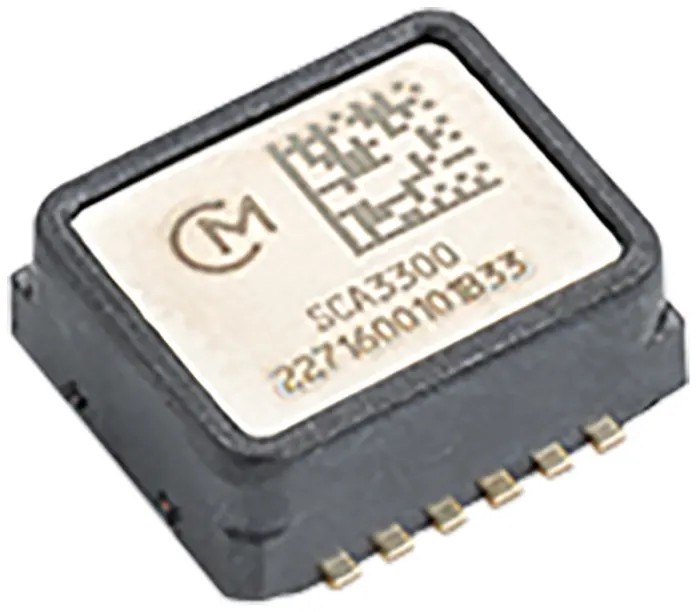

Murata 3 Axis Capacitive 3D MEMS Surface Accelerometer SPI Interface 3 V 3.6V, 12-Pin Sensor SCA3300-D01-1
Specifications
| Country of Origin | Finland |
|---|---|
| Brand | Murata |
| Height | 3.3mm |
| Length | 8.6mm |
| Model | SCA3300-D01-1 |
| SENSITIVITY | 5400LSB/g |
| Technology | Capacitive 3D MEMS |
| Sensor Type | Accelerometer |
| Width | 7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | DFL |
| Minimum Operating Temperature | -40°C |
| Number of axis | 3 |
| Interface Type | SPI |
| Pin Count | 12 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Maximum Frequency Response | 88Hz |
| Minimum Frequency Response | 10Hz |
| Murata accelerometers include failure detection | digitally activated self-test, calibration memory parity or check sum check and continuous connection failure detection |
Key Features
- Operates with a supply voltage range from 3 V to 3.6 V for flexible power management.
- Offers reliable performance within a temperature range of -40°C to 125°C.
- Features a 12-pin dual flat line (DFL) surface mount package suitable for reflow soldering.
- Delivers frequency response bandwidth from 10 Hz to a maximum of 88 Hz, ensuring accurate motion detection.
- Includes integrated on-chip EEPROM memory storing calibration coefficients for enhanced accuracy.
- Built with over-damped frequency response for excellent operation in harsh vibration environments.
- Equipped with digitally activated self-test and continuous failure detection features to ensure sensor reliability.
- Compact dimensions of 8.6 mm length, 7 mm width, and 3.3 mm height enable easy PCB integration.
Product Description
Murata SCA3300-D01-1 is a high-performance 3 Axis capacitive 3D MEMS accelerometer sensor designed for surface mounting using a 12-pin DFL package. Operating between 3 V and 3.6 V, this sensor is capable of measuring precise accelerations with an excellent frequency response from 10 Hz to 88 Hz across a broad temperature range of -40°C to 125°C.
The sensor incorporates a dual-element sensing system with over-damped frequency response, providing robust performance in industrial, automotive, and harsh environments characterized by vibration and temperature cycling. Its digital SPI interface enables easy integration into complex systems requiring reliable motion sensing.
Featuring an on-chip EEPROM that stores calibration coefficients, the SCA3300-D01-1 maintains unit interchangeability and long-term measurement accuracy. Its compact and low-profile 8.6 mm by 7 mm by 3.3 mm package allows seamless PCB assembly via surface mount and reflow soldering processes.
Murata accelerometers include advanced failure detection capabilities such as digitally activated self-test, EEPROM calibration memory parity checks, and continuous connection failure monitoring, ensuring operational safety and reliability in critical applications.
Operates at supply voltages 3 V to 3.6 V. 3-axis capacitive 3D MEMS technology sensors. Frequency response ranges from 10 Hz to a maximum of 88 Hz. 12-pin DFL surface mount package measuring 8.6 mm length by 7 mm width by 3.3 mm height.
Wide temperature operating range from -40°C to 125°C. Includes on-chip EEPROM calibration memory for unit interchangeability. Advanced failure detection with self-test and continuous connection diagnostics.
This accelerometer sensor is well-suited for industrial machinery monitoring, automotive safety systems, laboratory instrumentation, and other commercial electronic applications requiring precise motion detection and reliability under diverse operating conditions.
