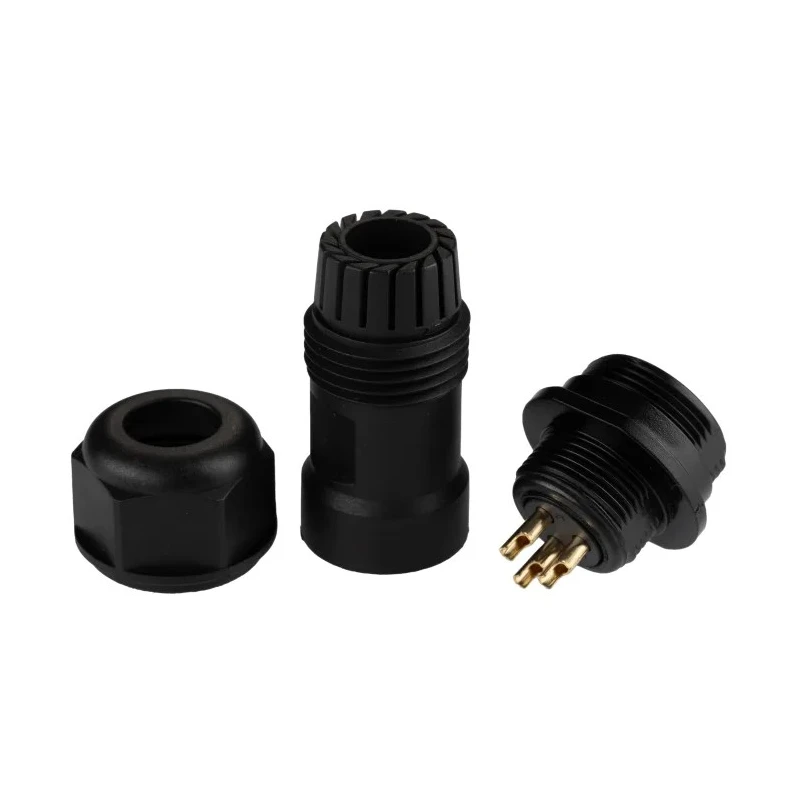

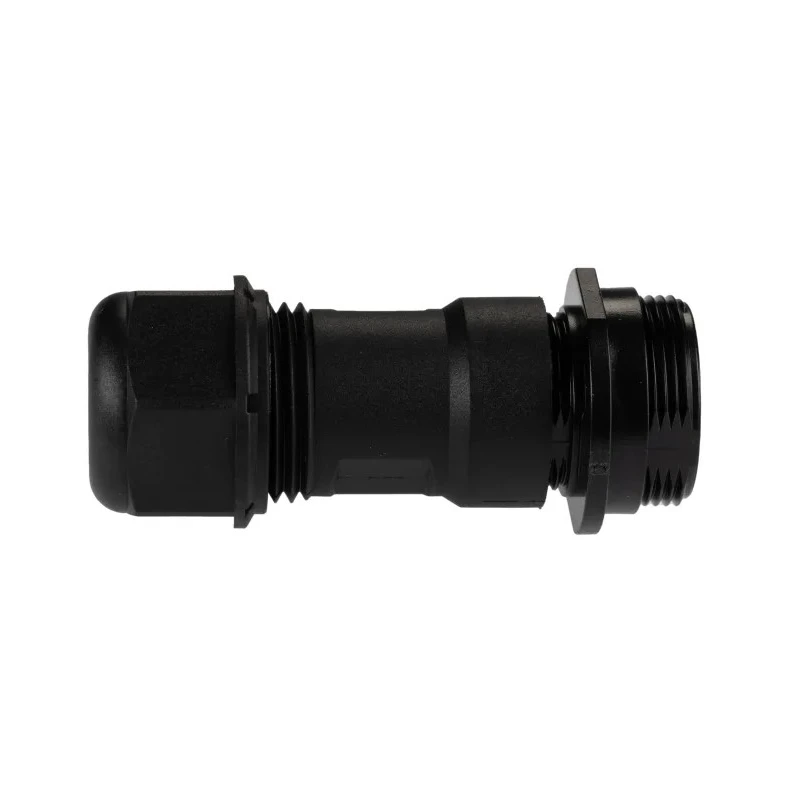

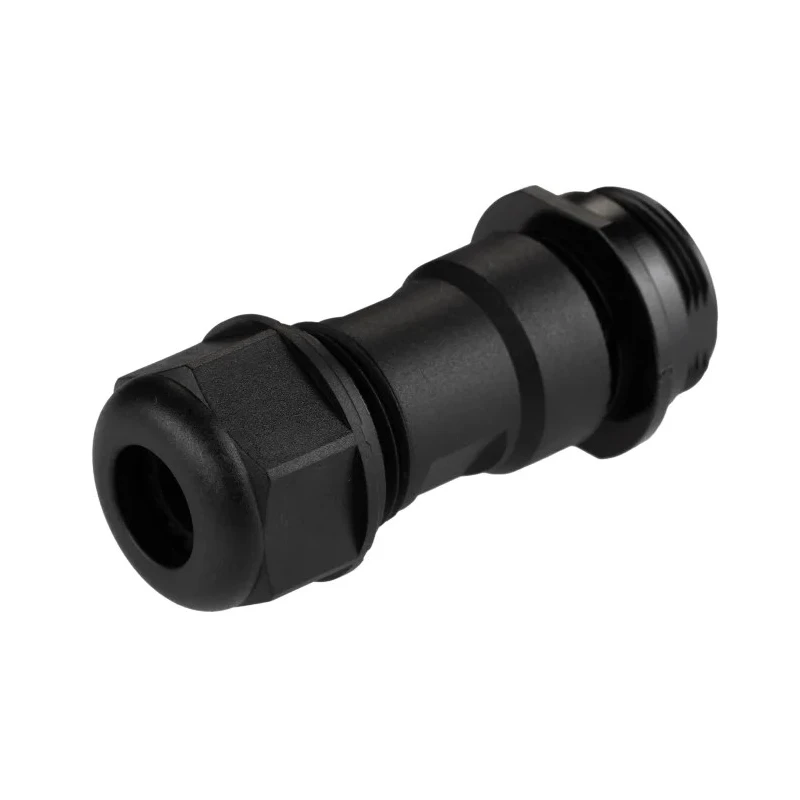

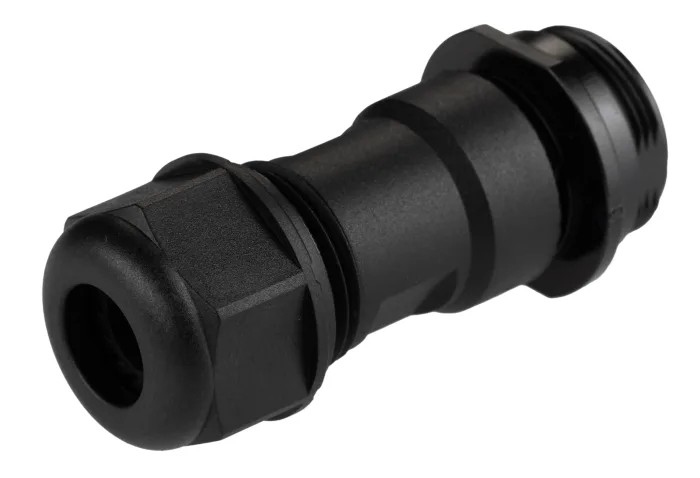

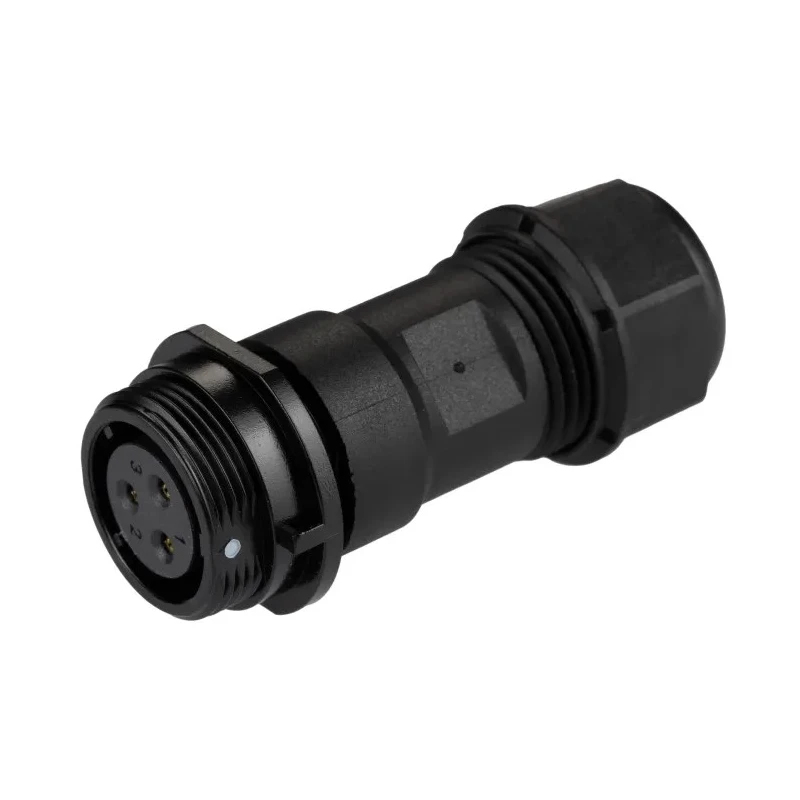

RS PRO Circular Connector, 3 Contacts, Cable Mount, Socket Female, Threaded Mating, IP68, 500V, 10A, Standard Size 144-4152

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Circular Connector, 3 Contacts, Cable Mount, Socket Female, Threaded Mating, IP68, 500V, 10A, Standard Size 144-4152

Name: RS PRO Circular Connector, 3 Contacts, Cable Mount, Socket Female, Threaded Mating, IP68, 500V, 10A, Standard Size 144-4152
Brand: RS PRO
SKU: 146565
Price: 17.37 USD
Availability: InStock



Category Industrial Circular Connector Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	500V
Brand	RS PRO
Orientation	Straight
Current	10A
Model	144-4152
IP Rating	IP68
Mount Type	Cable
Housing Material	Polyamide 66, Polycarbonate
Contact Material	Brass
Series	RS PRO
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Pole Format	3
Contact Plating	Gold
Number of Contacts	3
Contact Gender	Female
Shell Size	17 mm
Mating Type	Threaded
Connector Size	Standard
Plug/Socket	Socket

Key Features

The connector supports a voltage rating of 500V and a current of 10A.
It has a standard size shell size of 17 mm suitable for industrial applications.
The housing is made from durable polyamide 66 and polycarbonate materials.
Features gold-plated brass contacts for reliable conductivity and corrosion resistance.
Operates effectively within -40°C to 85°C temperature range.
The connector is designed for inline cable to cable connection with solder termination.
The coupling is threaded ensuring secure and stable connections.
Its IP68 rating makes it ideal for harsh environments including outdoor, marine, and medical device applications.

Product Description

RS PRO 144-4152 Circular Connector is a robust industrial-grade cable mount socket female connector with 3 contacts. Rated for 10A current and 500V voltage, it is designed to withstand demanding electrical and environmental conditions. Its IP68 waterproof rating ensures excellent protection against dust and water ingress, making it highly suitable for use in harsh environments including outdoor security, medical devices, communications equipment, and marine systems.

The connector features a durable housing constructed of polyamide 66 and polycarbonate, combined with gold-plated brass contacts to ensure superior conductivity and corrosion resistance. The threaded coupling and straight orientation provide reliable connectivity and easy installation. Operating temperature ranges from -40°C to 85°C, making it versatile across diverse industrial applications.

Solder termination allows secure inline cable to cable connections, while the standard shell size of 17 mm matches industry standards for circular connectors. Manufactured under the RS PRO series, this product represents dependable quality and performance in the electronics and electrical connector market.

The connector supports a voltage rating of 500V and a current of 10A. Housing materials include polyamide 66 and polycarbonate, ensuring durability. Gold-plated brass contacts provide excellent conductivity and corrosion resistance.

IP68 rated waterproof connector suited for harsh industrial environments. The coupling mechanism is threaded for secure mating. Operates reliably within a temperature range of -40°C to 85°C. Designed for cable mount with solder termination.

Straight orientation facilitates ease of wiring. Standard size 17 mm shell dimension. Suitable for industrial, marine, communications, and medical device applications. Explore more circular connectors and industrial components at EnvMart to find compatible parts and solutions tailored for your engineering needs.
