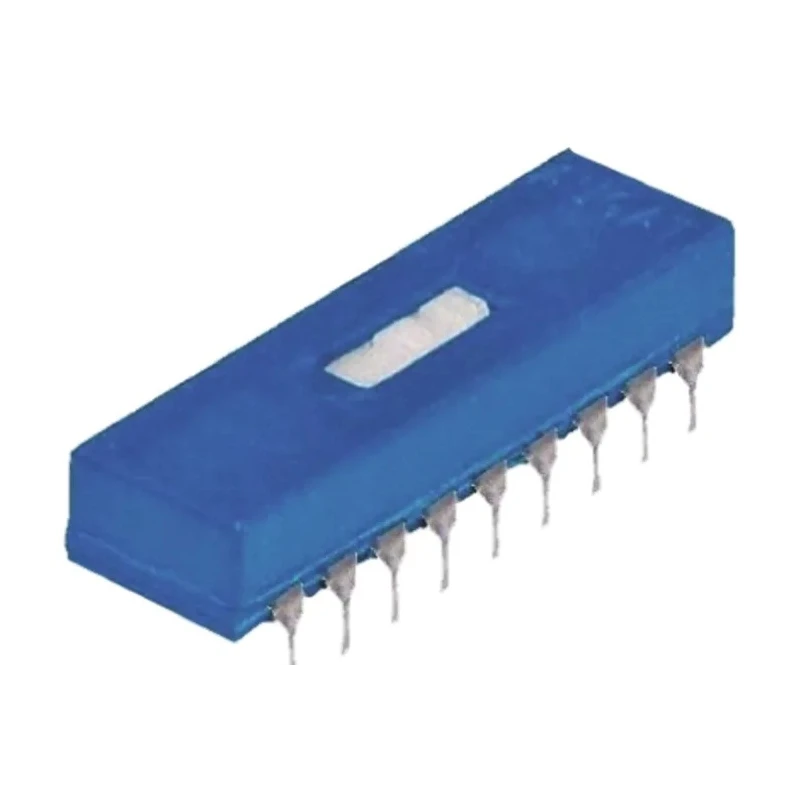

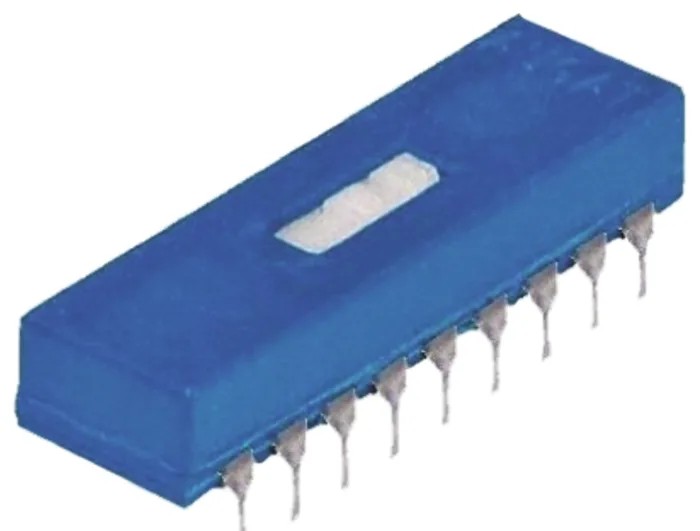

TE Connectivity PCB Slide Switch 4PDT Latching 300mA Polyphenylene Ether ASF42G04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature Range | -40°C +80°C, making them particularly suited to harsh environments |
| Length | 17.78mm |
| Model | ASF42G04 |
| Depth | 7.35mm |
| Width | 7.35mm |
| Mount Type | PCB |
| Series | ASF |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 4PDT |
| Switch Configuration | On-On-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | UL, RoHS |
| Switch Operation | Latching |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 300mA |
| Mechanical Life | 15000Cycles |
| Electrical Life | 10000 operations |
| Actuator Material | Polyphenylene Ether |
Key Features
- Operates with latching switch action for stable circuit control.
- Contact current rating of 300mA suitable for low power applications.
- Constructed with durable polyphenylene ether actuator material.
- Supports 4 pole double throw (4PDT) contact configuration for multiple circuit switching.
- Designed for PCB mounting with solder-type terminals.
- Compact dimensions of 17.78mm length and 7.35mm width and depth.
- Electrical life rated for 10,000 operations and mechanical life for 15,000 cycles.
- Operating temperature range from -40°C to 80°C for harsh environment use.
Product Description
TE Connectivity ASF42G04 PCB Slide Switch 4PDT Latching offers dependable switching operation with a contact rating of 300mA and a compact form factor measuring 17.78mm by 7.35mm by 7.35mm. Designed for PCB mounting with solder terminals, this slide switch uses a durable polyphenylene ether actuator for long-lasting performance.
This switch features 4 pole double throw (4PDT) contact configuration allowing complex circuit control with latching operation. It supports electrical life of 10,000 operations and mechanical life of 15,000 cycles, ensuring reliability in industrial and instrumentation applications.
Operating in a wide temperature range from -40°C to 80°C, the ASF42G04 is ideal for harsh environments encountered in telecommunications and test and measurement equipment.
The device complies with UL and RoHS standards, providing assurance of quality and environmental safety. The compact size and robust build make it suitable for PCBs in electronics requiring precise and reliable switching.
Operates with latching switch action for stable circuit control. Contact current rating of 300mA suitable for low power applications. Constructed with durable polyphenylene ether actuator material. Supports 4 pole double throw (4PDT) contact configuration for multiple circuit switching.
Designed for PCB mounting with solder-type terminals. Compact dimensions of 17.78mm length and 7.35mm width and depth. Electrical life rated for 10,000 operations and mechanical life for 15,000 cycles. Operating temperature range from -40°C to 80°C for harsh environment use.
Complies with UL and RoHS standards ensuring safety and environmental compliance. Ideal for instrumentation, test and measurement electronics, and telecom equipment.
Suitable for use in electronics manufacturing, laboratory instrumentation, telecommunications, and industrial control equipment. Explore more Slide Switches and electrical components on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 300mA, making it suitable for low power applications.
This model has compact dimensions of 17.78mm in length and 7.35mm in both width and depth.
It is designed for PCB mounting and features solder-type terminals for connection.
The electrical life of this switch is rated for 10,000 operations, ensuring reliable performance over time.
The mechanical life of the ASF42G04 is rated for 15,000 cycles, indicating its durability in use.
This model features a 4 pole double throw (4PDT) contact configuration, allowing for multiple circuit switching.
The actuator of this switch is constructed from durable polyphenylene ether material.
It complies with UL and RoHS standards, ensuring quality and environmental safety.
The ASF42G04 operates with a latching switch action, providing stable circuit control.
It is ideal for use in electronics manufacturing, laboratory instrumentation, telecommunications, and industrial control equipment.
The maximum contact DC voltage for this model is 20V dc, suitable for various low power applications.
