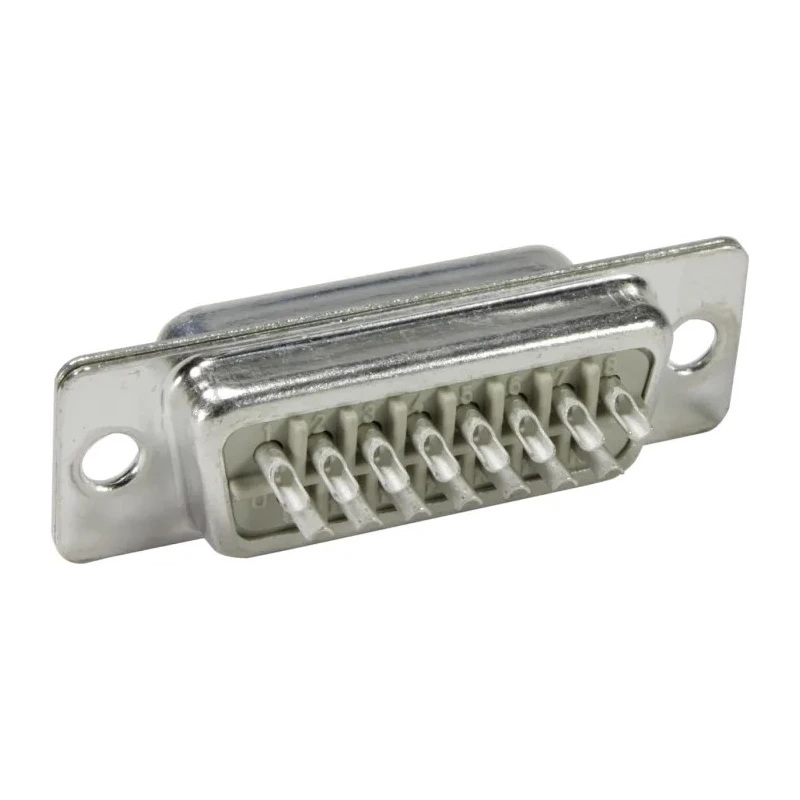

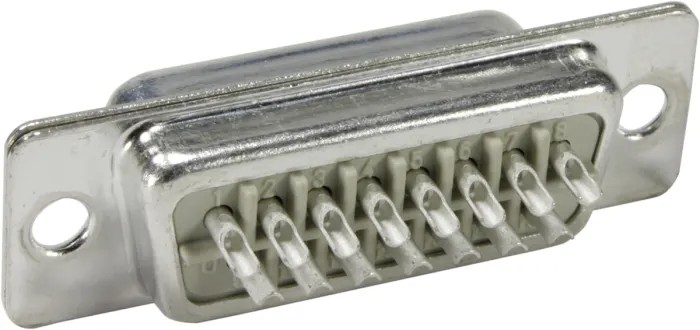

HARTING SV TSDC 25 Way Straight Panel Mount D-Sub Connector with Flange Male 1kV 7.5A 09670255615

HARTING 09670255615 SV TSDC 25 Way Straight Panel Mount D-Sub Connector delivers reliable and durable electrical connectivity suitable for industrial, manufacturing, and electronic assembly applications. Featuring 25 male copper alloy contacts with steel plating, this connector supports a continuous current of 7.5 amperes and withstands voltages up to 1kV. The fibreglass reinforced thermoplastic housing provides robust mechanical strength and excellent insulation properties.

This panel mount D-Sub connector uses a flange mounting style with 3.1 mm holes, ensuring strong panel attachment and easy integration into electronic equipment. The solder cup termination type enables secure wire connections, ideal for custom cable assemblies. Its straight orientation is optimized for standard linear cable routing and panel layouts.

The connector is designed to operate reliably in harsh temperature environments ranging from -55°C to 125°C. It complies with industry safety standards UL 94-V0 for flame retardance and is RoHS certified, confirming its environmental safety compliance. This makes it suitable for use in industrial power distribution, control panels, test equipment, and other professional electronic devices.

Package contents include one HARTING SV TSDC 25 Way Straight Panel Mount D-Sub Connector with flange male configuration. This connector is part of the proven SV TSDC series from HARTING, recognized for its robust construction and high-quality performance.

The connector features 25 contacts supporting a rated current of 7.5A. Constructed with a fibreglass reinforced thermoplastic housing for durability. Equipped with robust copper alloy male contacts that are steel plated for corrosion resistance.

Panel mount type with a flange and 3.1 mm mounting holes ensures secure installation. Designed to operate over a temperature range from -55°C to 125°C. Offers a voltage rating of 1kV suitable for power applications. Solder cup termination facilitates reliable and robust cable connections.

The straight orientation accommodates standard wiring layouts. Meets UL 94-V0 flame retardant standards and is RoHS compliant ensuring safety and environmental regulation compliance.

Ideal for industrial control systems, power connectors, electronic enclosures, and other harsh environment applications where reliable signal and power transmission are critical. Explore the extensive HARTING connector range for compatible accessories and components on EnvMart.
