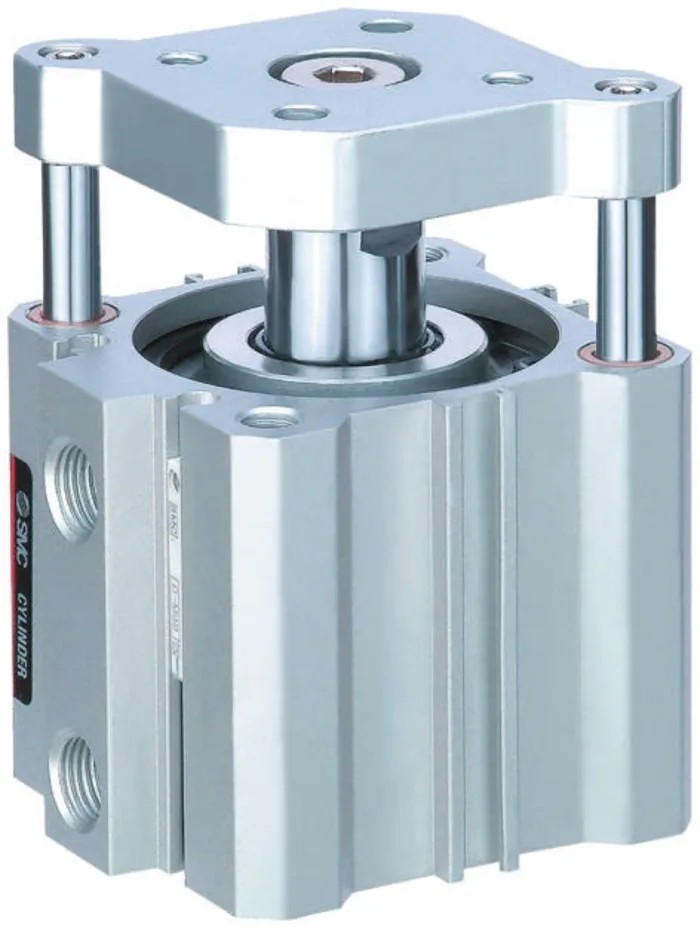

SMC Pneumatic Guided Cylinder 12mm Bore Aluminium Alloy Body Double Acting Through Hole Mount CDQMB12-20

SMC CDQMB12-20 Pneumatic Guided Cylinder is a compact, high-performance actuator designed for industrial pneumatic applications requiring guided linear motion with enhanced lateral load capacity. Featuring a 12mm bore and a 20mm stroke length, this double acting cylinder utilizes an aluminium alloy body with a hard anodized finish to provide strength, corrosion resistance, and lightweight handling.

This model is part of the CQM series, known for its compact size and improved lateral load resistance, which is two to four times greater than standard cylinders. Its through hole mount design allows easy and secure installation, and the slide bearing guide type offers smooth, precise operation under varying loads. The cylinder includes rubber cushioning to reduce shock and noise at the ends of the stroke, improving durability and operational quietness.

The maximum operating pressure of 1 MPa and a maximum piston speed of 500 mm/s ensure this pneumatic cylinder delivers reliable performance across a wide range of industrial environments. It works efficiently between minimum and maximum operating temperatures of -10°C to 70°C, making it suitable for various applications including manufacturing automation, packaging, assembly lines, and laboratory equipment.

This non-rotatable guided cylinder is ideal for tasks that require accurate and stable linear motion with resistance to side loads. The compact height and width of 25mm, along with a length of 51.5mm and a weight of only 69 grams, facilitate integration into tight spaces without compromising strength.

Manufactured in China, the SMC CDQMB12-20 guided cylinder is designed for ease of maintenance and consistent operational efficiency in pneumatic systems. Equipped with a robust aluminium alloy body for durability and lightweight handling.

Designed with a 12mm bore diameter and 20mm stroke length for precise pneumatic actuation. Features double acting operation for controlled movement in both directions. Mount type is through hole ensuring easy installation and compatibility with various applications.

Includes rubber cushioning for smooth operation and noise reduction. Maximum operating pressure is rated at 1 MPa for reliable performance. Guide type is slide bearing providing excellent lateral load resistance. Operates efficiently within a temperature range of -10°C to 70°C.

Compact dimensions with height and width of 25mm, length of 51.5mm. Lightweight design at 69 grams ideal for industrial automation and manufacturing use. Explore EnvMart's comprehensive selection of Pneumatic Guided Cylinders and SMC automation products to find the best fit for your industrial and manufacturing needs.
