Finder Digital 12 DIN Rail Time Switch, 2-Channel, 230V AC, DPDT Contact Configuration 12.22.8.230.0000

Free Delivery in India | Lowest Global Shipping Charges

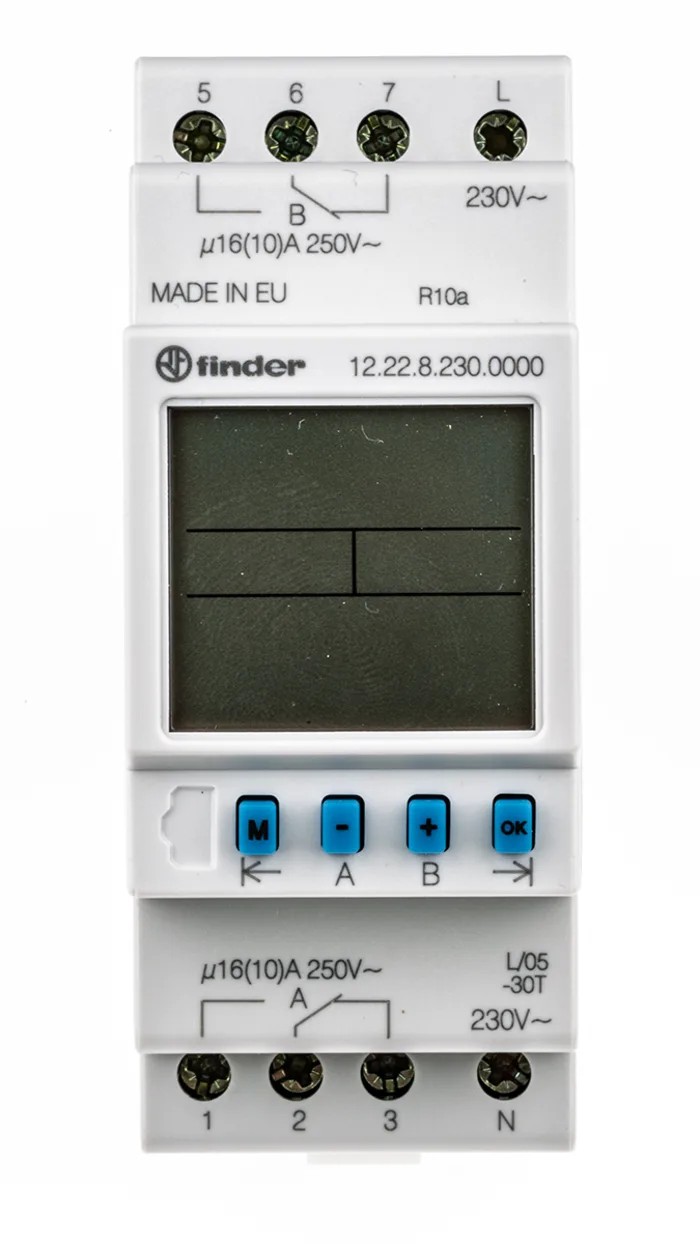

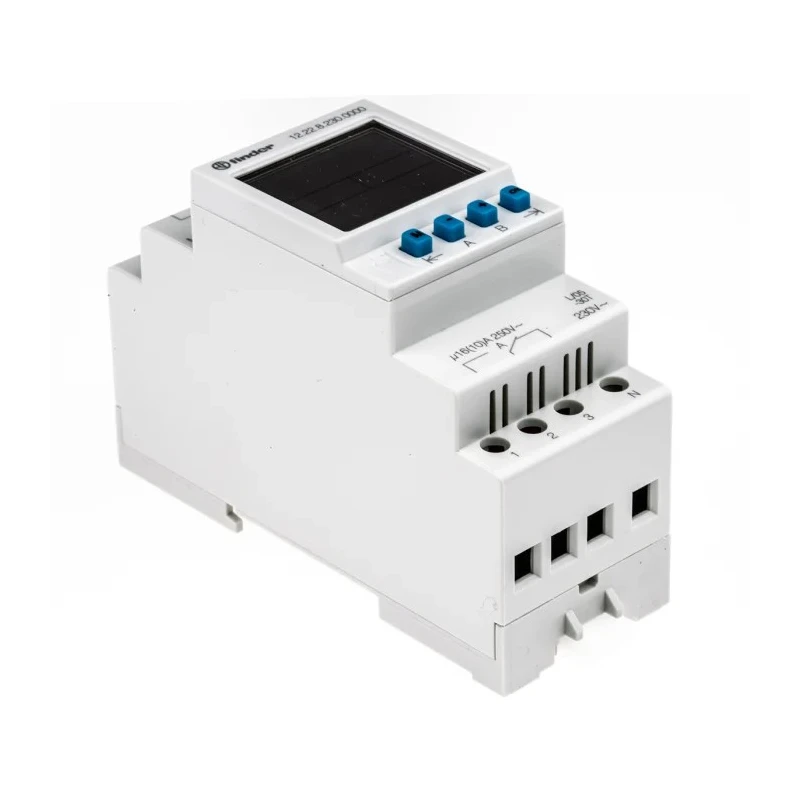

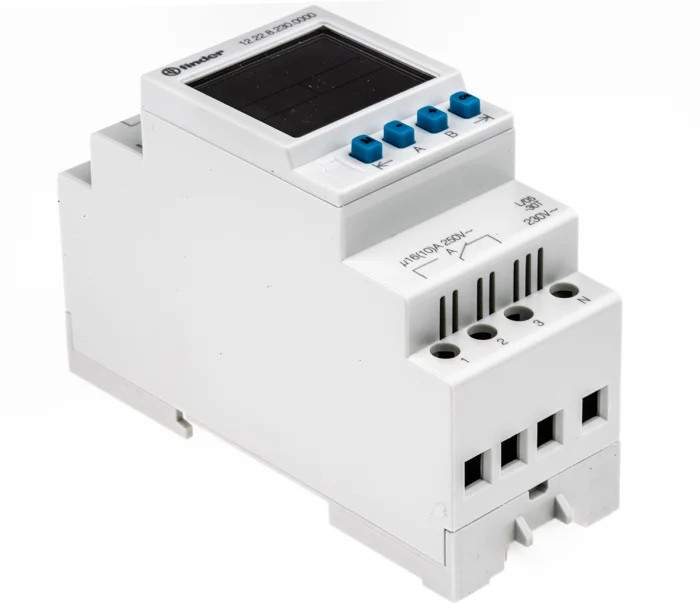

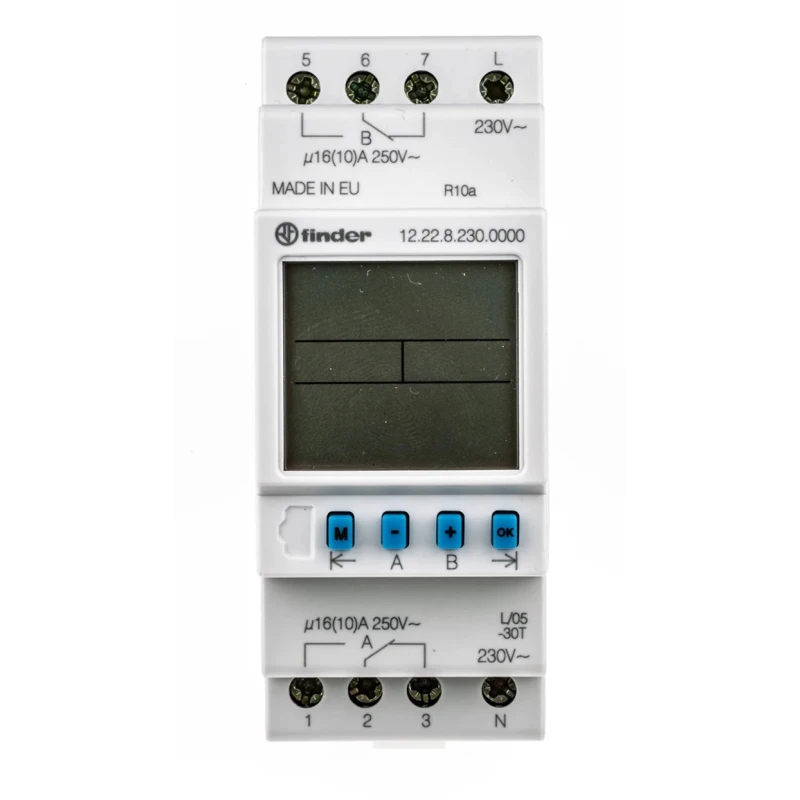

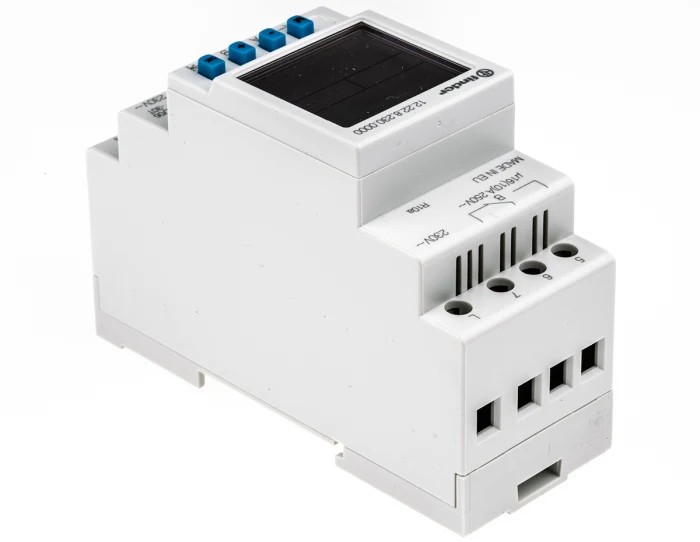

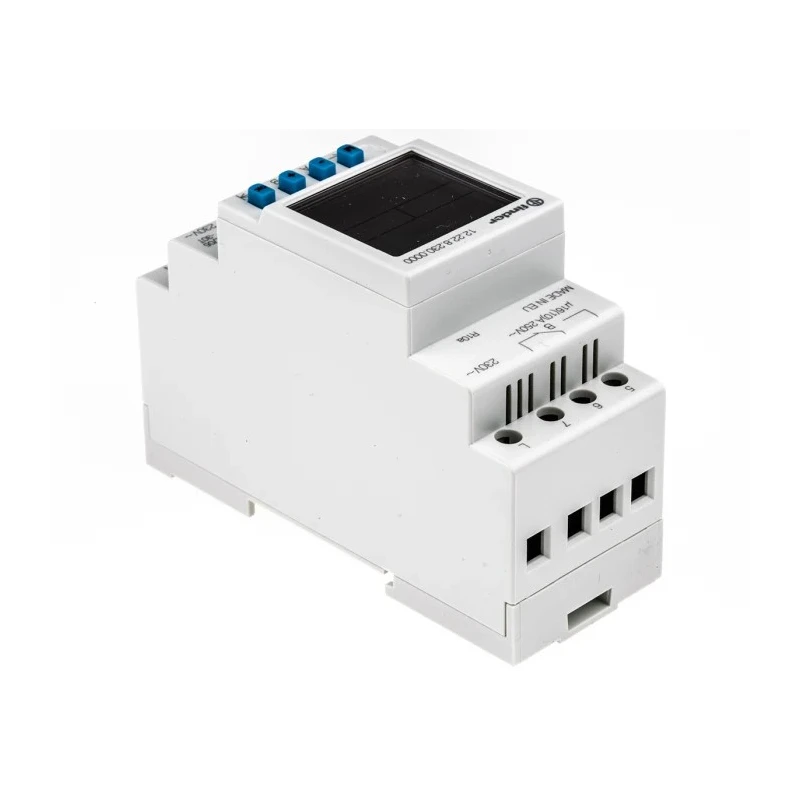

Finder Digital 12 DIN Rail Time Switch, 2-Channel, 230V AC, DPDT Contact Configuration 12.22.8.230.0000

Name: Finder Digital 12 DIN Rail Time Switch, 2-Channel, 230V AC, DPDT Contact Configuration 12.22.8.230.0000
Brand: FINDER
SKU: 145893
Price: 187.67 USD
Availability: InStock



Category Time Switch Brand FINDER Condition New

Specifications

Country of Origin	Italy
Brand	Finder
Battery Life	6year
Height	90mm
Depth	60mm
Series	12
Contact Configuration	DPDT
Sub Type	Digital
Terminal type	Screw
Number Of Channels	2
Standards/Approvals	EAC, CE, RoHS
Maximum Supply Voltage	230V ac
Units Measured	Minutes
Memory Spaces	30
Segment Length	1min
Finder Digital DIN Rail Time Switch 230 V ac, 2-ChannelBrand	Finder
Finder Digital with NFC 12 DIN Rail Time Switch, 2-Channel 230V ac/dcBrand	Finder

Key Features

The digital timer supports 2 independent channels for simultaneous load control.
Offers 30 memory spaces allowing flexible scheduling of multiple programs.
1-minute segment length ensures high scheduling accuracy.
DPDT contact configuration supports two separate circuit controls.
Long-lasting battery with 6 years expected life for reliable operation.
Compact design with 90mm height and 60mm depth fits standard 35mm DIN rails.
Ideal for controlling street lighting, car park illumination, and shop display lighting.
Suitable for school bell systems and managing heating and cooling in industrial setups.

Product Description

Finder 12.22.8.230.0000 Digital DIN Rail Time Switch is a versatile programmable timer with a 230V AC supply voltage, designed for precise control in industrial automation systems. Featuring two independent channels, it allows simultaneous and efficient management of multiple electrical loads.

This digital timer offers 30 memory spaces, enabling storage of multiple custom programs with a 1-minute segment precision for accurate scheduling. The DPDT contact configuration allows controlling two separate circuits, enhancing operational flexibility.

The compact unit measures 90mm in height and 60mm in depth, facilitating easy installation on the standard 35mm DIN rail enclosures. Its battery life of up to six years assures long-term dependable operation even during power outages.

Common industrial applications include management of streetlights, parking area illumination, school bell systems, and shop display lighting. Furthermore, it is ideal for regulating heating and cooling processes, and various automation tasks that require precise timed control.

Operating reliably within 0.85 to 1.1 times the nominal voltage ensures consistent performance across voltage variations typical in industrial environments. The dual channel feature reduces complexity by enabling the control of two separate loads with one device.

The digital Time Switch supports dual channel timer functions for efficient load management. Up to 30 programmable memory spaces enhance operational flexibility. Precise 1-minute segment length scheduling ensures accurate time management.

DPDT contact configuration allows control of two separate circuits. Compact 90mm height and 60mm depth design fits standard DIN rails. Long battery life of six years maintains reliable operation during outages. Designed for use in street lighting, school systems, and shop front lighting control.

Effective control of heating and cooling systems in commercial and industrial settings. Operates under a voltage range from 0.85 to 1.1 times the nominal 230V AC supply. Ideal for industrial automation requiring multiple timer settings and channels.

Explore the Electronics & Electricals category at EnvMart for more advanced automation control solutions from trusted brands like Finder.
