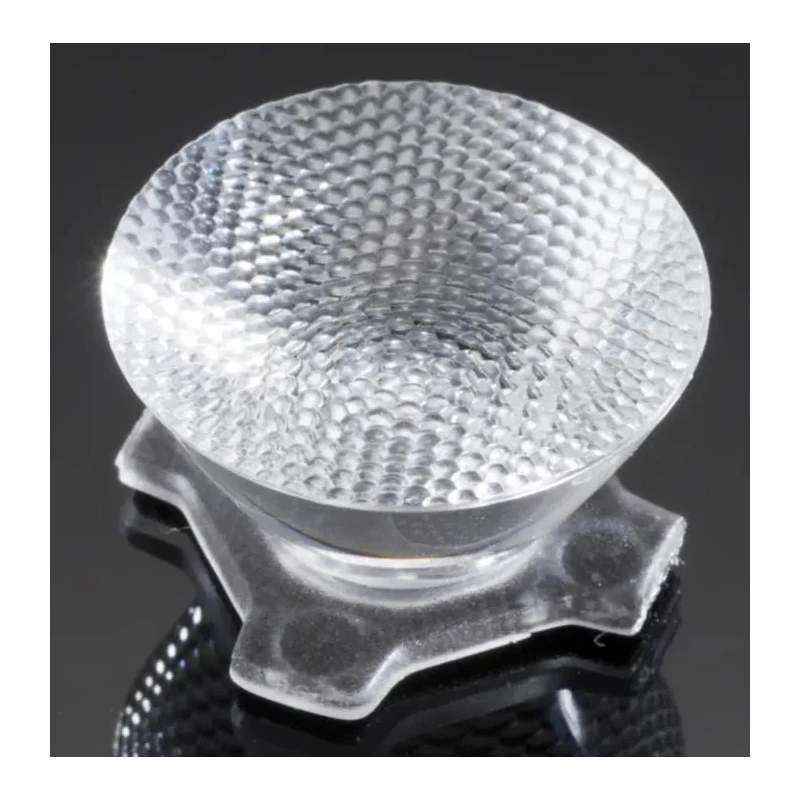

Ledil Heidi Series 1-Way LED Lens 27 to 29° Round Beam CA12536_HEIDI-M

Free Delivery in India | Lowest Global Shipping Charges

Ledil Heidi Series 1-Way LED Lens 27 to 29° Round Beam CA12536_HEIDI-M

Name: Ledil Heidi Series 1-Way LED Lens 27 to 29° Round Beam CA12536_HEIDI-M
Brand: Ledil
SKU: 110149
Price: 3.41 USD
Availability: InStock



Category LED Lighting Components Brand Ledil Condition New

Specifications

Country of Origin	China
Diameter	21.6mm
Brand	Ledil
Height	11.7mm
Model	CA12536_HEIDI-M
Series	Heidi
Viewing angle	27 to 29°
Lens Material	Polymethyl Methacrylate
For Use With	Cree XP-L, Lumileds LUXEON A, Lumileds LUXEON R, Lumileds LUXEON Rebel, Lumileds LUXEON Rebel ES, OSRAM OSLON SSL 150
Standards/Approvals	RoHS Compliant
Lens Shape	Round
Emission Pattern	Round
Lens Style	Round
Fixing Method	Pin
Number of LEDs Per Lens	1

Key Features

Constructed from optical grade Polymethyl Methacrylate for high UV and temperature resistance.
Designed for use with a single LED, compatible with Cree XP-L, Lumileds LUXEON A, R, Rebel, Rebel ES, and OSRAM OSLON SSL 150.
Round lens shape and style with a diameter of 21.6 mm and height of 11.7 mm.
Emits a uniform round beam with an emission pattern tailored for focused lighting applications.
Features a pin fixing method for secure installation.
RoHS compliant, ensuring it's free from hazardous substances.
Manufactured in China under strict quality controls.

Product Description

Ledil CA12536_HEIDI-M is a premium 1-way LED lens from the Heidi series, engineered to deliver a focused round beam with a viewing angle between 27 to 29 degrees. The lens is crafted from high-quality Polymethyl Methacrylate (PMMA), offering excellent optical clarity, UV resistance, and thermal stability suitable for demanding industrial and commercial LED lighting applications.

These lenses are optimized for single LED use, compatible with notable LED chips including Cree XP-L and various Lumileds LUXEON models like A, R, Rebel, and Rebel ES, as well as OSRAM OSLON SSL 150 LEDs. The lens achieves a uniform light output by effectively directing light from the LED source into a precisely defined round emission pattern, enhancing lighting design and efficiency.

With a compact 21.6 mm diameter and 11.7 mm height, this lens is suitable for integration in diverse lighting fixtures and devices. It employs a secure pin fixing method to ensure stable mounting and ease of replacement or maintenance in LED assemblies.

The Heidi series meets RoHS environmental compliance standards, guaranteeing that the product is free from hazardous materials, thereby supporting sustainable manufacturing and application processes.

Applications for this LED lens include architectural lighting, display illumination, industrial indicators, and specialty lighting sectors where precise beam control, high optical performance, and durability are essential. Its clear lens color and premium material composition make it ideal for use in commercial, manufacturing, and laboratory environments requiring reliable and consistent LED optics.

Constructed from optical grade Polymethyl Methacrylate providing UV and temperature resistance. Compatible with leading LED types including Cree XP-L and Lumileds LUXEON series. Compact dimensions support versatile integration in various LED fixtures.

Pin fixing method for secure and stable installation. Meets RoHS compliance for environmental safety. Designed for a uniform round beam output with 27 to 29-degree viewing angle. Manufactured in China ensuring consistent quality standards.

Explore more LED lenses and reflectors in EnvMart’s comprehensive Electronics Components catalog for tailored lighting solutions.

Explore more products in our LED Lighting Components category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The viewing angle of this lens is between 27 to 29 degrees, providing a focused round beam for lighting applications.

The lens has a diameter of 21.6 mm and a height of 11.7 mm, making it compact for various lighting fixtures.

It is designed for use with a single LED and is compatible with Cree XP-L, Lumileds LUXEON A, R, Rebel, Rebel ES, and OSRAM OSLON SSL 150.

This lens is constructed from optical grade Polymethyl Methacrylate (PMMA), known for its UV and temperature resistance.

It employs a pin fixing method for secure and stable installation in LED assemblies.

The lens emits a uniform round beam, tailored for focused lighting applications.

Yes, this lens meets RoHS compliance standards, ensuring it is free from hazardous substances.

It is suitable for architectural lighting, display illumination, industrial indicators, and specialty lighting sectors requiring precise beam control.

This lens is manufactured in China under strict quality controls.

The lens features a round shape and style, designed for optimal light distribution.

This lens is designed for use with a single LED, optimizing performance for that configuration.

PMMA provides excellent optical clarity, UV resistance, and thermal stability, making it suitable for demanding lighting applications.
