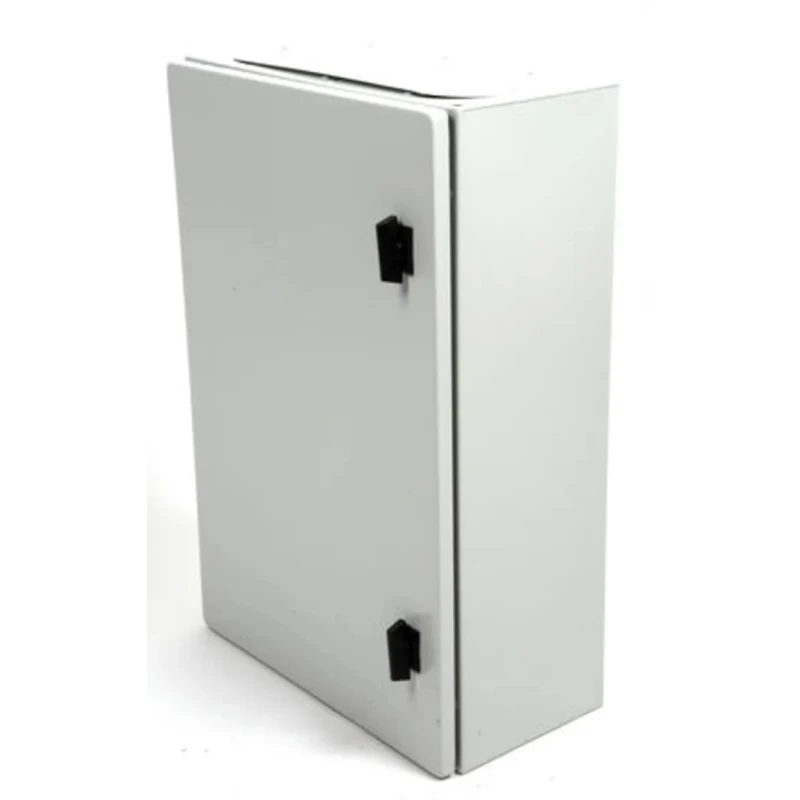

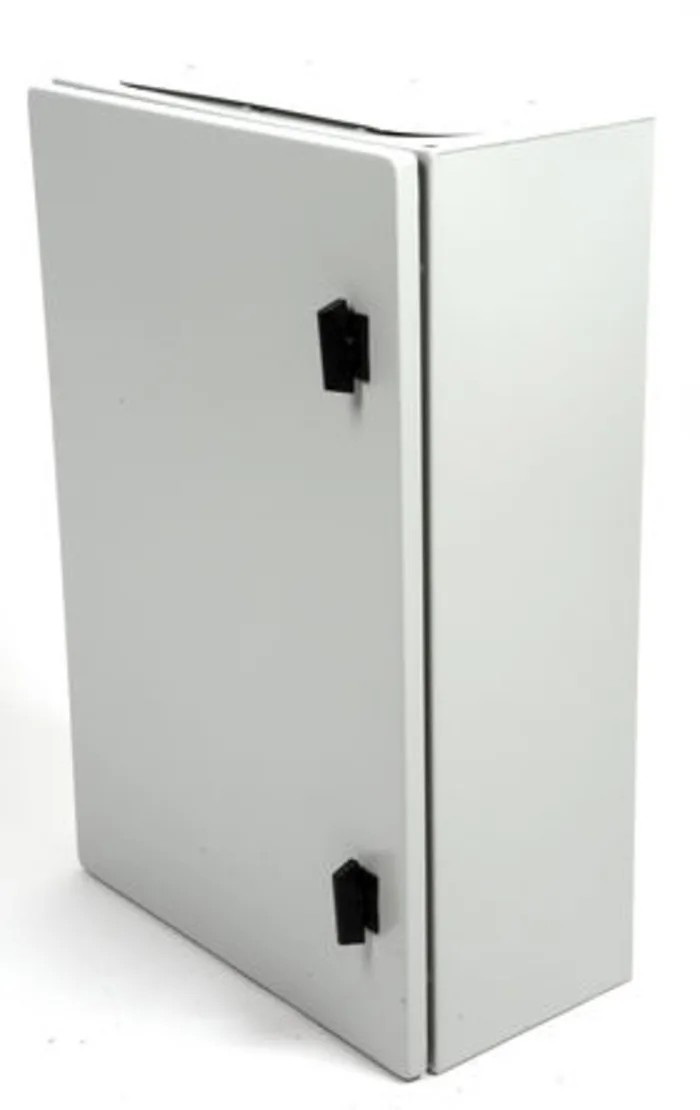

Schneider Electric Spacial CRN Series Steel Wall Box Enclosure IP66 IK10 500 mm x 400 mm x 250 mm NSYCRN54250P

Schneider Electric NSYCRN54250P Spacial CRN Series Steel Wall Box Enclosure is a compact, multi-purpose wall mounting enclosure designed for demanding industrial environments. It measures 500 mm in height, 400 mm in width, and 250 mm in depth, offering ample space for electrical installations with reliable protection.

Constructed from high-quality steel with an epoxy-polyester powder grey finish (RAL 7035), this enclosure ensures corrosion resistance and mechanical durability. The plain front door offers a reversible 120° opening angle and is secured by a 3 mm double-bar lock, providing controlled access and security for housed components.

The enclosure is rated IP66 according to IEC 60529, ensuring complete protection against dust ingress and powerful water jets, allowing for both indoor and outdoor usage. It also meets IK10 impact resistance standards per IEC 62262, safeguarding against mechanical impacts. A polyurethane seal enhances the watertight integrity for long-lasting protection in harsh conditions.

This wall box includes a galvanised steel mounting plate for internal panel mounting, a standard gland plate for cable entry, and removable hinges and plate for easy installation and flexible configurations. The enclosure supports a maximum load of 50 kg/m² and features welded studs on door and body with earth welding for safe grounding.

Certified to various international standards including REACH, UL, RoHS, IEC 62208, and cULus, the Spacial CRN Series enclosure is well-suited for industrial automation and control applications requiring robust, secure, and weatherproof electrical housing solutions.

Package contents include one lock, one door, the Wall Box body, one cable gland plate, and one mounting plate. Explore the complete Spacial CRN range at EnvMart for dependable electrical enclosure solutions designed to meet industrial and commercial demands.

The enclosure is made of durable steel with a grey epoxy-polyester powder finish. It features a plain front door with reversible 120° opening and a 3 mm double-bar lock. Includes a mounting plate made of galvanised steel and a standard gland plate.

The enclosure offers IK10 impact resistance and is suitable for indoor and outdoor use. Designed with polyurethane seal to guarantee water tightness and resistance to harsh environments. Mounting plate, hinges, and cable gland plate are removable for ease of installation and maintenance.

Complies with standards such as REACH, UL, RoHS, IEC 62208, and cULus. Ideal for industrial automation and control applications requiring robust wall-mounted enclosures.
