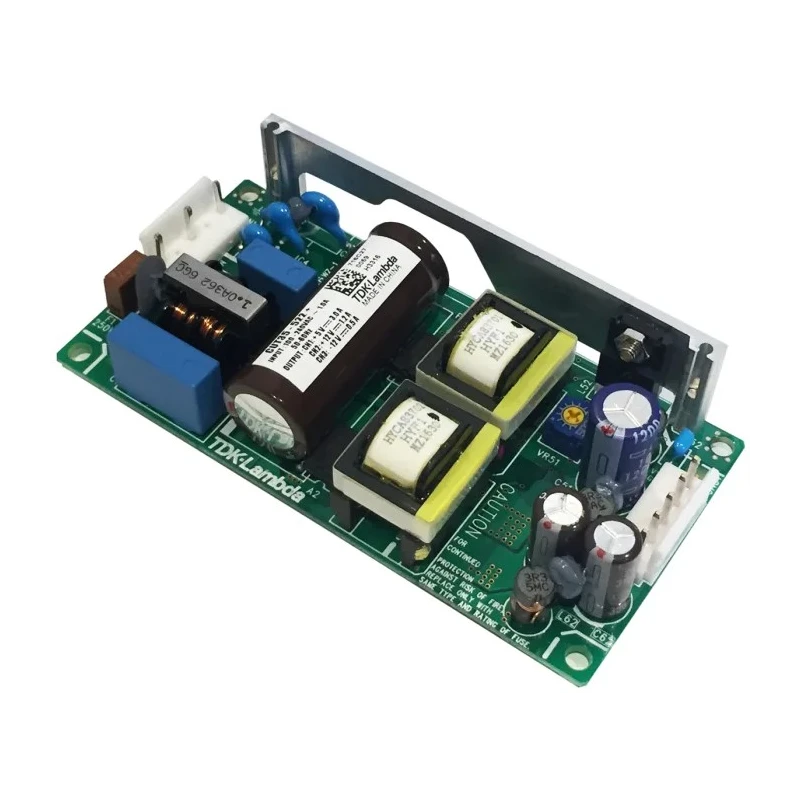

TDK-Lambda CUT35-5FF Switching Power Supply 3 Outputs 15V DC 19.5W Surface Mount 50.8x101.6x27 mm CUT35-5FF

TDK-Lambda CUT35-5FF switching power supply is a versatile and compact surface-mount device delivering three isolated outputs with a maximum output voltage of 15V DC and a power rating of 19.5 watts. This low profile power supply features dimensions of 50.8 mm width, 101.6 mm length, and a height of 27 mm making it suitable for space-constrained industrial and electronic applications.

Designed to operate reliably within temperature ranges from -20°C to 70°C, the CUT35-5FF achieves an efficiency of approximately 90% while employing convection cooling technology to ensure quiet operation without the need for additional cooling fans. Its design supports dual or triple output configurations with electrical isolation between output one and outputs two and three, achieved via dual independent converter topologies.

This switching power supply complies with IEC/UL/CSA/EN 62368-1 safety standards along with EMC certifications such as IEC 61000-4 series and EN 55022-B, ensuring robust performance in industrial and commercial environments. It operates from a universal 85 V AC to 265 V AC input range, powering equipment without minimum load requirements for maintaining precise voltage regulation.

The CUT35-5FF offers built-in protections including over-voltage and over-current safeguarding to protect downstream components. Its lightweight of 90 grams and compact footprint facilitate easy installation in industrial control systems, professional audio setups, test and measurement instruments, as well as hospital, dental, clinical, and healthcare devices.

Compact surface mount design measuring 50.8 mm x 101.6 mm x 27 mm. Efficient convection cooling and quiet operation. Three electrically isolated outputs for flexible power configurations. Wide operating temperature range of -20°C to 70°C.

Conforms to international safety and EMC standards including IEC 62368-1 and EN 55022-B. Universal input voltage from 85 V to 265 V AC. Built-in over-voltage and over-current protection. No minimum load requirement for tight voltage regulation.

Applications include industrial control, broadcast audio, test and measurement, and medical equipment.

This product belongs to the TDK-Lambda CUT35 series of switching power supplies, known for their reliable performance and compact design, ideal for industrial, laboratory, and commercial electronics requiring stable multi-output power sources. Explore the full range of Switching Power Supplies at EnvMart for trusted quality and variety.
