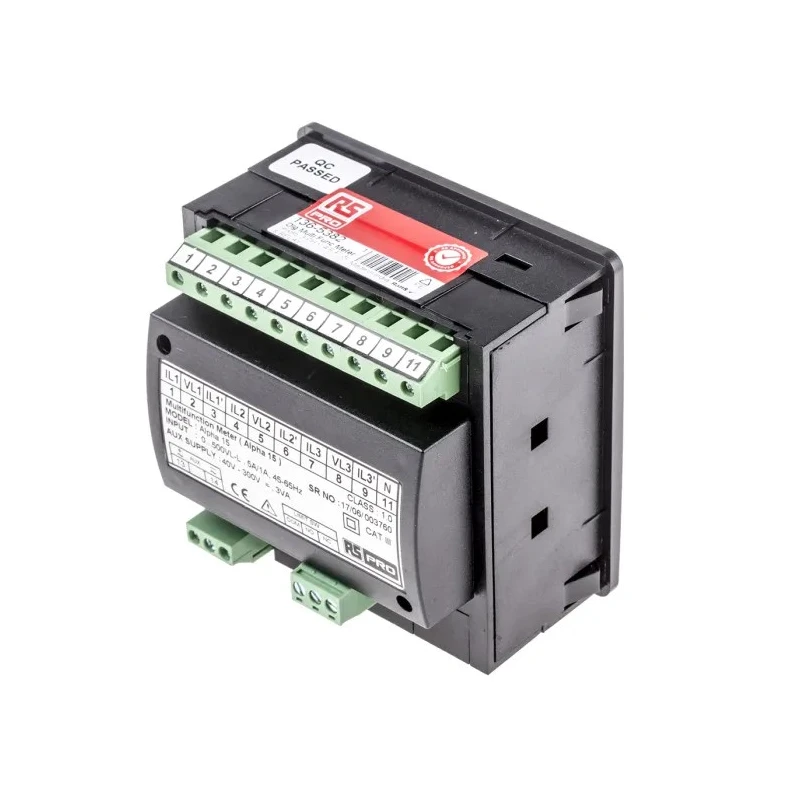

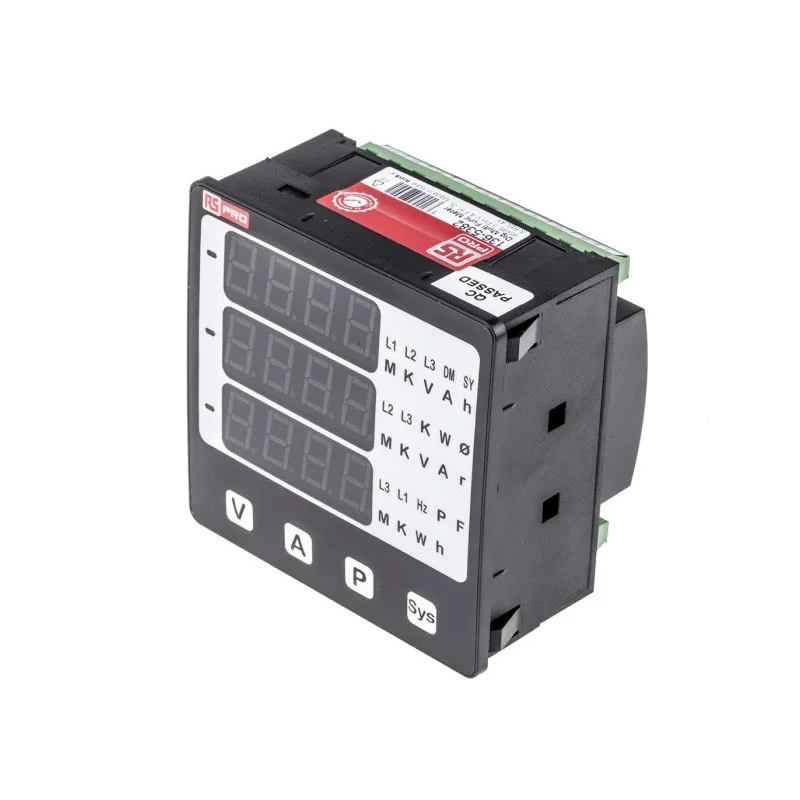

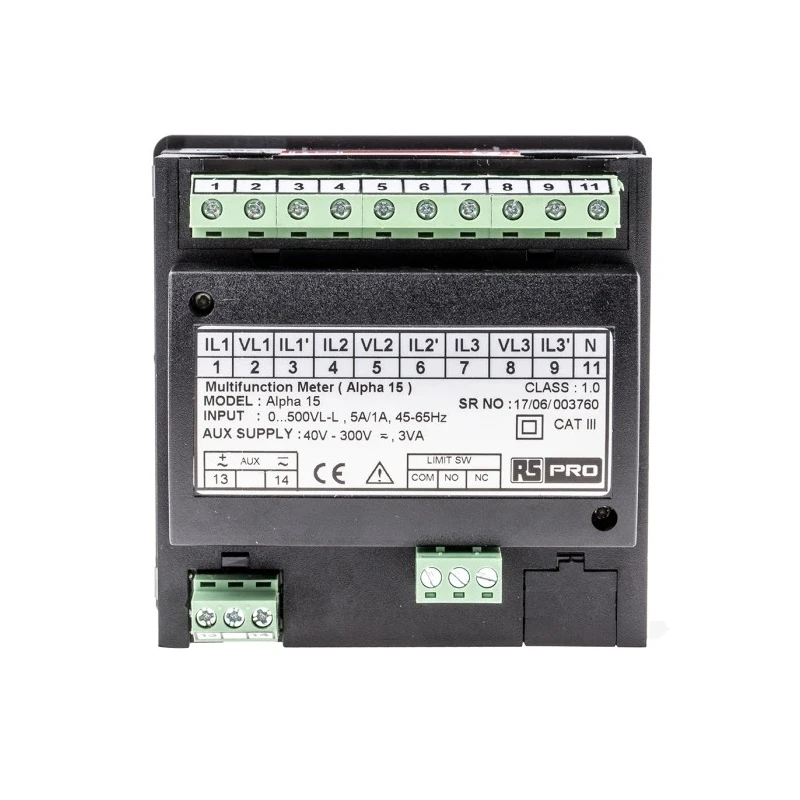

RS Pro LED Digital Panel Multifunction Meter for Frequency, Voltage, Power, Current, 92 mm x 92 mm 136-5382
Specifications
| Country of Origin | India |
|---|---|
| Display Type | LED |
| Brand | RS Pro |
| Model | 136-5382 |
| Depth | 55mm |
| Series | RS PRO |
| Maximum Operating Temperature | 50°C |
| Meter Type | Digital |
| Number Of Digits | 4 |
| Minimum Operating Temperature | 0°C |
| Digit height | 14mm |
| Properties Measured | Frequency, Voltage, Power, Current |
| Cutout Height | 92mm |
| Cutout Width | 92mm |
| Minimum Measurement | 1 (Current) A, 100 (Primary Input Voltage) kV, 100 (Secondary Input Voltage) V, 290 (AC RMS Input Voltage) V, 45 (Frequency) Hz |
| Standards/ApprovalsIEC 60529, IEC 61010-1 | 2001, IEC 61326-1:2005 |
Key Features
- Features a 4-digit, 3-line ultra-bright LED display capable of showing values up to 9999.
- Enables true RMS measurements for enhanced accuracy in electrical monitoring.
- Supports installation on 3 phase 4-wire and 3 phase 3-wire networks, replacing multiple analogue meters.
- Offers user-selectable CT/PT secondary ratios for flexible configuration.
- Equipped with limit switch options and programmable CT/PT ratios on-site.
- Measures a variety of electrical parameters including active and reactive power.
- Stores minimum and maximum measured values for detailed analysis.
- Operates within a temperature range of 0°C to 50°C for reliable industrial use.
Product Description
RS Pro 136-5382 is a LED Digital Panel Multifunction Meter designed for precise monitoring of frequency, voltage, power, and current in industrial electrical systems. Its 92 mm x 92 mm panel cutout fits standard installation requirements, making it ideal for control panels and automation setups.
This digital meter features a 4-digit, 3-line ultra-bright LED display, offering clear visibility and measurement capability up to 9999. It delivers true RMS measurements to ensure accuracy across varying load conditions. The meter supports measurement in both 3 phase 4-wire and 3 phase 3-wire network configurations, eliminating the need for multiple analogue meters.
User-selectable CT secondary ratios (1A or 5A) and PT secondary voltages (ranging from 100 VLL to 500 VLL) allow for versatile onsite programming and adaptation to different electrical systems. Additional features include limit switch options, storage of minimum and maximum values, and measurement of running hours, interruptions, and RPM.
Ultra-bright LED display enhances readability in challenging industrial environments. True RMS measurement improves accuracy in power quality analysis. Flexible network compatibility enables use in multiple electrical configurations.
User-programmable CT/PT ratios facilitate easy integration in various setups. Complies with IEC standards ensuring safety and reliability. Suitable for use in industrial automation, electrical panels, HVAC, manufacturing, and process control applications.
The RS Pro 136-5382 panel meter is manufactured in India, reflecting high quality and adherence to international standards. Its robust design and extensive features make it suited for demanding industrial environments requiring meticulous electrical parameter monitoring.
