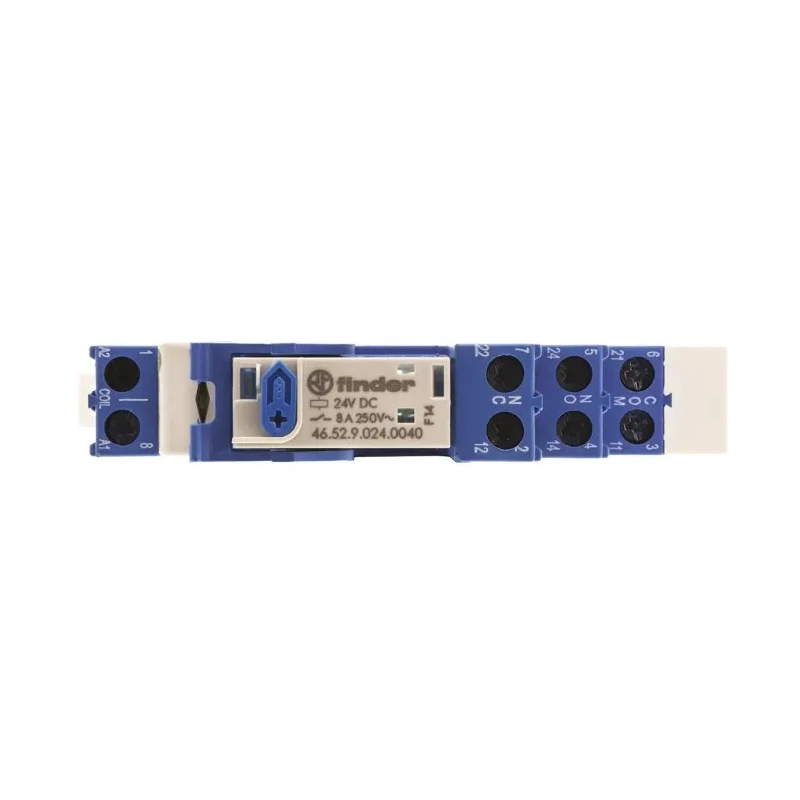

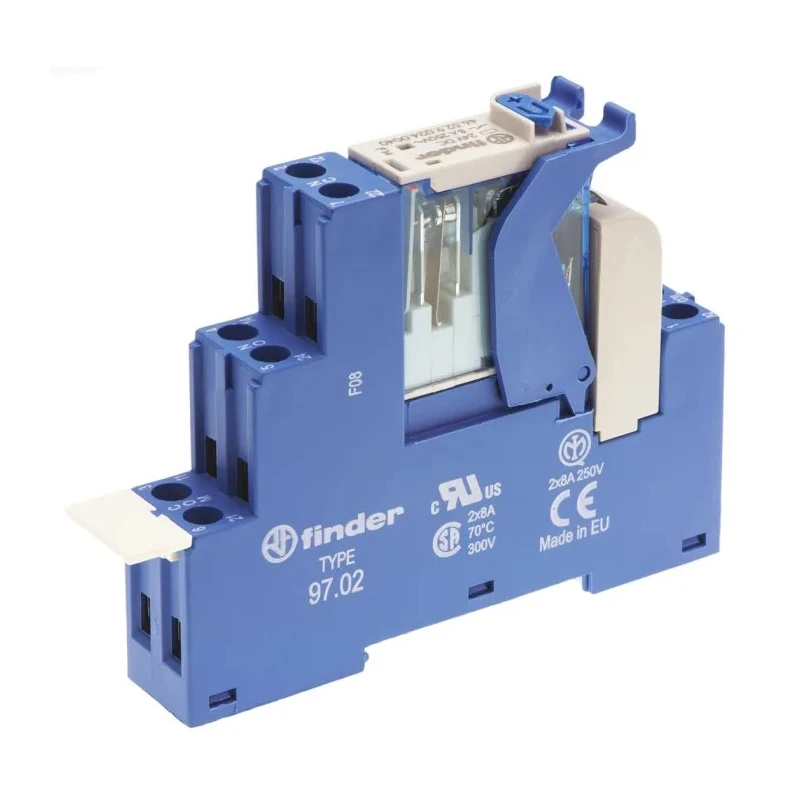

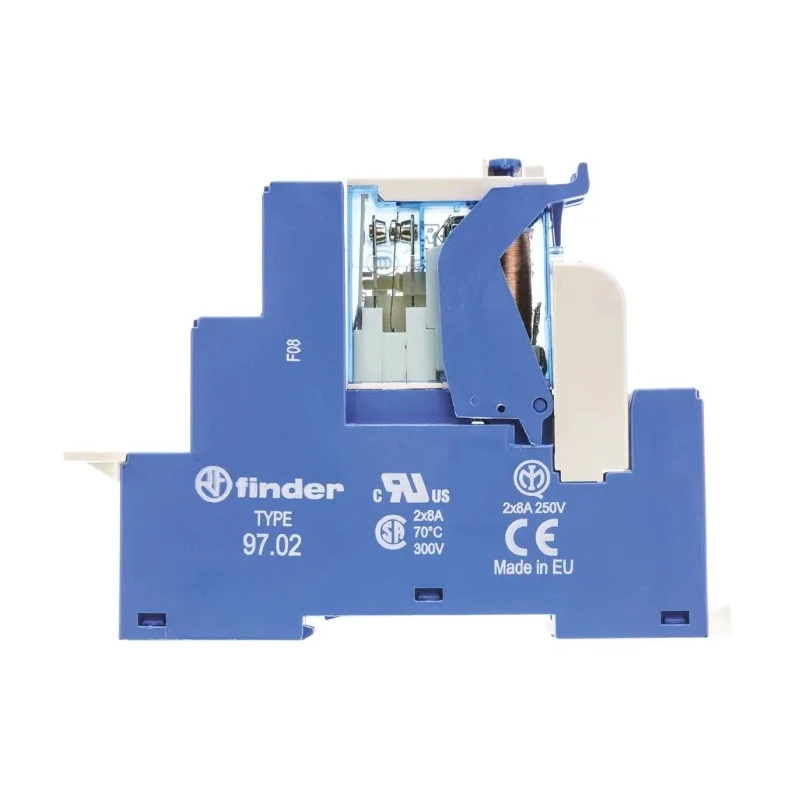

Finder 4C Series Interface Relay DPDT 24V DC Coil Voltage 8A Switching Current DIN Rail Mount 4C.02.9.024.0050SPA

Finder 4C.02.9.024.0050SPA series Interface Relay features a 24V DC coil voltage and DPDT (Double Pole Double Throw) contact configuration, designed for reliable electrical switching in industrial automation and control systems.

This electromechanical interface relay supports a switching current up to 8A and can switch DC voltage of 24V as well as AC voltage up to 250V. The relay utilizes silver alloy contacts for excellent conductivity and long-term durability under demanding use conditions.

The relay is mounted on DIN rails, facilitating easy integration into electrical panels. Screw terminal connections ensure secure and straightforward wiring. It operates efficiently across a wide temperature range from -40°C to +70°C, making it suitable for harsh environments.

With a coil resistance of 1200Ω and a coil current of only 20mA, this relay consumes minimal power, which is beneficial for energy-sensitive applications. It is rated for 100,000 mechanical cycles, assuring high reliability and longevity.

This relay complies with EAC and CE industrial standards, indicating its adherence to quality and safety regulations. The product’s compact size, with dimensions of 82.9mm height, 64.6mm width, and 15.8mm length, supports efficient panel design without sacrificing functionality.

Applications for this relay include its use in automation control panels, machinery requiring dependable switching, HVAC system controls, and electrical distribution boards. Its robust design and performance qualities make it indispensable for electrical, mechanical, and electronics professionals seeking efficient automation components.

Equipped with DPDT contacts for versatile circuit connections. Operating coil voltage of 24V DC ensures low power consumption. Supports switching currents up to 8A for robust load handling. DIN Rail mounting with secure screw terminals.

Operates reliably from -40°C to +70°C. Silver alloy contacts improve conductivity and durability. Compact size with dimensions 82.9mm x 64.6mm x 15.8mm. Rated for 100,000 operational cycles. Complies with EAC and CE standards.

Manufactured in Italy for high quality assurance.

EnvMart offers this Finder 4C.02.9.024.0050SPA Interface Relay ideally suited for integration in industrial automation, electrical control, HVAC, and manufacturing systems. Browse our extensive selection of relays and interface components to complement your electrical solutions.
