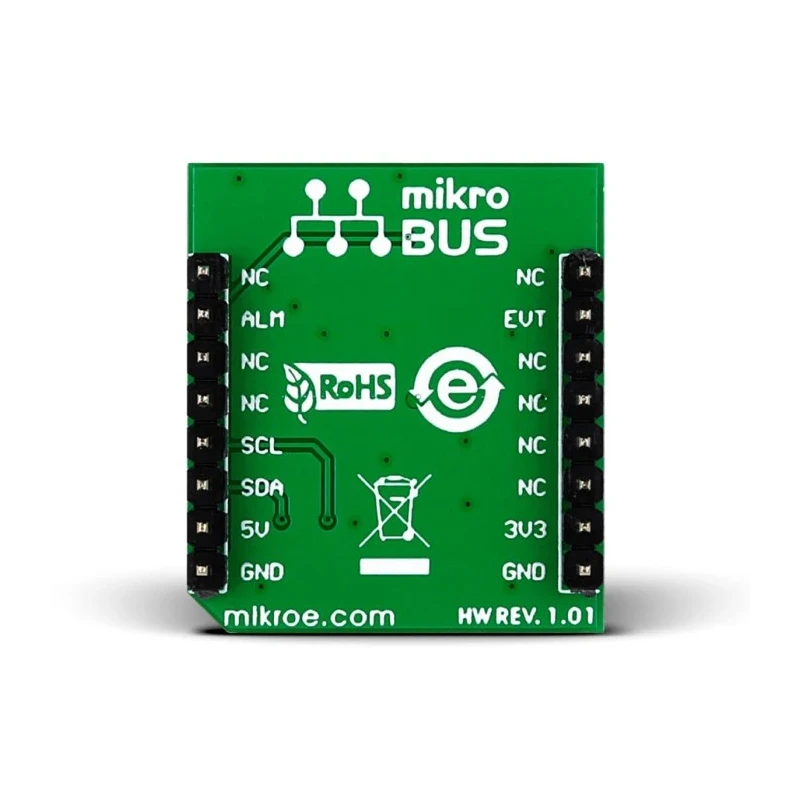

MikroElektronika Elapsed Time Counter MikroBus Click Board for DS1682 MIKROE-2333

MikroElektronika MIKROE-2333 Elapsed Time Counter MikroBus Click Board is a specialized clock and timer development tool designed for precise elapsed-time measurement and event counting applications. This board features the Maxim DS1682, a robust total-elapsed-time recorder with an alarm function and integrated EEPROM for data retention.

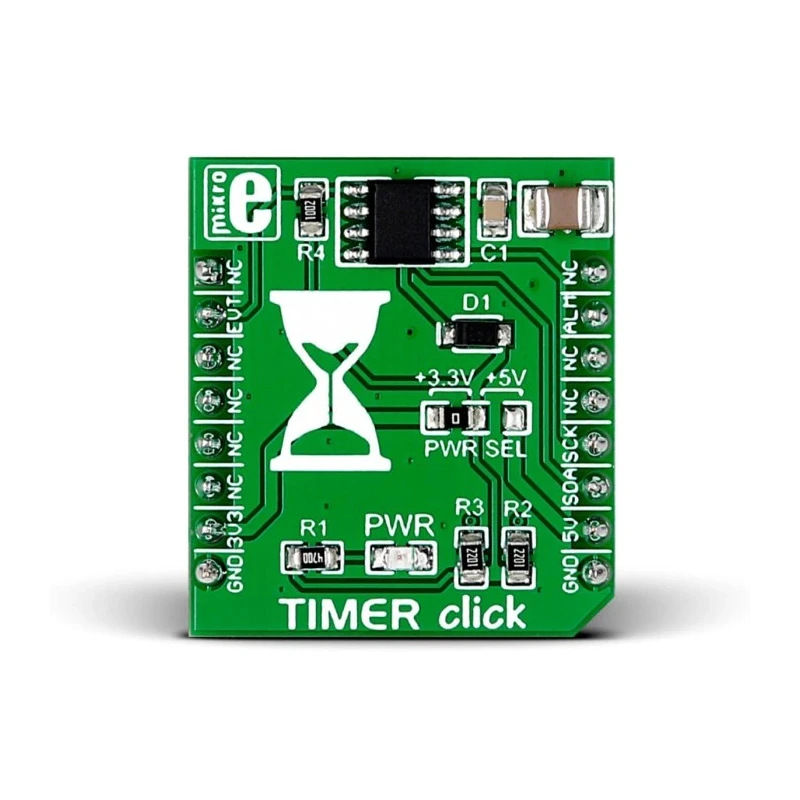

The TIMER click mikroBUS board offers a 32-bit counter with a resolution down to a quarter of a second, allowing detailed event duration monitoring. It can track both the cumulative time that an event input remains active and the total number of such events. The programmable elapsed time alarm output supports active-low or high impedance signal configurations, enhancing flexibility for integration with other circuits.

Power options include a default 3.3 V supply or 5 V via the mikroBUS socket, suitable for various embedded system voltage requirements.

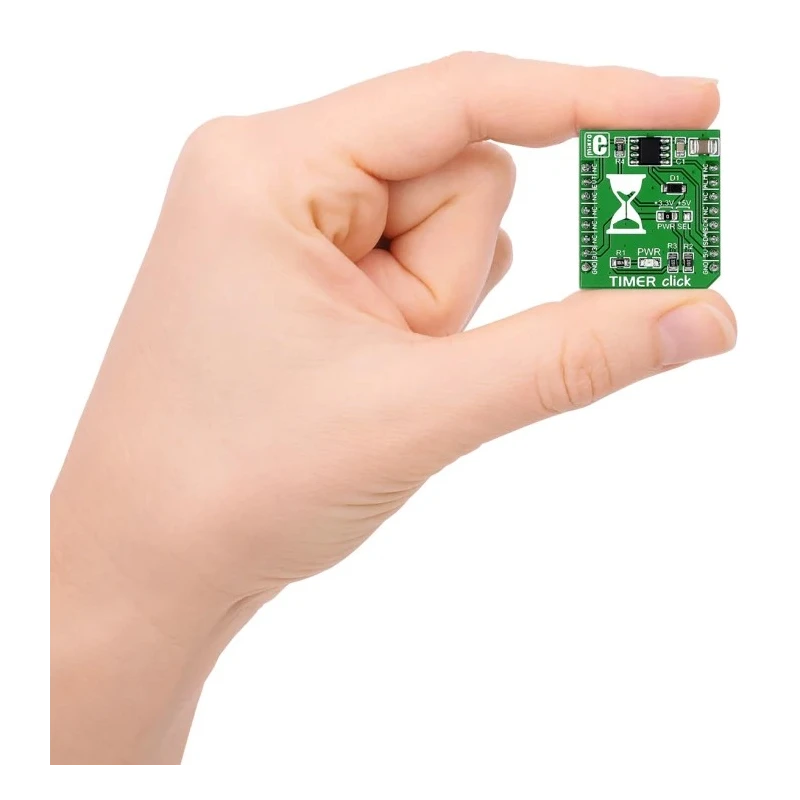

This click board is compact, measuring 28.6 mm by 25.4 mm, making it an ideal extension for development platforms following the mikroBUS standard. It comes with header strips pre-soldered to expedite prototyping and development.

Applications for this product include industrial automation, electronics prototyping, event logging, and embedded system development requiring precise timing and event counting functionalities. The integrated EEPROM maintains timer user data safely without power, ensuring reliable data storage for critical applications.

The board supports precise elapsed time measurement with quarter-second resolution. Includes programmable alarm and event input features for versatile timing solutions. Maintains user data in EEPROM ensuring data retention without external power.

Operates at 3.3 V or 5 V power supply for compatibility with various systems. Compact and easy to integrate via mikroBUS socket with soldered header strips. Ideal for use in embedded development, industrial automation, and event monitoring.

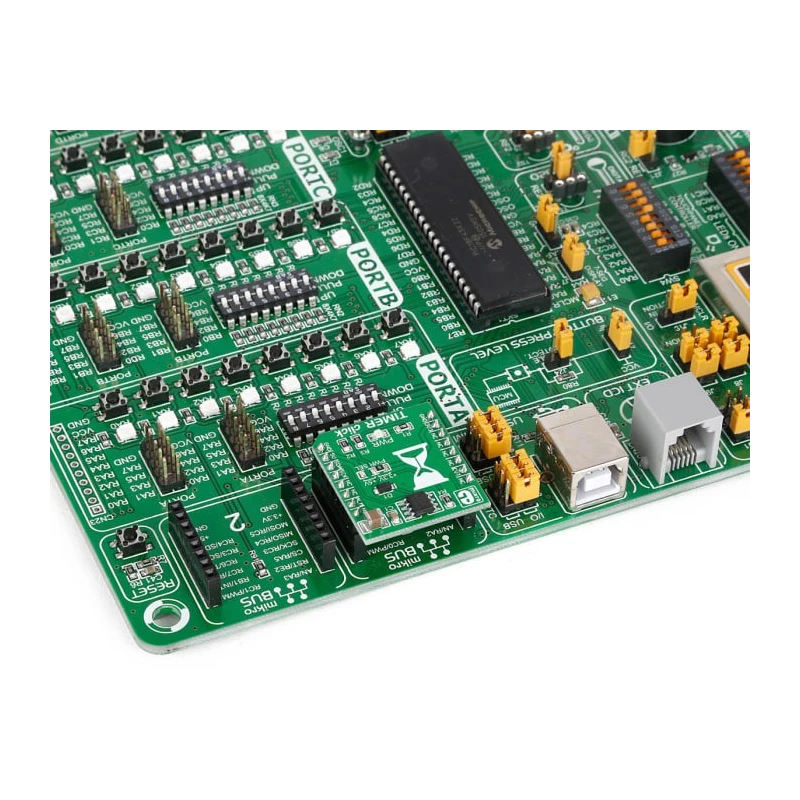

Compatible with major development platforms that support mikroBUS add-ons. Explore more products in the Clock & Timer Development Tools category for your electronics and embedded systems projects at EnvMart.
