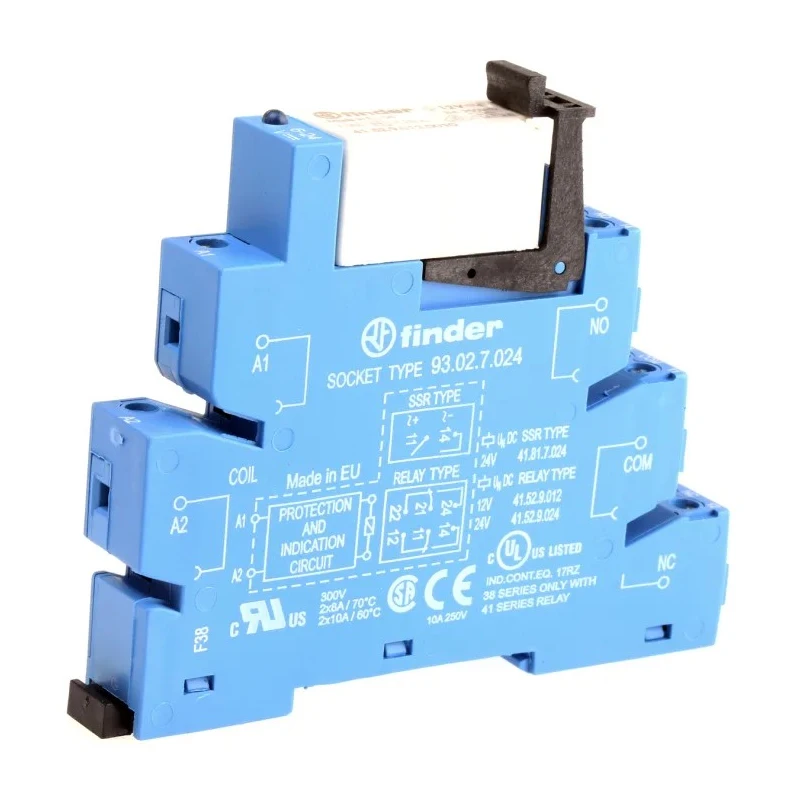

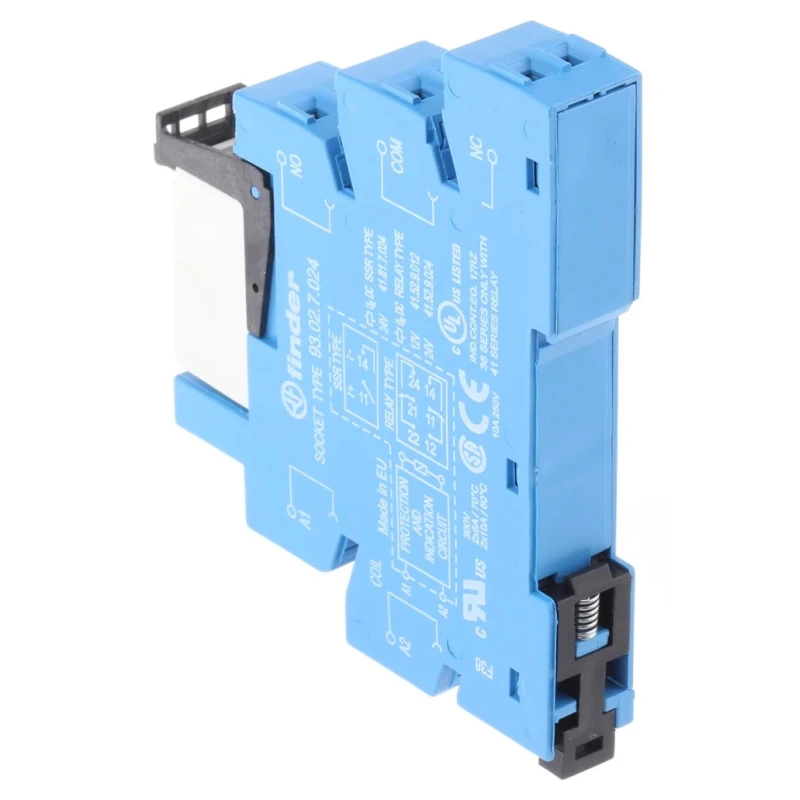

Finder 38 Series Electromechanical Interface Relay DIN Rail Mount 12V DC Coil 8A DPDT 38.52.7.012.0050

Finder 38.52.7.012.0050 Electromechanical Interface Relay designed for reliable and efficient switching solutions in industrial automation and control systems. This relay features a 12V DC coil voltage with a coil current of 41mA and DPDT contact configuration, delivering a load current rating of 8A for robust switching performance.

The device is engineered for DIN rail mounting, facilitating straightforward installation in control panels and electrical enclosures. Its compact size (89.7 x 14 x 77.1mm) ensures it occupies minimal space while integrating seamlessly into existing setups. Constructed with durable silver alloy contacts, this relay supports switching AC voltages up to 250V and DC voltages up to 12V.

The relay operates efficiently across a broad temperature range from -40°C to +70°C, making it suitable for diverse industrial environments including packaging machinery, traffic light control systems, programmable logic controllers (PLCs), and electrical distribution panels. The integral coil indication and protection circuit provide enhanced operational safety by preventing coil damage and offering clear coil status indication.

Serviceability is improved by the instant relay ejection feature via a plastic retaining clip, enabling quick maintenance without disrupting system operation. Certified to CE and EAC standards, this relay ensures compliance with international quality and safety requirements.

Applications include industrial automation, control systems, manufacturing equipment, and electrical distribution. Its proven reliability and versatile features make it an excellent choice for signal switching and interface control tasks in commercial and industrial setups.

This relay features a double pole double throw (DPDT) contact configuration allowing versatile circuit design. DIN rail mount ensures easy installation in control panels and industrial systems. Operates with a 12V DC coil voltage and a coil current of 41mA for efficient power consumption.

Constructed with silver alloy contacts to provide reliable switching performance and longevity. Compact dimensions measuring 89.7mm height, 14mm length, and 77.1mm width allow space-saving integration. Wide operating temperature range from -40°C to 70°C supports varied industrial environments.

The relay supports switching of up to 250V AC and 12V DC voltages for different applications. Instant relay ejection via plastic retaining clip enables hassle-free maintenance. Integral coil indication and protection circuits enhance safety and operational reliability.

Certified with CE and EAC standards confirming quality and compliance. Discover more high-quality electromechanical relays and interface components suitable for demanding industrial automation and control applications at EnvMart.
