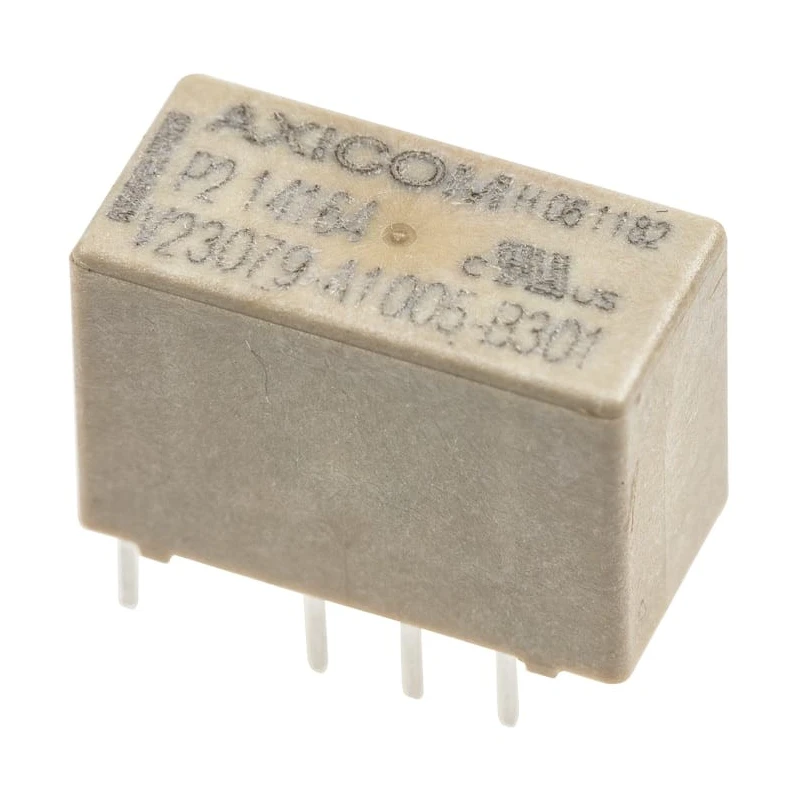

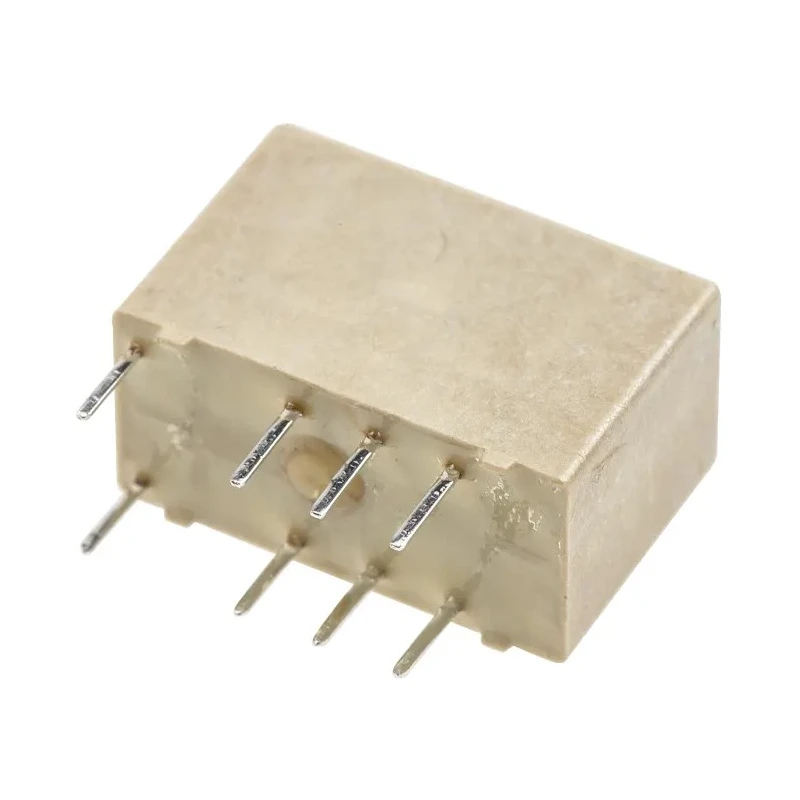

TE Connectivity PCB Signal Relay 24V DC Coil, 2A Switching Current, DPDT Contact Configuration V23079A1005B301
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 9.8mm |
| Length | 14.5mm |
| Model | V23079A1005B301 |
| Width | 7.2mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | Axicom P2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 4100Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 140mW |
Key Features
- This PCB signal relay offers low power consumption with a coil power of 140mW.
- Gold plated bifurcated contacts ensure reliable switching and minimal contact resistance.

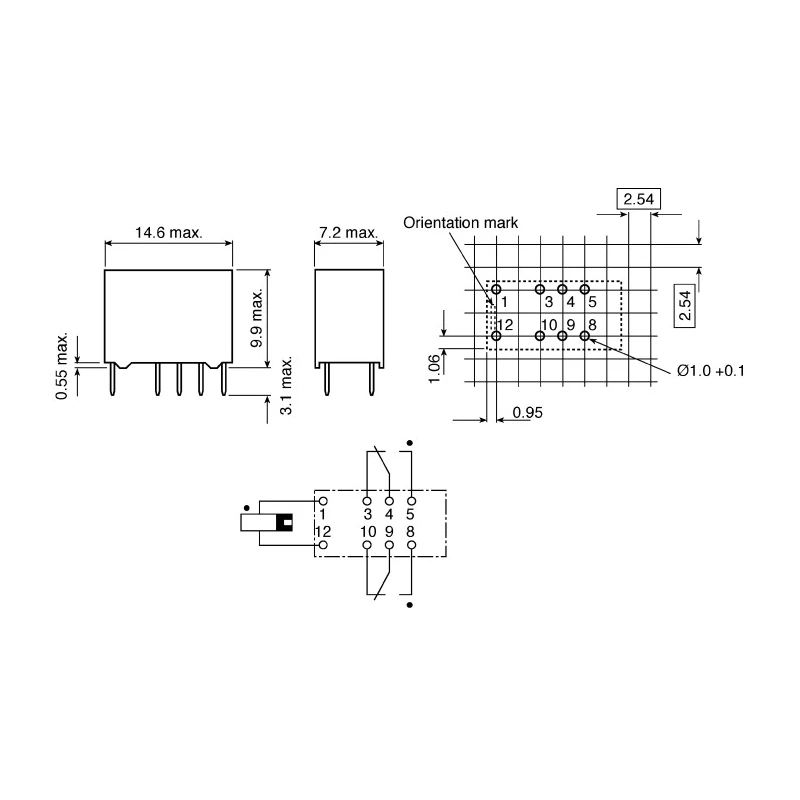

- The relay has a compact size with dimensions 14.5mm length, 9.8mm height, and 7.2mm width.
- Operating temperature ranges from -40°C to 85°C making it suitable for diverse environments.
- It meets RoHS compliance and has insulation resistance greater than 10⁹Ω at 500Vdc.
- The device is immersion cleanable to RTIII and rated IP67 for protection.
- Surge capability complies with Telcordia and IEC 60950 standards ensuring durability against electrical transients.
- Ideal for use in telecommunications, consumer electronics, office, medical, automotive and control equipment.
Product Description
TE Connectivity V23079A1005B301 PCB Signal Relay is a miniature, high sensitivity Axicom P2 series device designed for low power consumption and space saving in electronic applications. With a 24V DC coil voltage and a switching current capacity of 2A, this DPDT relay provides reliable switching performance for various industrial and commercial uses.
The relay features bifurcated gold plated contacts that improve conductivity and reduce wear. Its compact dimensions of 14.5mm length, 9.8mm height, and 7.2mm width make it suitable for PCB mounting in tight spaces.
Operating over a wide temperature range from -40°C to 85°C, the relay is robust for harsh environments. It also complies with RoHS, ensuring environmentally safe manufacturing standards, and offers an insulation resistance exceeding 10⁹Ω at 500V DC for dependable electrical isolation.
Designed to be immersion cleanable to RTIII standards and rated with an IP67 protection, the relay withstands exposure to dust and water ingress. Surge capability meets Telcordia TR-NWT-001089 and IEC 60950 standards, providing resistance to voltage spikes.
Applications include telecommunications equipment such as PABX and VOIP systems, consumer electronics like set top boxes and HiFi systems, office and control equipment, medical devices, and automotive electronics.
This PCB signal relay offers low power consumption with a coil power of 140mW. Gold plated bifurcated contacts ensure reliable switching and minimal contact resistance. The relay has a compact size with dimensions 14.5mm length, 9.8mm height, and 7.2mm width.
Operating temperature ranges from -40°C to 85°C making it suitable for diverse environments. It meets RoHS compliance and has insulation resistance greater than 10⁹Ω at 500Vdc. The device is immersion cleanable to RTIII and rated IP67 for protection.
Surge capability complies with Telcordia and IEC 60950 standards ensuring durability against electrical transients. Ideal for use in telecommunications, consumer electronics, office, medical, automotive and control equipment.
Explore the extensive range of Signal Relays available at EnvMart to find solutions tailored to your industrial and electronic control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It has a switching current capacity of 2A.
The relay has dimensions of 14.5mm in length, 9.8mm in height, and 7.2mm in width.
The operating temperature range is from -40°C to 85°C.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The insulation resistance is greater than 10⁹Ω at 500V DC.
Yes, this relay meets RoHS compliance standards.
The coil power of this relay is 140mW.
It is designed for PCB mounting.
The contacts are made of gold-plated material, which improves conductivity and reduces wear.
The surge capability complies with Telcordia TR-NWT-001089 and IEC 60950 standards.
This relay is suitable for applications in telecommunications, consumer electronics, office equipment, medical devices, automotive electronics, and control equipment.
