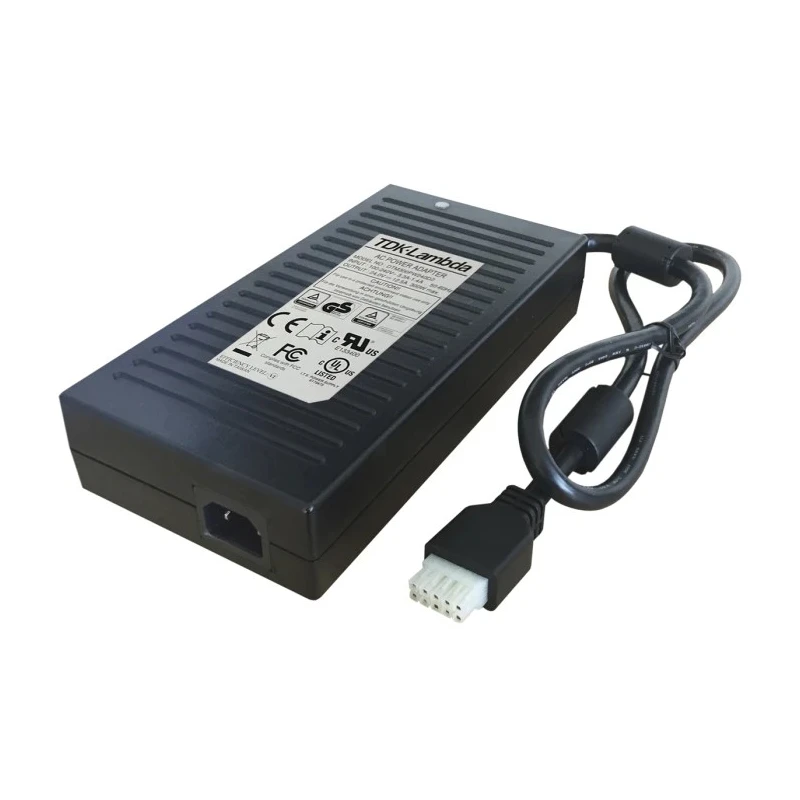

TDK-Lambda AC/DC Adapter Power Adapter 10 Pin DC Jack 300 W 28V DC Output 10.71A DTM-300PW-280-D2

Free Delivery in India | Lowest Global Shipping Charges

TDK-Lambda AC/DC Adapter Power Adapter 10 Pin DC Jack 300 W 28V DC Output 10.71A DTM-300PW-280-D2

Name: TDK-Lambda AC/DC Adapter Power Adapter 10 Pin DC Jack 300 W 28V DC Output 10.71A DTM-300PW-280-D2
Brand: TDK-Lambda
SKU: 144504



Category AC/DC Adapters Brand TDK-Lambda Condition New

Specifications

Country of Origin	India
Brand	TDK-Lambda
Power	300W
Efficiency	88%
Length	222mm
Model	DTM-300PW-280-D2
Depth	45mm
Cable Length	800mm
Width	112mm
Series	DTM300-D
Maximum Operating Temperature	60°C
Sub Type	Power Adapter
Load Regulation	±5 %
Minimum Operating Temperature	-30°C
Plug Type	10 Pin
Number of outputs	1
Maximum Input Voltage	264V ac
Output Voltage	28V dc
Minimum Input Voltage	90V ac
Output Connector Type	DC Jack
Input Connector Type	IEC 320-C14
Adapter Current	10.71A
Energy Efficiency Level	VI

Key Features

Features a 10-pin plug and DC jack output connector for reliable connectivity.
Includes an 800mm cable length and IEC 320-C14 input connector.
Operates efficiently with an 88% efficiency rate and meets Level VI energy standards.
Suitable for medical and ITE applications with UL 60601-1 and CE approvals.
Convection-cooled with a rugged, vent-free enclosure for durable operation.
Supports wide input voltage range from 90V to 264V AC.
Operating temperature range from -30°C to 60°C with linear derating.
Load regulation within ±5% for stable output.

Product Description

TDK-Lambda DTM-300PW-280-D2 AC/DC Adapter Power Adapter delivers 300 W power at 28V DC output and 10.71 A current, engineered for demanding medical and industrial applications. This 10-pin DC jack adapter conforms to Class I and Class II safety requirements and meets IEC606-1-1-2 Ed4: 2014 standards, making it suitable for B & BF rated medical equipment, test and measurement devices, communications, and broadcasting systems.

The adapter features a convection-cooled, vent-free rugged enclosure using a standard IEC 60320-C14 three-pronged input connector. The 800mm cable supports flexible installation. It provides outstanding energy efficiency at 88%, complying with DOE Level VI standards and maintaining an off-load power draw of less than 0.5 W.

Designed to operate across a wide input voltage range of 90 to 264 V AC and ambient temperatures from -30°C to 60°C, the device includes both over-voltage and overcurrent protection. Load regulation is tight at ±5%, ensuring steady performance under varying conditions.

10-pin plug with DC jack output connector. Power output of 300 W at 28 V DC and 10.71 A current. Convection cooling and rugged vent-free enclosure. Wide input voltage range: 90 V AC to 264 V AC. Operating temperature from -30°C to 60°C with derating.

88% efficiency meeting DOE Level VI standards. Safety approvals include UL 60601-1, CE, IEC 60601-1, and EN 60601-1. Compact dimensions: 222 mm (L) x 112 mm (W) x 45 mm (D).

This power adapter is ideal for industrial, laboratory, healthcare, telecommunications, and broadcasting applications that require high reliability and energy efficiency. TDK-Lambda's DTM300-D series is trusted globally for superior quality and safety conformity.
