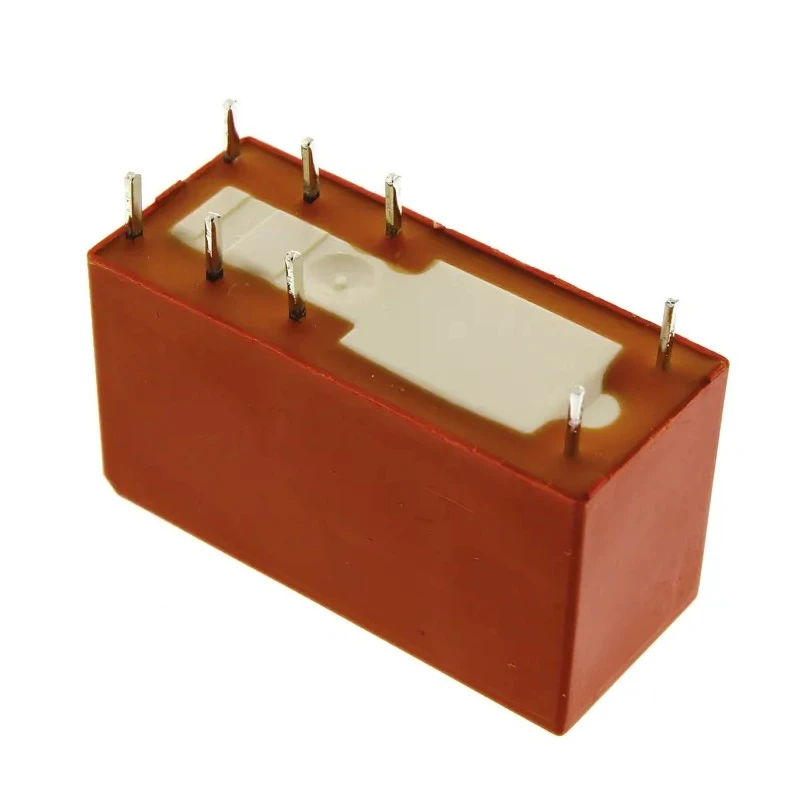

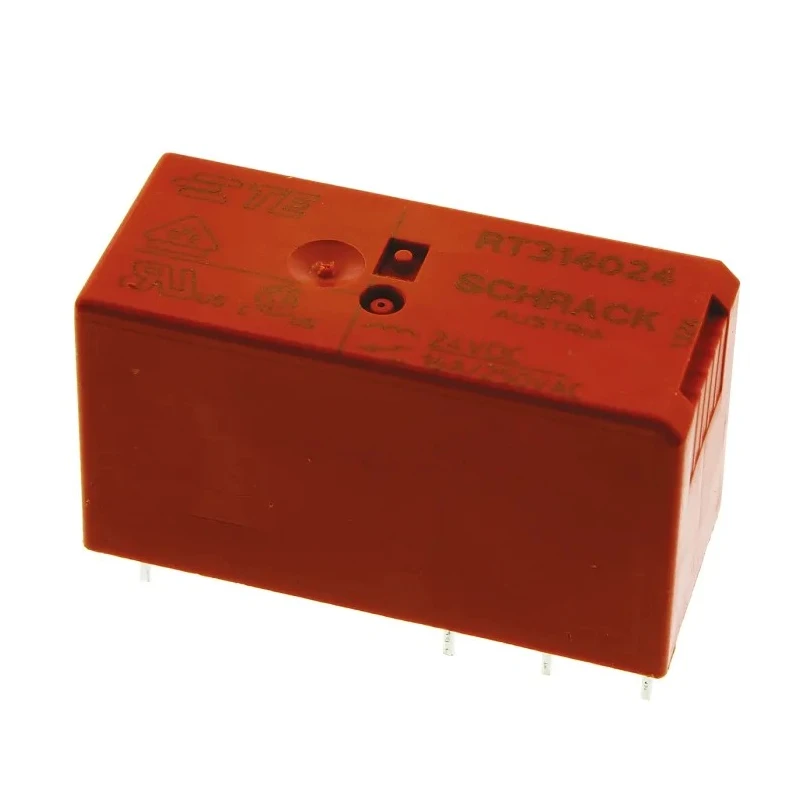

TE Connectivity PCB Power Relay 24V DC Coil 16A Switching Current SPDT RT314024 9-1393239-8

TE Connectivity RT314024 9-1393239-8 PCB Power Relay is a non-latching SPDT relay engineered for industrial electronics and automation systems. It operates on a 24V DC coil with a maximum switching current of 16A, delivering reliable contact performance with silver nickel alloy contacts.

The relay supports a wide operating temperature range from -40°C to 85°C and can switch AC voltages up to 400V AC, making it suitable for various environments and electrical conditions.

This component is designed for PCB mounting using solder terminals with compact physical dimensions of 29mm length, 12.7mm width, and 15.7mm height, enabling efficient space utilization on circuit boards. Its coil resistance stands at 1.4 kΩ and requires 400 mW coil power.

Key features include cadmium-free silver nickel contact material, flux-resistant construction, and compliance with standards such as VDE and cULus. The relay is well-suited for applications including boiler control systems, timers, garage door operations, POS automation, and interface modules.

The RT314024 9-1393239-8 is manufactured in Austria, ensuring European quality and reliability. Its pinning pitch is 5mm, which conforms to common industry layouts. This relay features a silver nickel alloy contact material for durable conductivity.

Designed for PCB mounting with solder terminal type ensuring reliable connections. Capable of switching AC voltage up to 400V AC and operating within a temperature range of -40°C to 85°C. The coil resistance is approximately 1.4 kΩ with coil power consumption of 400 mW.

Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height facilitate easy integration into electronic assemblies. Standards compliance includes VDE and cULus certifications for safe and quality usage. Used widely in industrial and automation applications such as boiler control, timers, garage door controls, and POS automation.

Non-latching design with 5mm pinning supports flexible switching needs in various modules and interface devices. Explore the Electronics & Electricals category at EnvMart for more Power Relays from TE Connectivity and other leading brands to suit your industrial and commercial needs.
