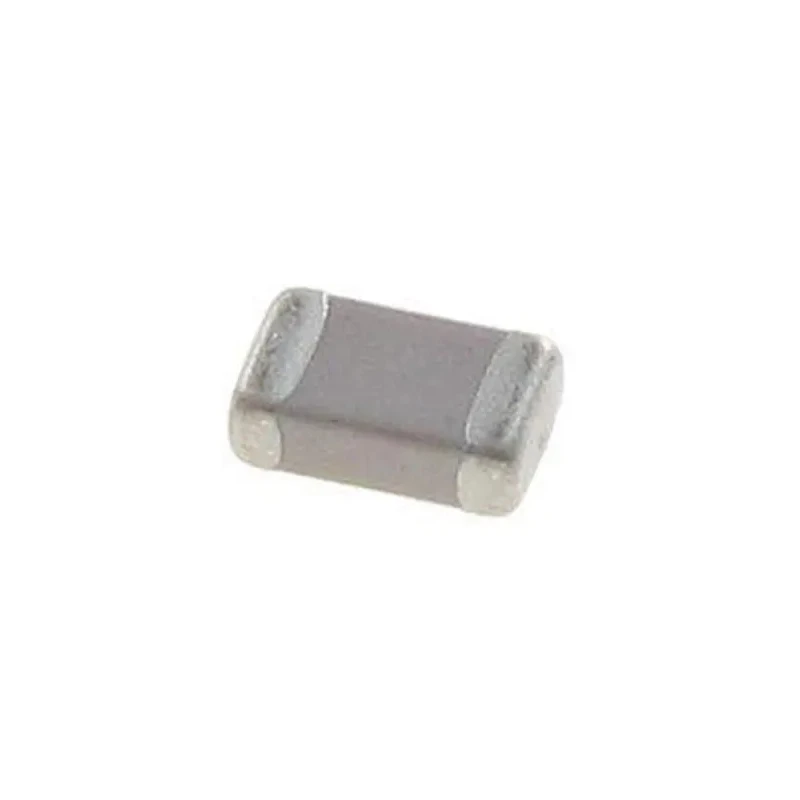

KYOCERA AVX 150 nF Multilayer Ceramic Capacitor 630V DC ±10% Tolerance Surface Mount 1825 Series 1825CC154KAT1A

KYOCERA AVX 1825CC154KAT1A is a high-voltage multilayer ceramic capacitor with a nominal capacitance of 150 nF and a rated voltage of 630V DC, featuring ±10% tolerance and compact surface mount 1825 package.

This capacitor utilizes the X5R dielectric material, enabling operation in a temperature range from -55°C to 125°C, making it reliable for demanding industrial electronic applications.

Designed to deliver excellent performance with low leakage current and low equivalent series resistance (ESR) at high frequencies, it is ideal for snubbers in high-frequency converters, resonators in switched-mode power supplies (SMPS), and high-voltage coupling or DC blocking circuits.

The device features surface mount terminations for seamless PCB integration and is supplied on a reel packaging suited for automated assembly lines.

Operating instructions recommend maintaining a temperature gradient during heating or cooling cycles to not exceed 4°C per second, and preheat temperature within 50°C of peak ceramic body temperature during soldering to ensure product reliability.

Nominal capacitance of 150 nF with ±10% tolerance. Rated voltage of 630V DC for high-voltage applications. Compact 1825 package type measuring 6.3 x 4.6 x 3.4 mm. X5R dielectric for stable electrical properties across temperature range.

Surface mount termination for easy PCB assembly. Reel packaging for automated pick-and-place processes. Suitable for industrial electronics, power conversion, and filtering applications. Temperature operating range from -55°C to 125°C.

This KYOCERA AVX Multilayer Ceramic Capacitor aligns with applications in electronics manufacturing, industrial controls, communication devices, and power electronics. For further product selection, consider browsing the MLCCs category within Electronics Components on EnvMart.
