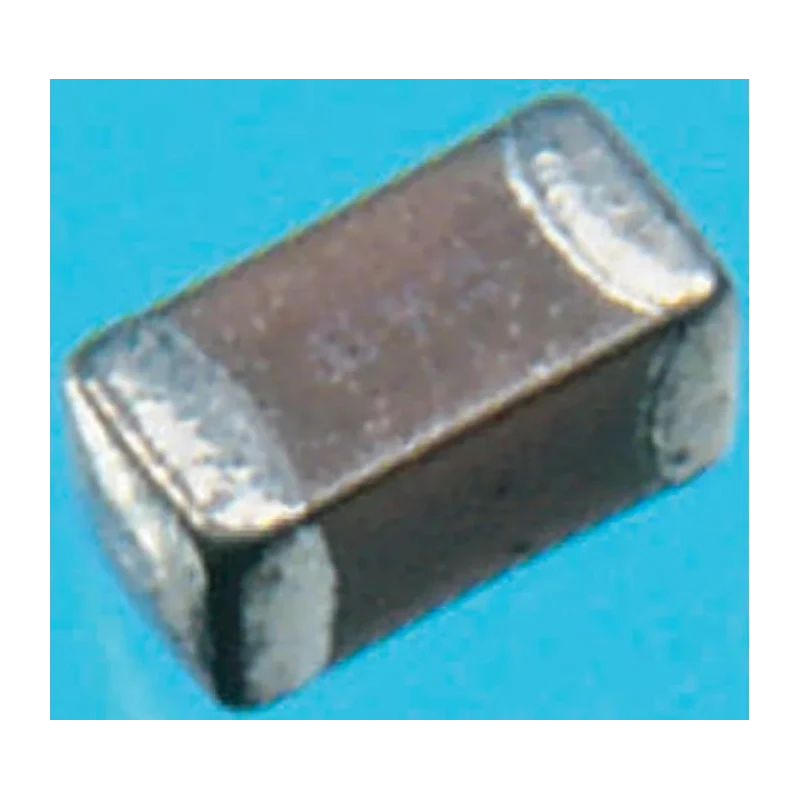

KEMET 680 pF Multilayer Ceramic Capacitor, 50V dc, ±5 %, Surface Mount Tape & Reel 0603 C0603C681J5GACTU

KEMET C0603C681J5GACTU is a high precision Multilayer Ceramic Capacitor featuring 680 pF capacitance with a ±5 % tolerance and a 50V dc voltage rating. This capacitor is designed for surface mount applications in advanced electronic circuits requiring stability and reliability.

The compact 0603 package size measures 1.6 mm in length, 0.8 mm in width, and 0.8 mm in height, enabling dense PCB layouts. It utilizes the C0G dielectric which maintains capacitance stability with minimal variation over temperature and time, operating effectively from -55°C up to a maximum of 125°C. This makes it ideal for resonant circuits and other applications where Q factor and capacitance stability are critical.

The capacitor is constructed with a stacked design and is supplied in tape and reel packaging, facilitating automated assembly processes. Solder termination ensures reliable electrical contact and mechanical strength on printed circuit boards. Compliance with standards such as J-STD-020, IPC-7351, EIA 624, 556, and 481 guarantees compatibility and quality assurance for industrial and commercial use.

Typical applications include bypass and decoupling circuits, frequency discriminating circuits where the stability of capacitance is paramount, and general-purpose surface mount capacitor use in consumer and industrial electronics. The component is not automotive certified, aligning its use to general industrial electronic devices.

Manufactured in Mexico, this KEMET capacitor offers dependable performance supported by established quality protocols. It complies with Class II suppression classifications, providing balanced electrical characteristics suitable for a range of demanding electronic applications.

Capacitance: 680 pF ±5 % tolerance. Voltage rating: 50V dc. Package: 0603 surface mount. Dielectric: C0G for high stability. Operating temperature range: -55°C to 125°C. Construction: Stacked multilayer ceramic. Termination: Solder type.

Packaging: Tape and Reel for automated assembly. Standards complied: J-STD-020, IPC-7351, EIA 624, 556, 481. Country of Origin: Mexico. Explore additional KEMET capacitors and electronic components in the Electronics Components category at EnvMart for tailored solutions to your circuit design requirements.
