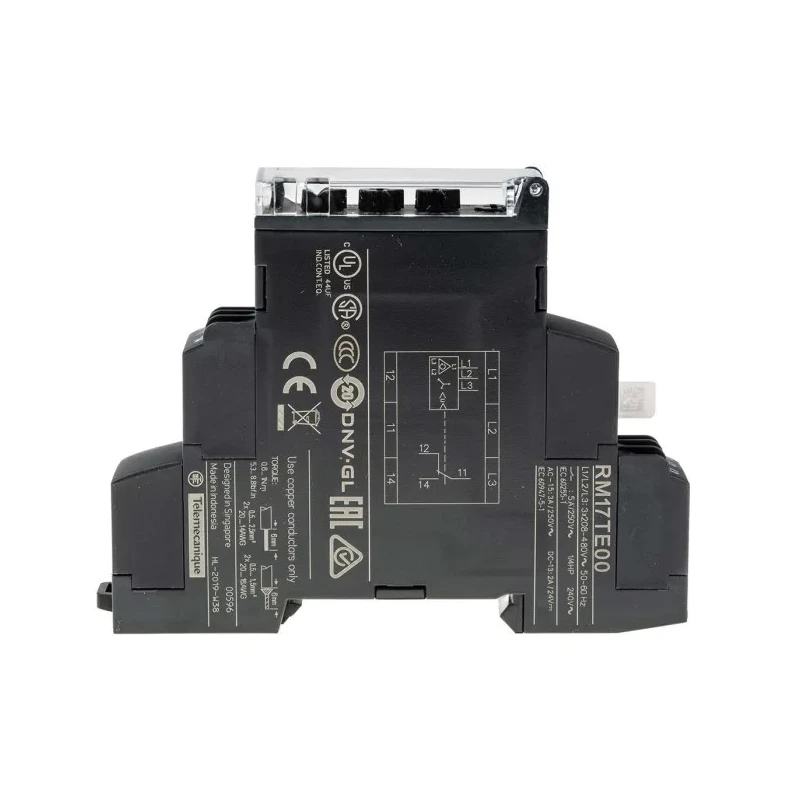

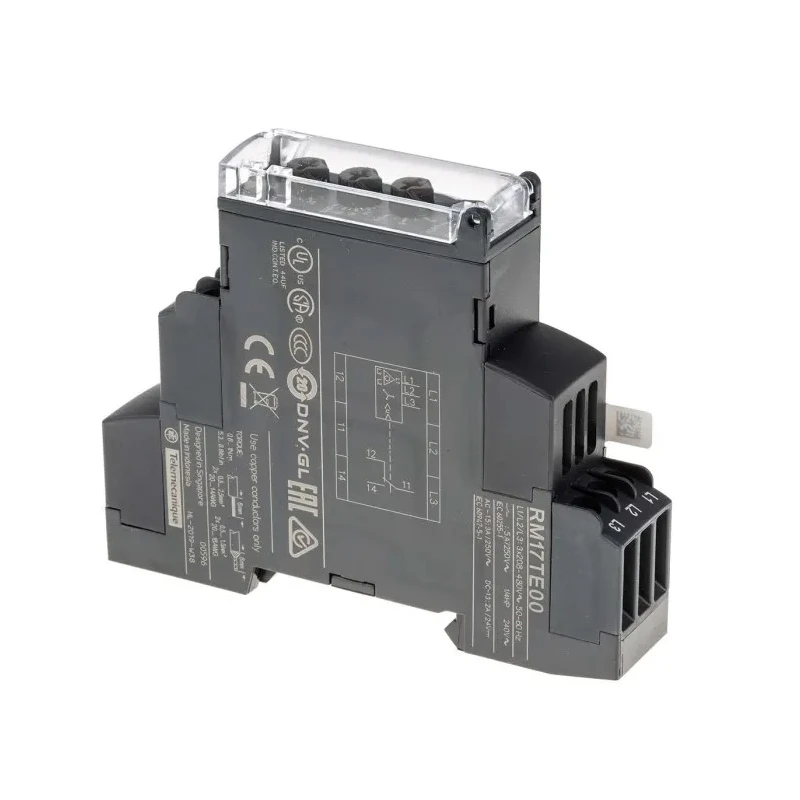

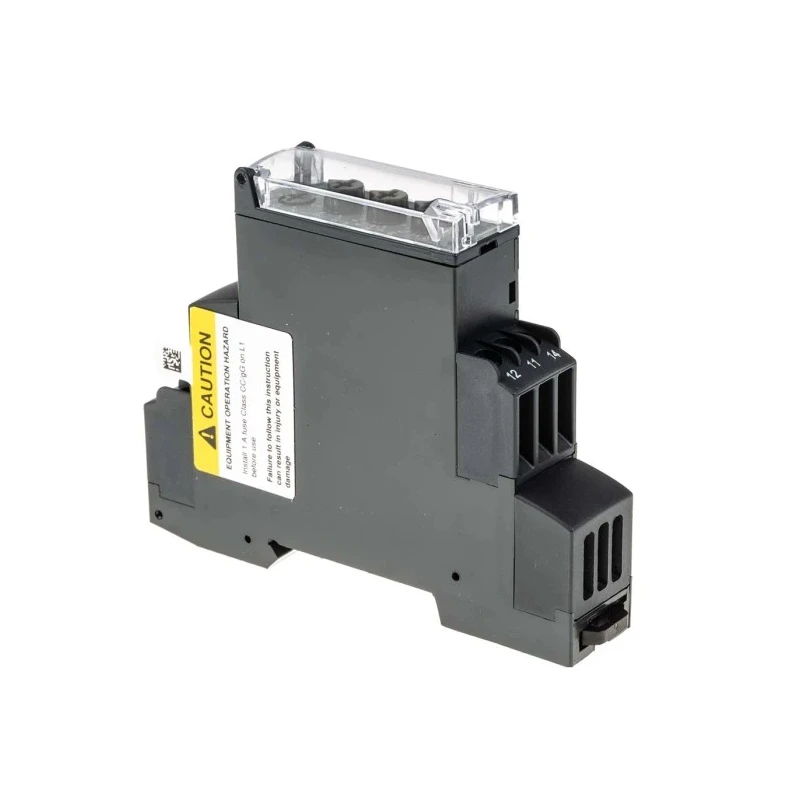

Schneider Electric Monitoring Relay 3 Phase SPDT DIN Rail Mount 480V AC RM17TE00

Schneider Electric RM17TE00 Monitoring Relay is engineered for reliable supervision of three-phase electrical systems, protecting industrial and automation setups from phase failure, voltage fluctuations, and phase asymmetry. Operating at a supply AC voltage of 480V, this relay provides dependable phase sequence monitoring with an SPDT contact configuration mounted conveniently on a DIN rail.

The relay offers an adjustable time delay ranging between 0.1 and 10 seconds allowing precise control over monitoring responses. Its robust design includes screw terminal connections and supports switching voltages up to 250V AC/DC with a contact current rating of 5A. The unit is compact with dimensions of 90mm (height), 17.5mm (width), and 72mm (length), suitable for tight industrial control panels.

Engineered for harsh environments, it performs within a temperature range of -20°C to 50°C and offers protection corresponding to IP20 and IP30 ratings. The device is compliant with key safety and operational standards including CE, CSA, and UL certifications, assuring quality and reliability in monitoring applications.

Applications include phase failure detection in three-phase electrical supplies, industrial automation requiring phase sequence control, and systems needing voltage asymmetry supervision. The Monitoring Relay immediately signals alarms on detection of voltage exceeding thresholds, preventing equipment damage and downtime.

Easy installation on DIN rails and secure screw terminals enable simplified integration into existing electrical control systems. Regular maintenance involving visual inspections and functional tests is recommended to maintain optimal operation and system protection.

Designed for DIN rail mounting ensuring ease of installation. Equipped with screw terminals for secure electrical connections. Provides adjustable time delay from 0.1 to 10 seconds for operational flexibility. Protects against phase failure, sequence errors, undervoltage, and asymmetry.

Capable of handling switching voltage of 250V AC/DC and contact current of 5A. Operating temperature range from -20°C to 50°C for versatile application environments. Compact dimensions with 90mm height, 17.5mm width, and 72mm length.

Complies with CE, CSA, and UL standards ensuring safety and reliability. Explore EnvMart's extensive range of Schneider Electric monitoring devices and relays to enhance your industrial and electrical system protection solutions.
