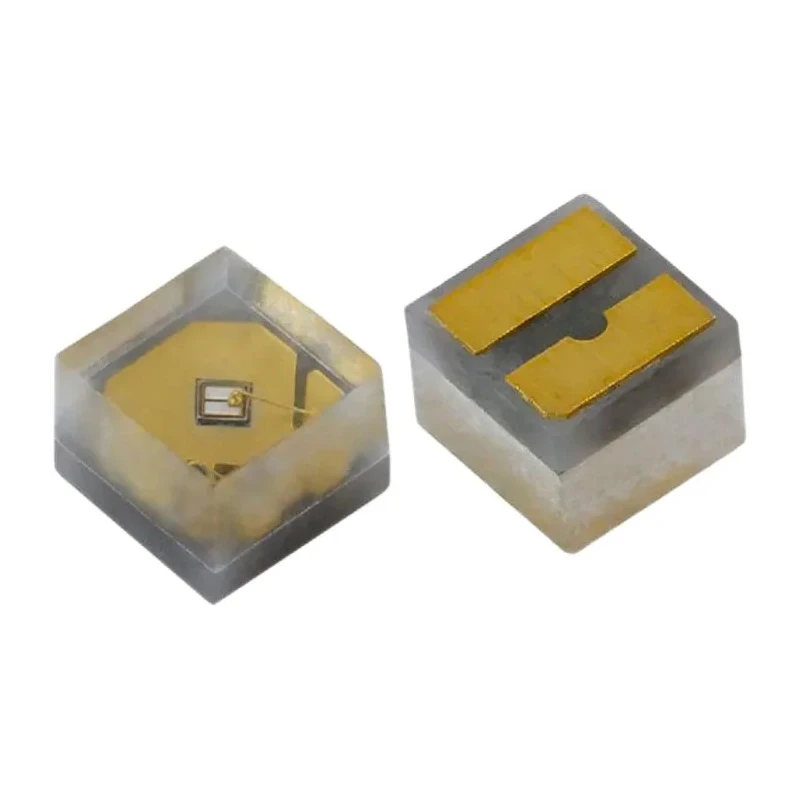

Vishay VLMU1610 Series UV LED 370 nm 50 mW 135 ° Viewing Angle 2-Pin Surface Mount SMT Ceramic Package VLMU1610-365-135

Vishay VLMU1610-365-135 is a high-quality mid power UV LED designed for specialized industrial and commercial applications. Featuring a ceramic surface mount package with a water-clear silicone lens, this device emits UV light at a peak wavelength of 370 nm with a wide viewing angle of 135 °, making it effective for applications requiring broad illumination.

The LED has a compact form factor with dimensions 1.6 mm by 1.6 mm by 1.4 mm, incorporating gold plated leads for optimal soldering and electrical performance. Radiant power ranges typically from 20 mW at 20 mA forward current to 55 mW at 60 mA, providing flexibility for diverse operating conditions.

Designed with InGaN die material, the LED supports forward currents up to 60 mA, ensuring long life with stable output. It is well suited for industrial curing processes, photocatalytic purification, poster printing curing, and medical applications such as nail and teeth curing. Additionally, it serves as an effective tool for counterfeit money detection due to its ultraviolet output.

Users must observe safety guidelines as the emitted ultraviolet light is concentrated and potentially harmful to eyes per IEC 62471 photobiological safety standards. The package is supplied in tape and reel form for streamlined automated assembly processes.

This product is RoHS compliant and manufactured in China, guaranteeing adherence to environmental and quality standards. Vishay's VLMU1610 series exemplifies reliable LED technology optimized for demanding ultraviolet applications.

Packaged in a robust SMT ceramic with square silicone lens for durability. Provides typical radiant power of 20 mW at 20 mA and up to 55 mW at 60 mA forward current. Compact dimensions of 1.6 mm length, 1.6 mm width, and 1.4 mm height.

Gold plated terminations ensure reliable electrical contact. Suitable for industrial curing and photocatalytic purification applications. Emits concentrated ultraviolet light requiring compliance with IEC 62471 safety standards.

Resin is water clear silicone to enhance optical performance and lifetime. Ideal for counterfeit money detection, nail and teeth curing, and poster printing curing. RoHS compliant and manufactured in China.

This UV LED is an essential component for electronics manufacturers and industrial users requiring reliable ultraviolet light sources. Explore more Vishay UV LEDs and related products on EnvMart for advanced optoelectronic solutions.
