| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.7mm |
| Length | 1.7mm |
| Model | EDZVT2R4.7B |
| Mount Type | Surface |
| Series | EDZV |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 150mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 4.7V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 800Ω |

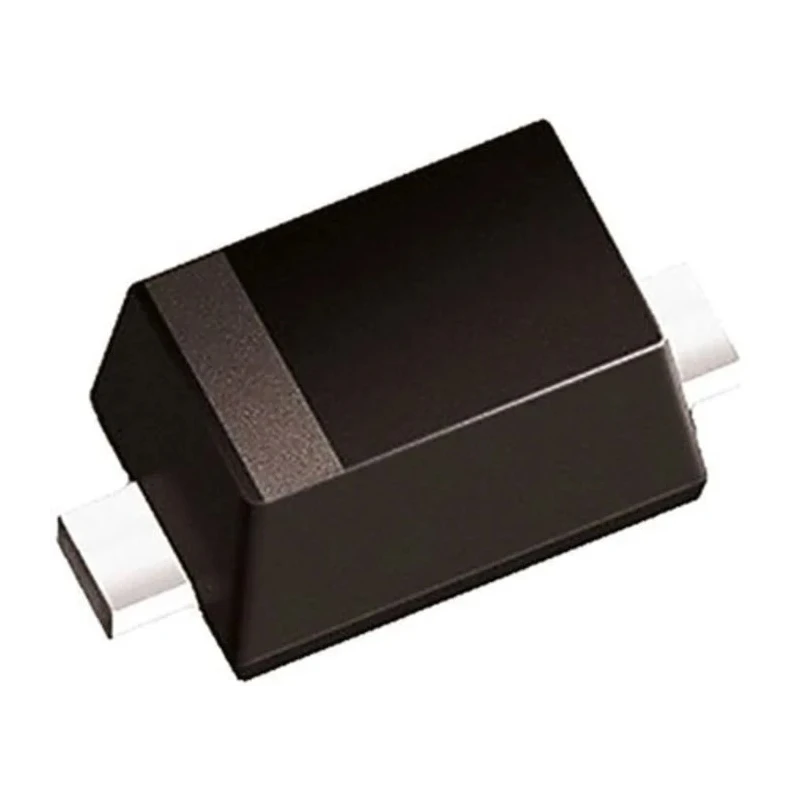

ROHM EDZVT2R4.7B Zener Diode Surface Mount is a high precision single diode designed for voltage regulation applications in electronic circuits. It offers a nominal Zener voltage of 4.7 volts and supports maximum power dissipation up to 150 milliwatts. Packaged in the miniature SOD-523 surface mount form factor, this diode enables compact PCB designs and automated assembly.
This component is engineered with a 2-pin surface mount package suitable for discrete semiconductor applications across automotive, industrial, and consumer electronics. It provides reliable voltage regulation by maintaining a stable voltage level through its voltage regulator Zener type configuration. The maximum impedance of 800 ohms at the test current of 5 milliamps ensures efficient voltage stabilization with minimal power loss.
The maximum reverse leakage current is limited to 2 microamperes, minimizing leakage effects in sensitive circuits. The diode supports operating temperatures up to 150 degrees Celsius, making it robust for demanding thermal environments.
The diode is designed for surface mounting with a compact SOD-523 package. It features low maximum reverse leakage current of 2 microamperes for stable voltage regulation. The maximum operating temperature is 150 degrees Celsius ensuring reliable performance.
Designed as a voltage regulator with a 2-pin configuration suitable for discrete semiconductor applications. The diode has a maximum Zener impedance of 800 ohms and is tested at 5 mA test current.
This ROHM Zener Diode supports applications in industrial electronics, power supply protection, and precision voltage regulation circuits. Its compact size and robust electrical properties make it ideal for use in consumer electronics, telecommunications equipment, and automotive electronics systems. It represents a vital semiconductor component for ensuring voltage stability and protecting sensitive devices from voltage fluctuations.
