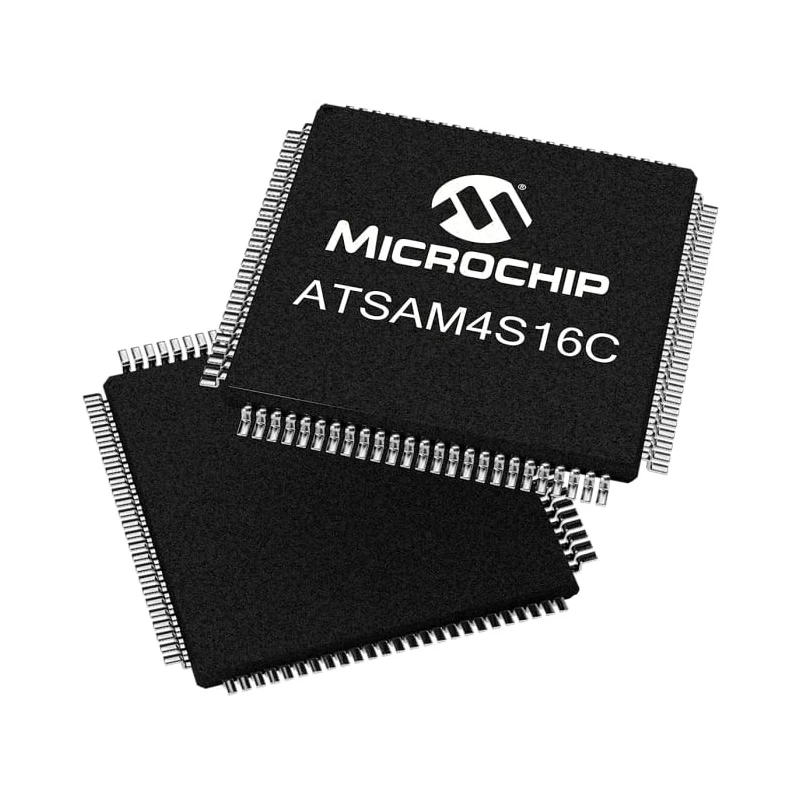

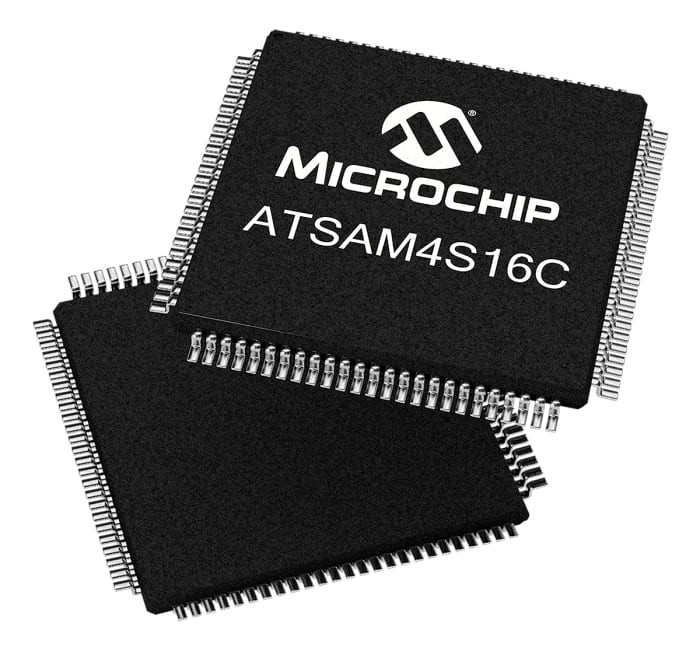

Microchip 32 bit ARM Cortex M4 SAM4S Microcontroller 120 MHz 1.024MB FLASH 100-Pin LQFP ATSAM4S16CA-AU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.45mm |
| Length | 14mm |
| Model | ATSAM4S16CA-AU |
| Width | 14mm |
| Mount Type | Surface |
| Series | SAM4S |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128kB |
| Interface Type | USART, UART, SPI, RTC, PWM, I2C |
| Standards/Approvals | TFBGA |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.62V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 1.024MB |
| Maximum Clock Frequency | 120MHz |
| Analogue Comparators | 1 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 10 Bit |
Key Features
- Equipped with ARM Cortex M4 core for high performance.
- Features 1.024MB of FLASH program memory for extensive application code.
- Supports multiple interfaces including USART, UART, SPI, RTC, PWM, and I2C.
- Operates within voltage range of 1.62V to 3.6V for varied power supply conditions.
- Designed for operation in a temperature range from -40°C to 85°C.
- Compact 14mm x 14mm package with a height of 1.45mm facilitates space-efficient PCB design.
- Includes 16 ADC channels and 10-bit DACs for precise analog signal processing.
- Incorporates hardware code protection enhancing security of firmware.
Product Description
Microchip ATSAM4S16CA-AU is a 32 bit ARM Cortex M4 microcontroller designed to deliver scalable performance and high memory density. With a maximum clock frequency of 120 MHz, it provides fast processing capabilities suited for complex embedded applications.
The device integrates 1.024MB of FLASH program memory and 128kB of RAM, facilitating larger code execution and data handling. It supports multiple communication interfaces such as USART, UART, SPI, RTC, PWM, and I2C, enabling flexible connectivity in embedded systems.
This microcontroller operates within a supply voltage range of 1.62V to 3.6V and withstands operating temperatures from -40°C to 85°C, ensuring reliability in harsh industrial environments. The package type is 100-Pin LQFP with a 14mm x 14mm footprint and 1.45mm height, optimizing board space usage.
Additional features include 16 channels of 12-bit ADCs and 10-bit DACs, along with a hardware code protection mechanism for firmware security. Its surface mount design facilitates integration in automated manufacturing processes.
The Microchip SAM4S series is widely used in industrial automation, automotive embedded systems, HVAC control, and other electronics manufacturing sectors where robust and efficient MCU performance is critical.
ARM Cortex M4 core for high performance. 1.024MB FLASH memory with 128kB RAM for extensive application needs. Multiple interfaces like USART, UART, SPI, RTC, PWM, and I2C support diverse communication. Wide operating voltage from 1.62V to 3.6V for versatile power solutions.
Operational temperature range -40°C to 85°C ensures durability in demanding environments. Compact 100-Pin LQFP package with 14mm dimensions and 1.45mm height. 16 ADC channels and 10-bit DACs enable refined analog processing.
Hardware code protection secures embedded firmware. Surface mount type eases automated assembly and production efficiency. Applicable in industrial, automotive, and electronics embedded systems.
Explore more in the Electronics & Electricals category of EnvMart to find related Microcontrollers by Microchip and other leading brands, supporting advanced embedded system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 120 MHz, providing fast processing capabilities for complex applications.
It operates within a supply voltage range of 1.62V to 3.6V, allowing for versatile power supply options.
This microcontroller is equipped with 1.024MB of FLASH program memory for extensive application code.
It supports multiple interfaces including USART, UART, SPI, RTC, PWM, and I2C, enabling flexible connectivity in embedded systems.
The ATSAM4S16CA-AU operates within a temperature range from -40°C to 85°C, ensuring reliability in harsh environments.
It comes in a 100-Pin LQFP package with dimensions of 14mm x 14mm and a height of 1.45mm, optimizing board space usage.
This microcontroller includes 16 channels of 12-bit ADCs for precise analog signal processing.
Yes, it incorporates hardware code protection to enhance the security of the firmware.
It features 128kB of RAM, facilitating larger code execution and data handling.
The mount type is surface mount, which eases automated assembly and production efficiency.
It utilizes a RISC instruction set architecture, which is typical for ARM Cortex processors.
This microcontroller is widely used in industrial automation, automotive embedded systems, and HVAC control, among other sectors.
