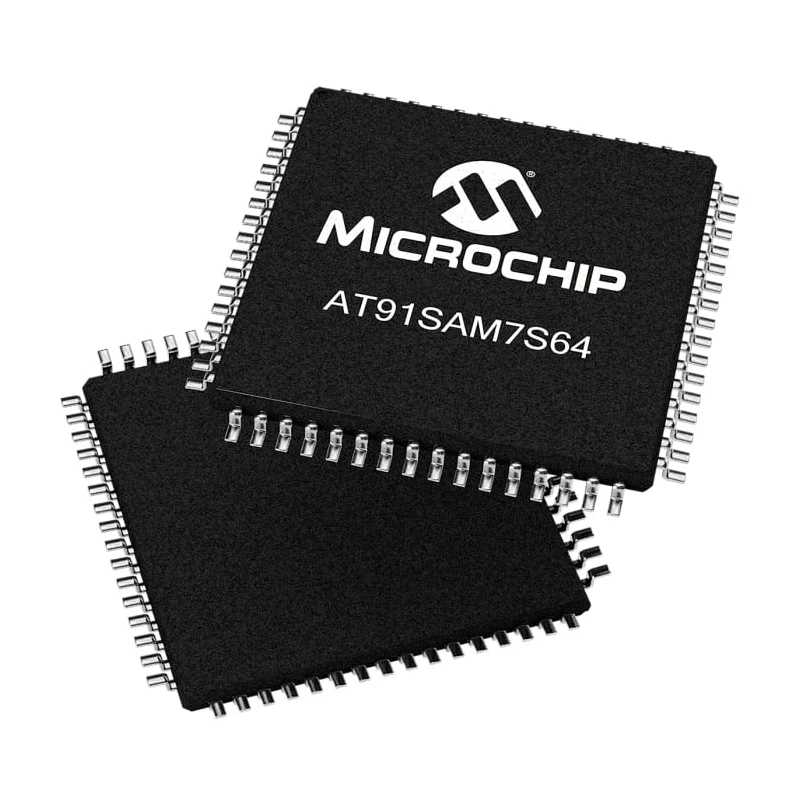

Microchip 32 bit ARM7TDMI AT91 Microcontroller 55 MHz 64kB FLASH 64-Pin LQFP AT91SAM7S64C-AU
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.45mm |
| Length | 10mm |
| Model | AT91SAM7S64C-AU |
| Width | 10mm |
| Mount Type | Surface |
| Series | AT91 |
| Maximum Operating Temperature | +85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Device Core | ARM7TDMI |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 55MHz |
| Number of Programmable I/Os | 32 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Based on ARM7TDMI core with 32-bit data bus width for efficient processing.
- Includes 16kB RAM and 64kB FLASH program memory for versatile application development.
- Operates between 3V to 3.6V with -40°C to +85°C temperature range ensuring robustness.
- Features 8-channel 10-bit ADC and 32 programmable I/O pins for flexible interfacing.
- Compact 10mm × 10mm footprint and 1.45mm height suitable for surface mount applications.
- Supports single timer and RISC instruction set architecture for streamlined control.
- Designed and manufactured in Thailand assuring quality and reliability.
Product Description
Microchip AT91SAM7S64C-AU is a 32-bit ARM7TDMI Flash microcontroller that provides high-speed performance at 55 MHz clock frequency. Equipped with 64kB FLASH memory and 16kB RAM, it supports complex embedded applications in industrial, electronic, and communication systems.
This microcontroller is packaged in a 64-pin Low-profile Quad Flat Package (LQFP) measuring 10mm by 10mm, with a minimal height of 1.45mm, ideal for compact PCB designs. It operates reliably within a voltage range of 3V to 3.6V and can withstand ambient temperatures ranging from -40°C to +85°C.
The device core is ARM7TDMI with a 32-bit data bus width featuring an 8-channel 10-bit analog-to-digital converter (ADC), allowing for accurate sensor interfacing and signal acquisition. It also provides 32 programmable input/output pins and a timer for scheduling and control tasks. The architecture follows a RISC instruction set ensuring efficient instruction execution and reduced power consumption.
This microcontroller is designed for surface mounting, making it suitable for applications in embedded industrial control, automotive systems, consumer electronics, and real-time processing tasks. Produced in Thailand, it adheres to high manufacturing standards despite lacking explicit certifications or automotive standards.
Based on ARM7TDMI core with 32-bit data bus width for efficient processing. Includes 16kB RAM and 64kB FLASH program memory for versatile application development. Operates between 3V to 3.6V with -40°C to +85°C temperature range ensuring robustness.
Features 8-channel 10-bit ADC and 32 programmable I/O pins for flexible interfacing. Compact 10mm × 10mm footprint and 1.45mm height suitable for surface mount applications. Supports single timer and RISC instruction set architecture for streamlined control.
Designed and manufactured in Thailand assuring quality and reliability.
This microcontroller is recommended for use in embedded electronic systems, industrial automation, communication devices, and real-time control applications where performance and stability are critical.
Explore more Microcontroller options and technical resources on EnvMart to optimize your electronic designs with reliable and high-performance components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 55 MHz.
It features a program memory size of 64kB FLASH.
The operating voltage range is between 3V and 3.6V.
This microcontroller operates reliably within a temperature range of -40°C to +85°C.
It has 32 programmable input/output pins for flexible interfacing.
It is packaged in a 64-pin Low-profile Quad Flat Package (LQFP).
The microcontroller has a height of 1.45mm and a footprint of 10mm x 10mm.
It features an 8-channel 10-bit analog-to-digital converter (ADC).
It utilizes a RISC instruction set architecture for efficient processing.
This microcontroller includes 16kB of RAM.
It is designed and manufactured in Thailand.
This model includes one timer for scheduling and control tasks.
