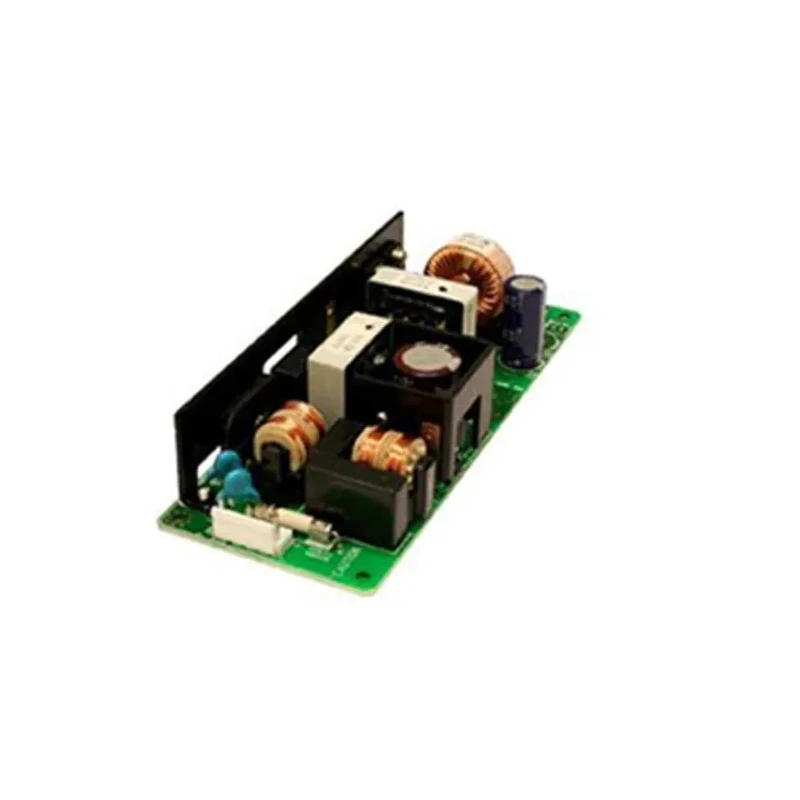

TDK-Lambda Switching Power Supply 12V DC 75.6W 6.3A Chassis Mount ZWS75BAF-12/A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | TDK-Lambda |
| Power | 75.6W |
| Efficiency | 85% |
| Length | 180mm |
| Model | ZWS75BAF-12/A |
| Depth | 45mm |
| Gross Weight | 230g |
| Width | 45mm |
| Mount Type | Chassis |
| Series | ZWS75BAF |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 265V dc |
| EMC Compliance | EN55011/EN55022-B, FCC-B, VCCI-B |
| Maximum Output Voltage | 12V dc |
| SMPS Output Current | 6.3A |
| Minimum Input Voltage | 85V ac |
| PFC compliance | Meets EN61000-3-2 (Typically 0.98/0.93) |
Key Features
- Compact size with dimensions 180mm length, 45mm width, and 45mm depth.
- Wide input voltage range with minimum 85V AC and maximum 370V DC/265V AC.
- High efficiency rating at 85% ensuring energy savings.
- Operates in temperatures from -10°C to 70°C for reliable industrial use.
- Complies with multiple international standards including CE, FCC Class B, and IEC/UL/CSA/EN 62368-1.
- Active power factor correction for improved power quality.
- Convection cooled design with over current and over voltage protection.
- 3kVac input to output isolation enhances safety and reliability.
Product Description
TDK-Lambda ZWS75BAF-12/A Switching Power Supply is a reliable, compact, chassis-mounted unit providing 12V DC output at 75.6W power with a maximum output current of 6.3A. This switching power supply supports a wide input voltage range from 85V AC up to 370V DC or 265V AC, allowing versatility across diverse industrial environments.
The unit features high efficiency of 85%, contributing to energy savings and reduced heat generation. It operates reliably within a broad temperature range of -10°C to 70°C, supported by a convection cooled design which obviates the need for additional cooling mechanisms.
Designed with active power factor correction (PFC), it meets EN61000-3-2 standards with typical PF values of 0.98 and 0.93, improving power quality. Safety and EMC standards compliance includes CE, EN 55011, EN 55022-B, FCC Class B, VCCI-B, and IEC/UL/CSA/EN 62368-1 certifications, ensuring dependable operation within stringent regulatory requirements.
The power supply incorporates comprehensive protections including over current and over voltage protections and features 3kVac isolation between input and output circuits enhancing operational safety in demanding industrial and commercial settings.
Its compact dimensions of 180mm length, 45mm width, and 45mm depth allow easy integration into existing panels or control systems. The 230g lightweight construction facilitates handling and installation in automation equipment, test and measurement devices, LED signage, and light industrial machinery.
Compact size facilitates installation in confined spaces. Wide input voltage range ensures compatibility with various power sources. High efficiency contributes to lower energy consumption. Robust EMC and safety certifications support industrial usage.
Thermal and electrical protections improve reliability and lifespan. Active power factor correction optimizes power usage. Convection cooling negates need for fans or external cooling. 3kVac isolation safeguards sensitive electronics.
Suitable for factory automation and testing equipment applications.
This product is shipped new and manufactured in Malaysia, providing a trusted source for power supply needs in industrial and commercial equipment. For comprehensive power supply solutions, explore our switching power supply range at EnvMart.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 12V DC output with a maximum output current of 6.3A.
The power rating of this unit is 75.6W.
It has an efficiency rating of 85%, contributing to energy savings.
The unit supports a wide input voltage range from 85V AC to 370V DC or 265V AC.
The dimensions of this model are 180mm in length, 45mm in width, and 45mm in depth.
It operates reliably within a temperature range of -10°C to 70°C.
Yes, it complies with multiple international standards including CE, FCC Class B, and IEC/UL/CSA/EN 62368-1.
It features a convection cooled design, eliminating the need for additional cooling mechanisms.
This unit includes over current and over voltage protections, enhancing operational safety.
The gross weight of this model is 230g.
Yes, it is suitable for factory automation and testing equipment applications.
This power supply is manufactured in Malaysia.
