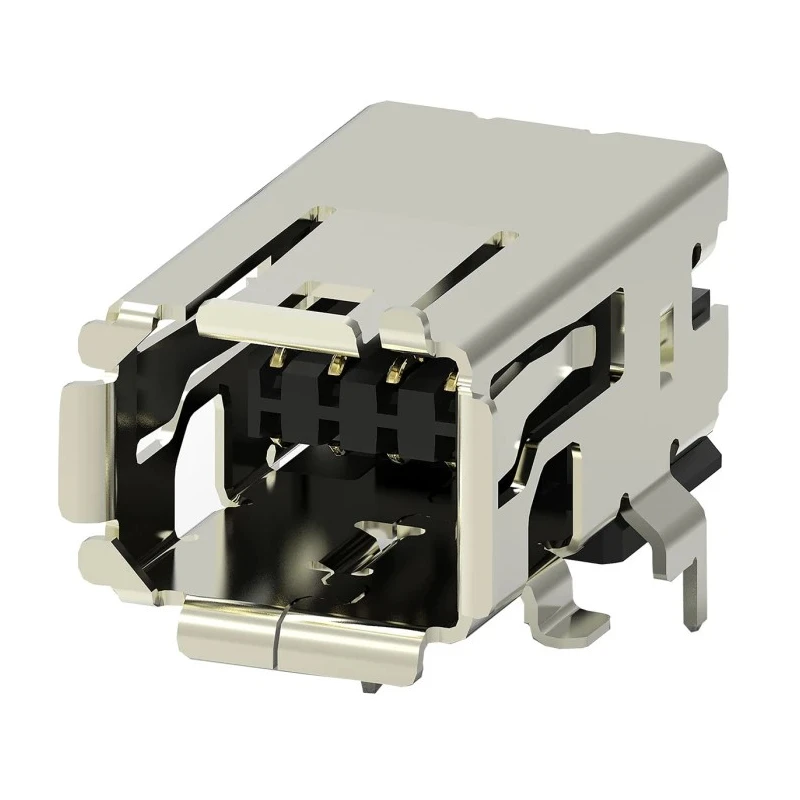

TE Connectivity Mini I/O Connector Type I Surface Mount Right Angle Female 8 Way Shielded 2294417-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Right Angle |
| Height | 7.36mm |
| Depth | 14mm |
| IP Rating | IP30, IP20 |
| Connector Type | Jack |
| Number Of Ways | 8 |
| Width | 9.81mm |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Gold |
| Series | Type I |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Shield Type | Shielded |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Compact design saves board space by being one-quarter the size of conventional RJ45 connectors.
- Right angle orientation facilitates flexible PCB mounting configurations.
- Surface mount type ensures easy assembly and solder termination.
- Shielded construction enhances signal integrity and reduces electromagnetic interference.
- Gold contact material ensures reliable and corrosion-resistant connections.
- Rated IP30 and IP20 for protection in appropriate environments.
- Thermoplastic housing provides durability with lightweight construction.
- Designed with a two-point contact system for secure mating and vibration resistance.
Product Description
TE Connectivity 2294417-1 Mini I/O Connector is a Type I series female jack connector featuring 8 ways, designed specifically for surface mount PCB applications with a right angle orientation. It is shielded to provide interference protection and has a compact form factor, measuring 7.36mm height, 9.81mm width, and 14mm depth. The connector housing is made from thermoplastic, and it uses gold contacts for reliable electrical connections.
This connector offers a compact footprint that is one-quarter the size of traditional RJ45 connectors, enabling efficient use of PCB space. Its two-point contact system secures the connection to prevent accidental disconnection especially in high vibration environments, reducing downtime in industrial settings.
The IP30 and IP20 ratings ensure that it is suitable for controlled industrial, electronics manufacturing, automation, and robotics environments where protection from dust and physical contact is required but not water immersion.
Applications for this TE Connectivity connector include programmable logic controllers (PLCs), motion and drive systems, robotics, and industrial communication networks where robust and secure miniature I/O connections are needed.
Compact and space-saving design reduces PCB space requirements. Right angle and surface mount for versatile PCB layout. Shielded to prevent electromagnetic interference. Gold contacts enhance corrosion resistance and conductivity.
Thermoplastic housing combines durability with lightweight properties. Two-point contact system secures connection against vibration loss. IP30 and IP20 ingress protection ratings for industrial compliance. Ideal for industrial control and communication systems.
Explore more TE Connectivity Connectors and industrial electronic components at EnvMart for diverse manufacturing, automation, and electronics assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a height of 7.36 mm, a width of 9.81 mm, and a depth of 14 mm.
It features a right angle orientation, which facilitates flexible PCB mounting configurations.
The connector uses solder termination for secure connections.
It is rated IP30 and IP20, providing protection against dust and physical contact in controlled environments.
The housing is made from thermoplastic, and it features gold contacts for reliable electrical connections.
This model has 8 ways, allowing for multiple connections in a compact design.
Yes, it is shielded to enhance signal integrity and reduce electromagnetic interference.
It is suitable for applications in programmable logic controllers (PLCs), motion and drive systems, robotics, and industrial communication networks.
It is a Type I series female jack connector designed for surface mount PCB applications.
The two-point contact system secures the connection against accidental disconnection, especially in high vibration environments.
The connector is black in color.
The country of origin for this connector is China.
