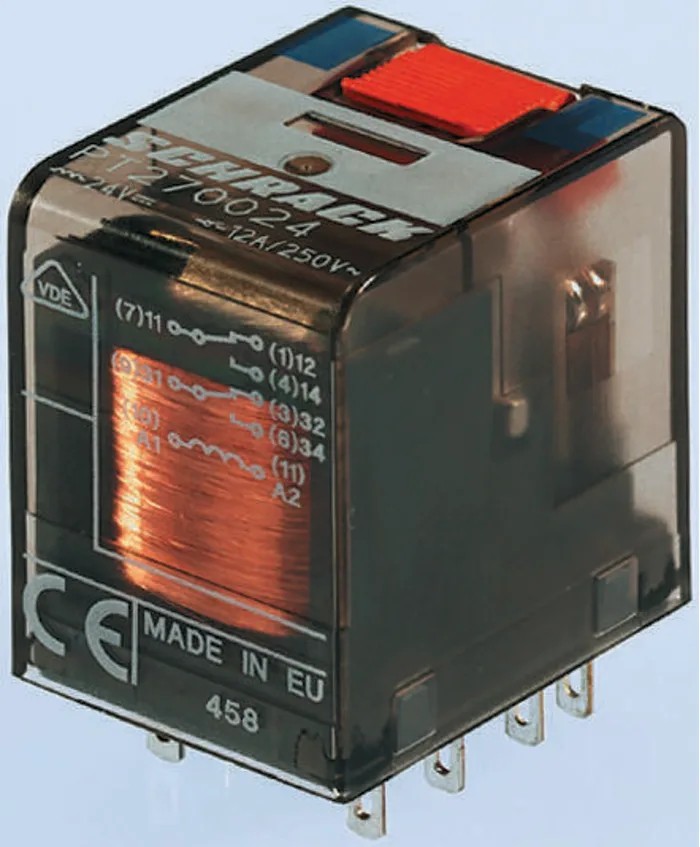

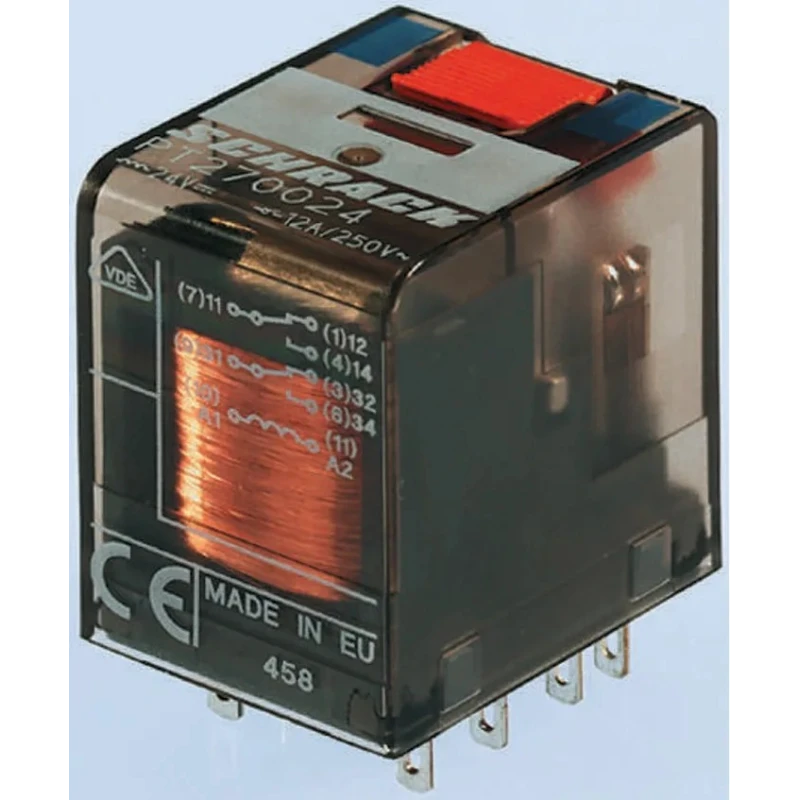

TE Connectivity PCB Power Relay 48V AC Coil 6A Switching Current 4PDT PT570548 8-1419111-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 35mm |
| Length | 28mm |
| Model | PT570548 8-1419111-8 |
| Width | 28mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Quick Connect |
| Standards/Approvals | VDE, UL, RoHS, IEC |
| Coil Resistance | 777Ω |
| Coil Voltage | 48V ac |
| Switching AC Voltage | 240V ac |
| Isolation Coil To Contact | 2.5kV(ac) |
Key Features
- Designed for PCB mounting with quick connect terminals for easy installation.
- Operating temperature range from -40°C to 70°C ensures reliable performance in various environments.
- Coil resistance is 777Ω with a switching power of 1.5 kVA, suitable for AC applications up to 240V.
- Contacts made from silver nickel alloy with cadmium-free construction for durability and environmental compliance.
- Mechanical indicator and LED with manual lockable test facility for status monitoring and testing.
- Isolation between coil and contacts rated at 2.5 kV AC to ensure electrical isolation safety.
- Compact dimensions of 28mm (L) x 28mm (W) x 35mm (H) ideal for space-constrained designs.
- Complies with VDE, UL, RoHS, and IEC standards for quality and safety assurance.
Product Description
TE Connectivity PT570548 8-1419111-8 is a high-performance PCB power relay equipped with a 48V AC coil and a switching current rating of 6A. The 4PDT (four pole double throw) contact configuration supports multiple circuit switching requirements, making it suitable for industrial, electrical automation, and control applications.
Designed specifically for PCB mounting, this relay comes with quick connect terminals enabling straightforward integration into complex electrical systems. Its coil resistance of 777Ω and switching power of 1.5 kVA Accommodate demanding load switching at voltages up to 240V AC.
The relay is built with silver nickel alloy cadmium-free contacts to ensure long service life and environmental compliance. A mechanical indicator alongside an LED provides visible status information and includes a manual lockable test feature allowing for easy system diagnostics and maintenance.
Operating reliably in temperatures from -40°C to 70°C, this component suits harsh environmental conditions encountered in manufacturing, industrial automation, HVAC controls, and electrical power distribution systems.
Safety is enhanced with a coil-to-contact isolation withstand of 2.5 kV AC. The relay dimensions of 28mm length, 28mm width, and 35mm height support compact design requirements. PCB mounting with quick connect terminals.
48V AC coil voltage with 6A switching current capacity. 4PDT contact configuration for versatile switching. Durable silver nickel alloy cadmium-free contacts. Mechanical indicator and LED for operational status. Manual lockable test facility included.
Wide operating temperature range (-40°C to 70°C). Compliant with VDE, UL, RoHS and IEC standards. 2.5 kV AC coil to contact isolation for safety. Compact form factor suitable for industrial applications.
This power relay is ideal for industrial electrical systems, automation controls, HVAC equipment, and other manufacturing or laboratory apparatus requiring reliable switching. It represents a robust solution from TE Connectivity known for performance and safety.
Explore the variety of TE Connectivity products and Power Relays at EnvMart for your electric and automation needs.
