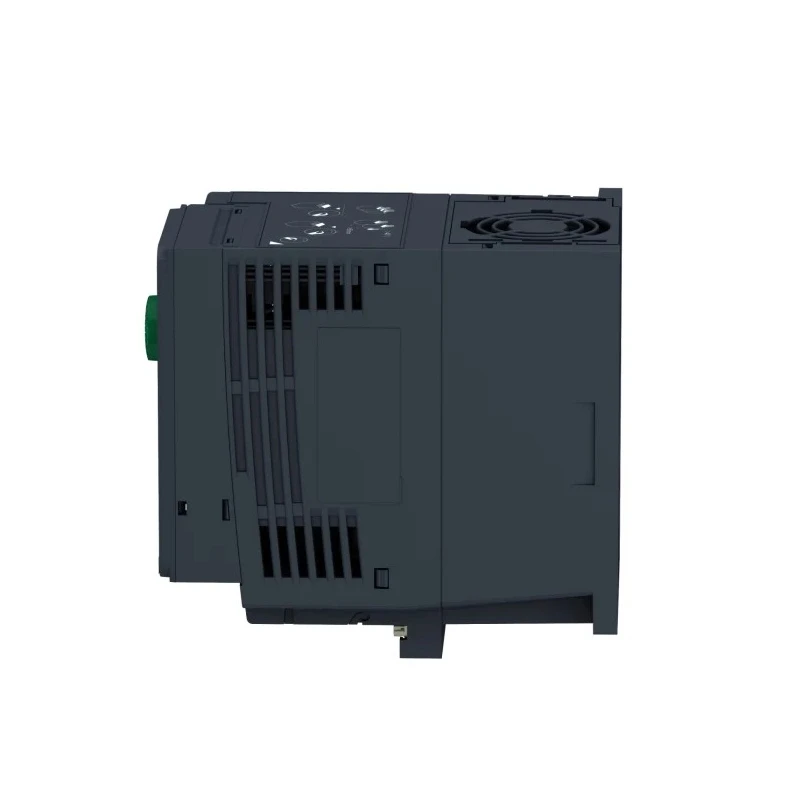

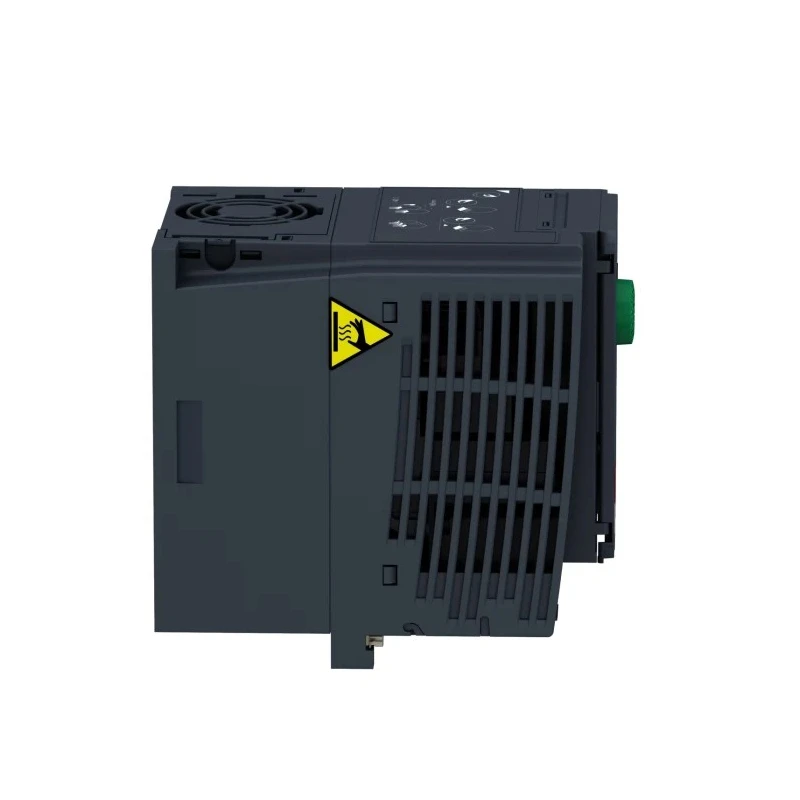

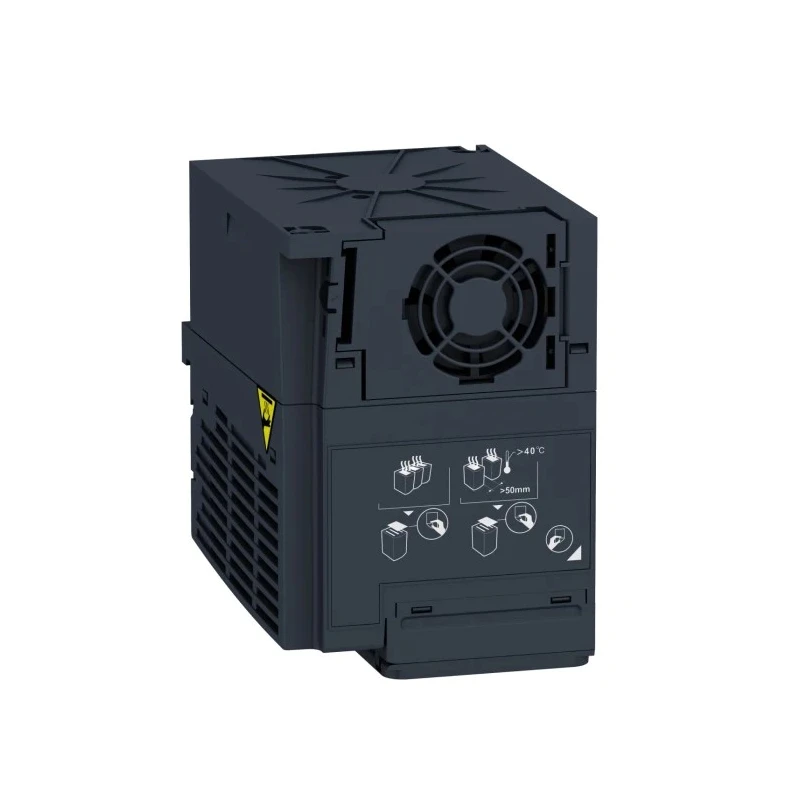

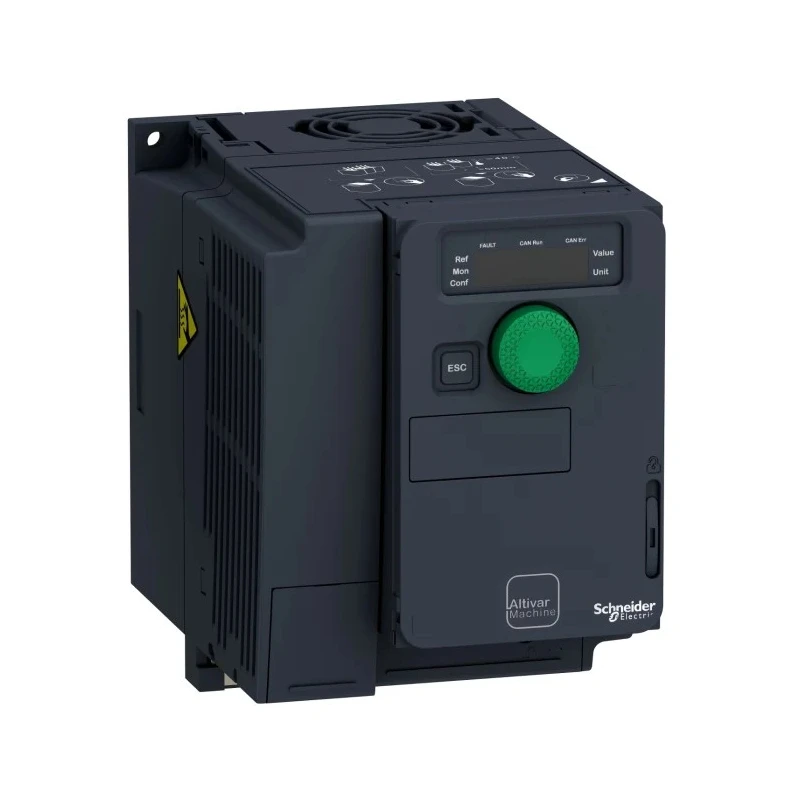

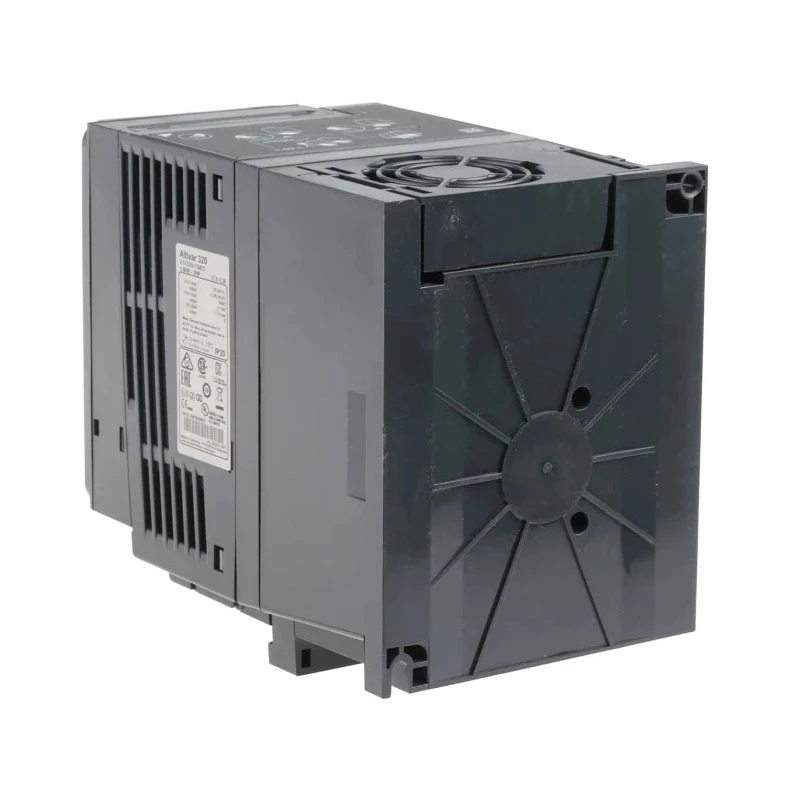

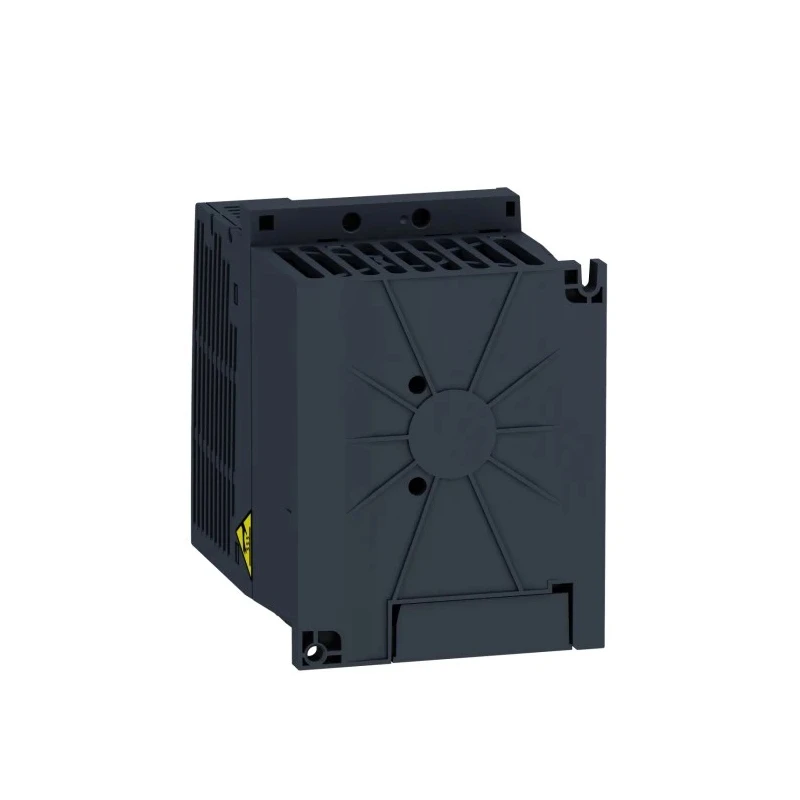

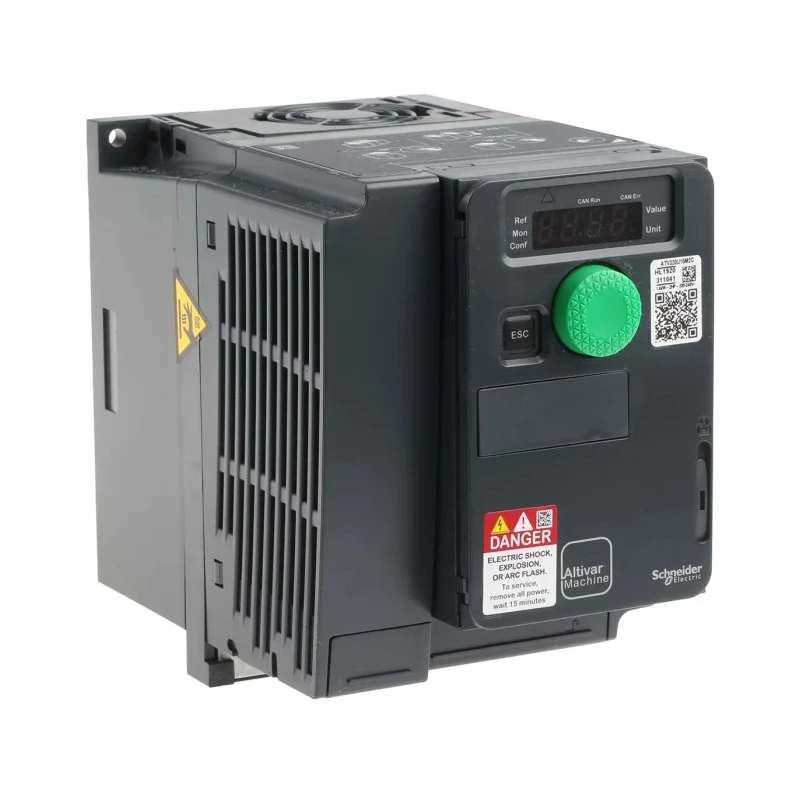

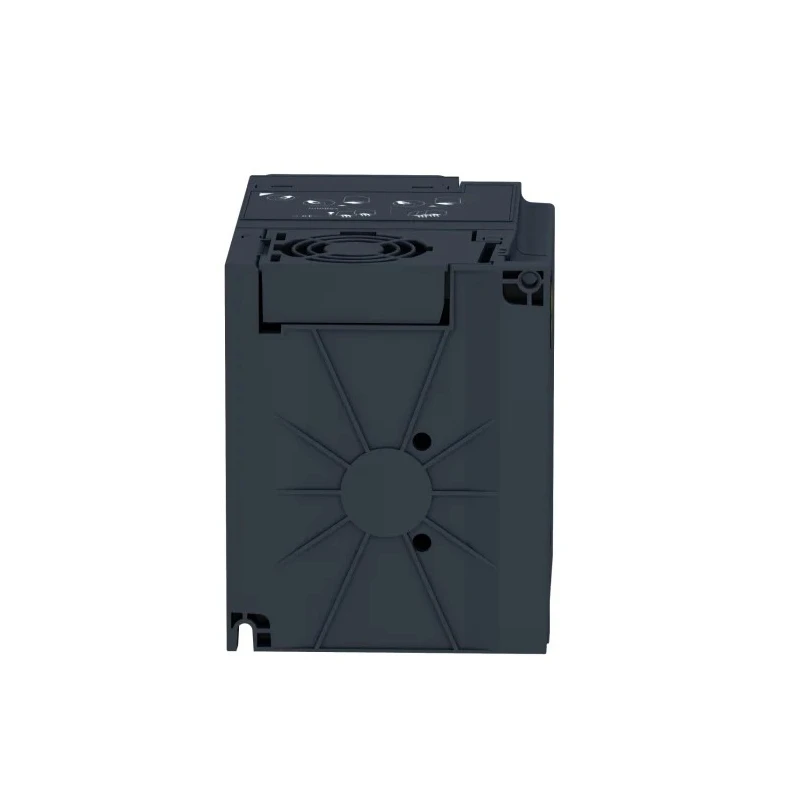

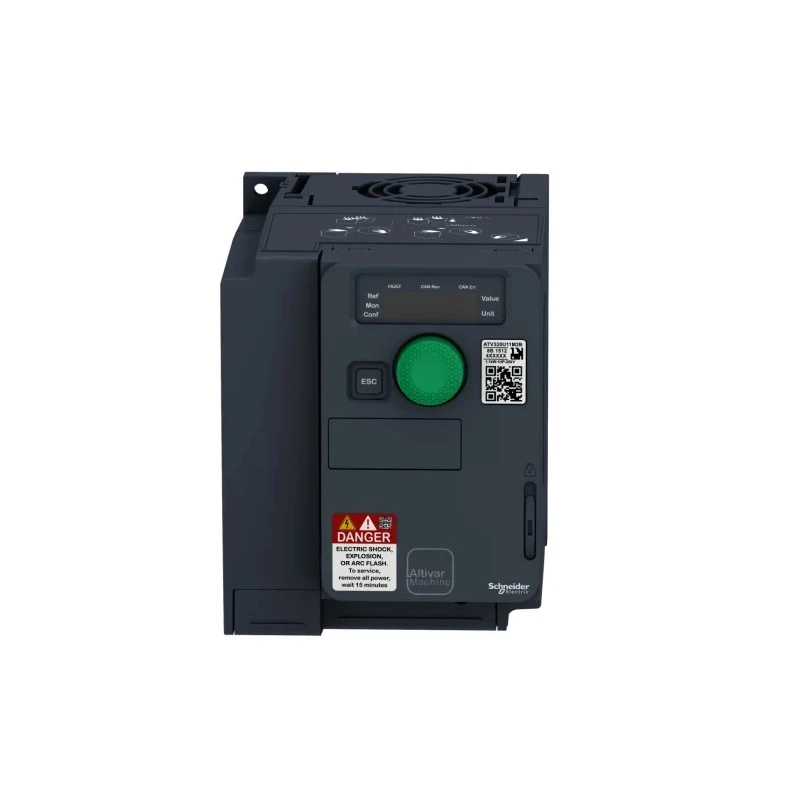

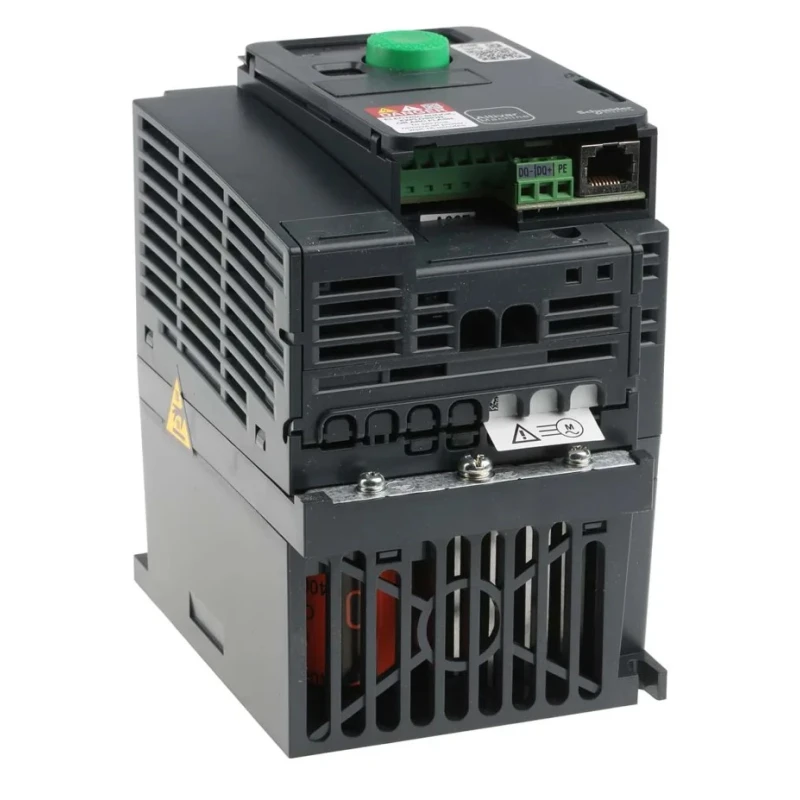

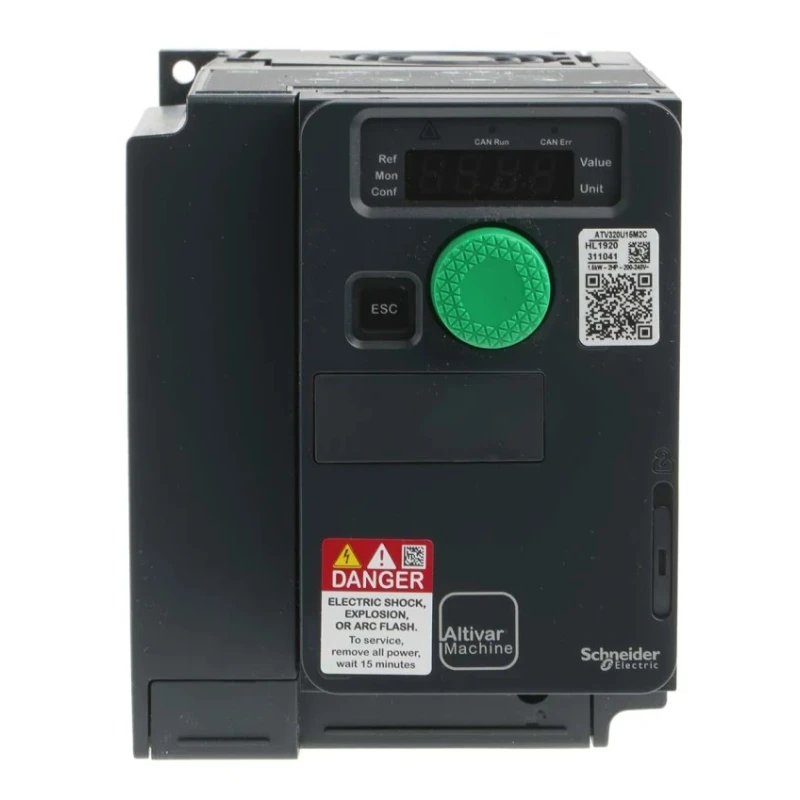

Schneider Electric Variable Speed Drive Altivar Series, 1.5 kW, 1 Phase, 230V AC, 8 A ATV320U15M2C

Schneider Electric ATV320U15M2C is a Variable Speed Drive from the Altivar Series offering 1.5 kW power and single-phase 230V AC supply suitable for precise motor speed and torque control.

This device supports both synchronous and asynchronous motors and features a compact DIN rail mount design with dimensions 142mm (depth) x 105mm (length) x 158mm (width), making it ideal for installations with limited space.

Its IP20 rating ensures finger-safe protection by preventing contact with live parts greater than 12.5mm, ensuring safe operation in industrial and commercial applications. The drive operates reliably over an ambient temperature range from -10°C to 50°C and includes an integrated fan to prevent overheating during demanding use cases.

It delivers a maximum output current of 8A and supports a wide output frequency range between 0.1 Hz and 599 Hz, enabling fine control over motor speed for a variety of applications.

Designed for flexibility, the drive supports communication protocols such as Modbus and CANopen, and can be further enhanced with an Ethernet Powerlink card for wireless configuration and communication.

This product meets multiple international standards and approvals including CE, CSA, cUL, EAC, EN 954-1, EN ISO 13849-1 & 2, IEC 60204-1, IEC 61000 series, IEC 61158, IEC 61508, IEC 61784, IEC/EN 60721, NOM 117, RCM, and UL ensuring quality and safety compliance.

Commonly applied in industrial automation, motor control in machinery, HVAC systems, chemical laboratories, and medical equipment, this variable frequency drive delivers energy-efficient performance and enhanced motor protection.

Compact DIN rail mount design measuring 142mm depth, 105mm length, and 158mm width. Compatible with synchronous and asynchronous motors, enhancing versatility. Operates within a wide temperature range from -10°C to 50°C ensuring durability.

IP20 rated for finger-safe protection against objects larger than 12.5mm. Integrated fan prevents overheating, providing reliable continuous operation. Configurable via Modbus, CANopen, and Ethernet Powerlink for flexible communication.

Supports output frequency range from 0.1 Hz to 599 Hz for precise speed regulation. Certified with multiple standards including CE, CSA, UL, IEC, and EN for industrial compliance. Lightweight at 1.6 kg for easy installation and maintenance.
