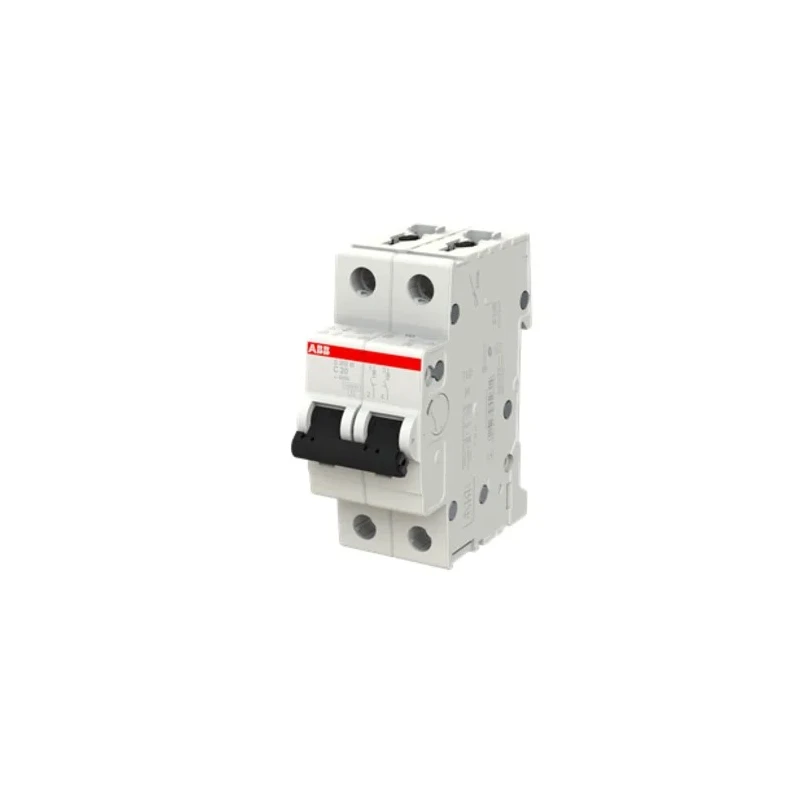

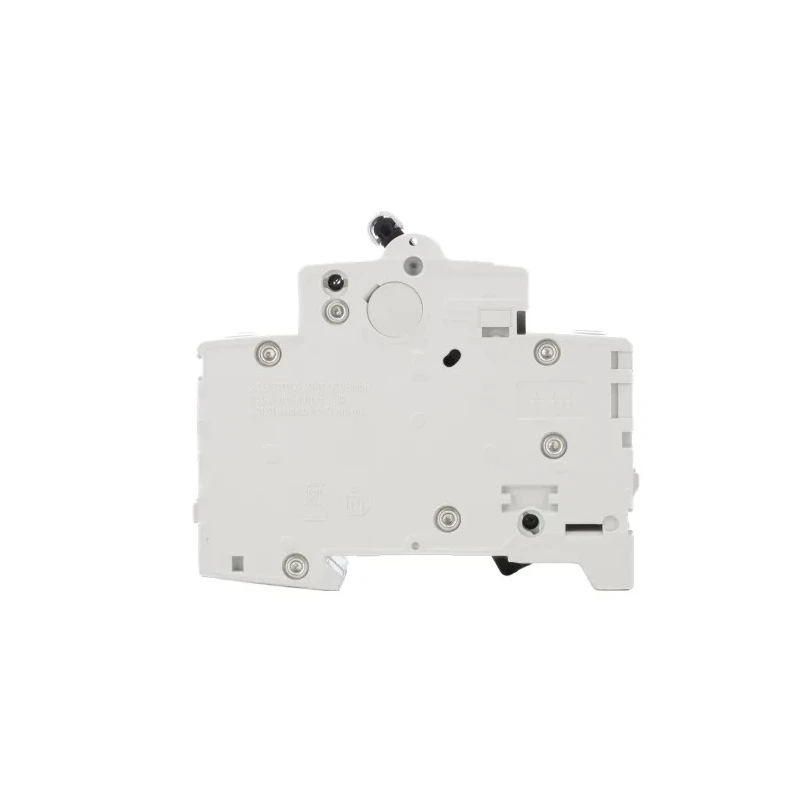

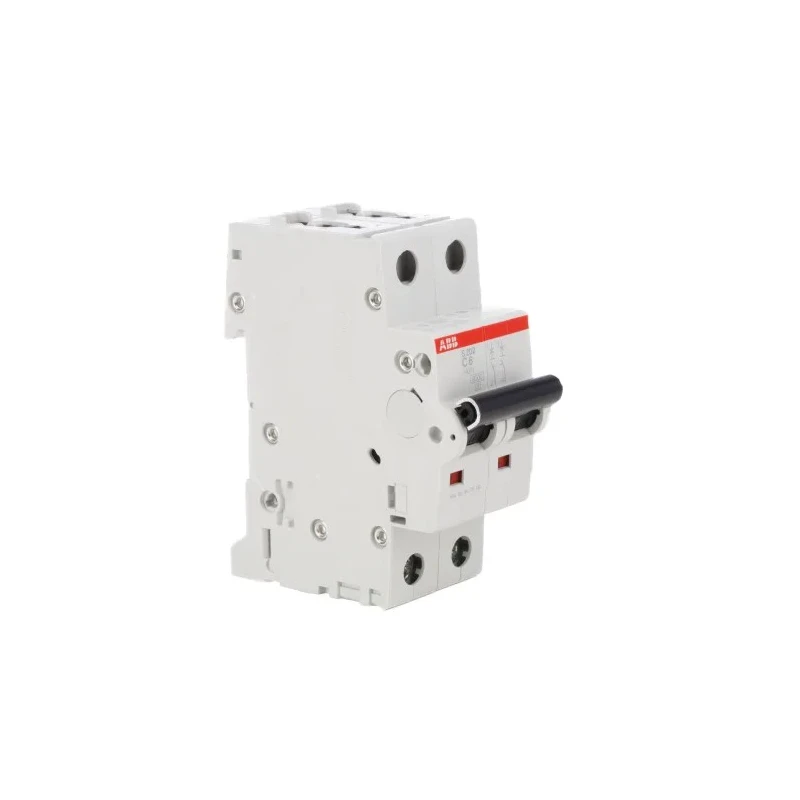

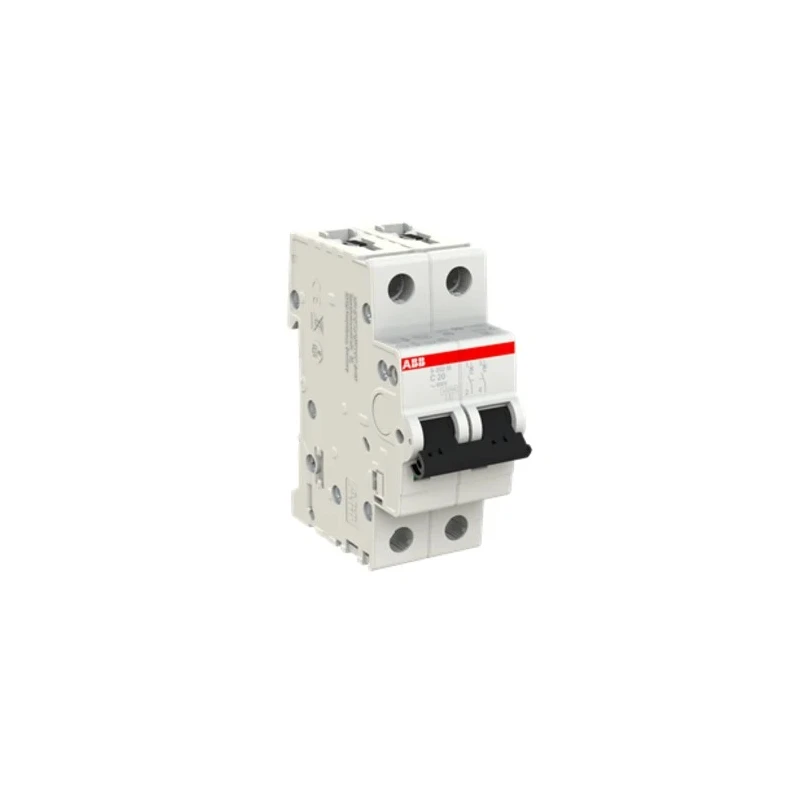

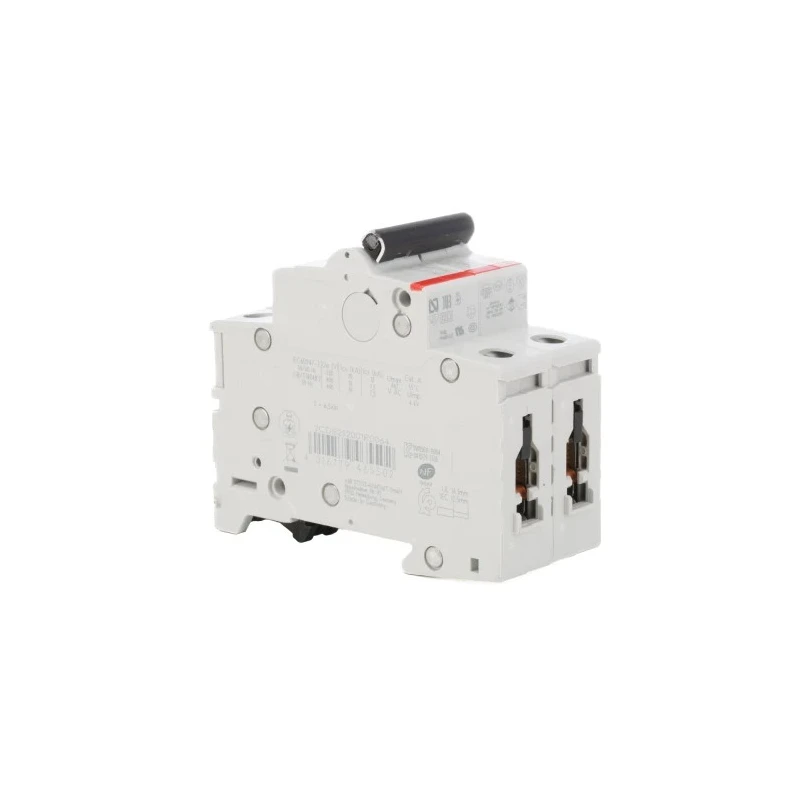

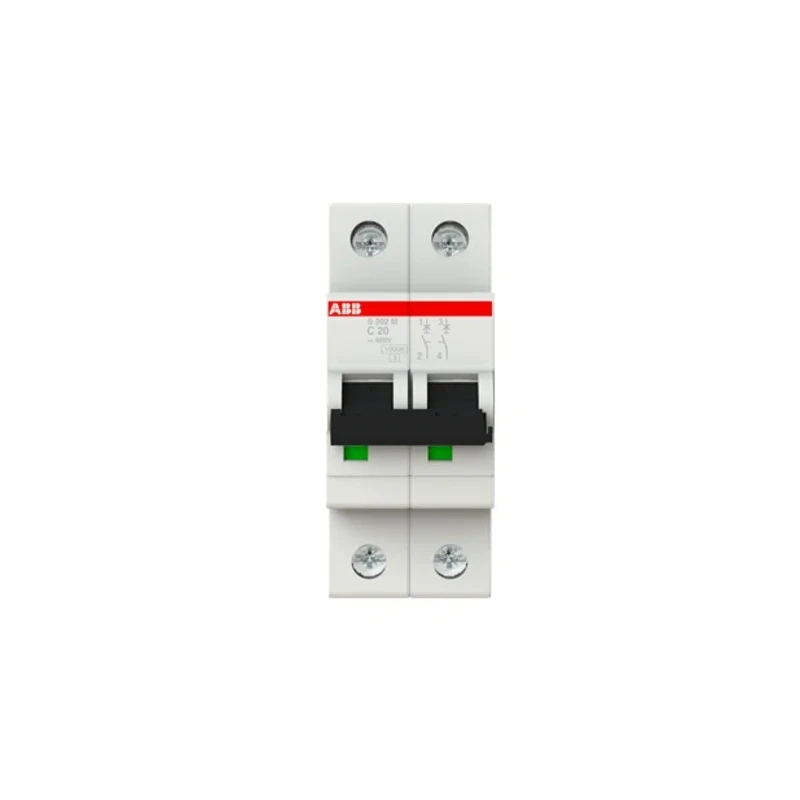

ABB System Pro M Compact S200M Miniature Circuit Breaker, 2-Pole, 20A, Type C, 440V AC, 125V DC 2CDS272001R0204 S202M-C20

ABB 2CDS272001R0204 S202M-C20 System Pro M Compact S200M Miniature Circuit Breaker is engineered for reliable overload and short circuit protection in industrial, commercial, and residential electrical installations. Rated at 20 amperes with a Type C tripping characteristic, it ensures fast disconnection when electrical currents reach five to ten times the rated load, safeguarding sensitive equipment.

This 2-pole MCB supports both alternating and direct current applications with voltage ratings of 440 V AC and 125 V DC respectively. Its electro-mechanical thermomagnetic and electromagnetic tripping mechanisms offer precise response to electrical faults. The high breaking capacity of 10 kA makes it suitable for demanding industrial distribution boards and commercial circuits.

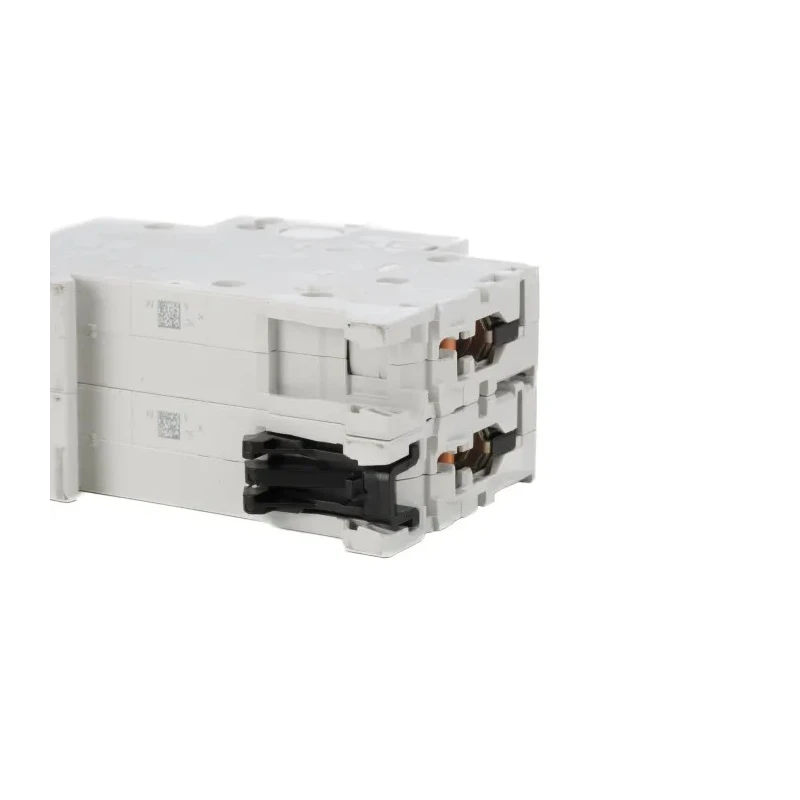

The compact form factor measures 111 mm in height, 35 mm in width, and 76 mm in depth, allowing efficient use of DIN rail space. The device includes cage terminal type connections with wide openings accommodating wire sizes up to 35 mm², ensuring flexible and secure wiring. The finger-proof housing (IP20, IP40) improves safety during installation and maintenance, while red and green visual indicators enable quick status verification.

Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards, this miniature circuit breaker is built to meet global quality and safety requirements. Its robust design withstands industrial vibrations and shocks, with an electrical and mechanical lifespan of approximately 20,000 cycles.

Applications include industrial distribution boards, commercial installations, and residential building controls. Designed for DIN rail mounting, it can be quickly installed in any position on standard 35 mm rails with rear clips. The System Pro M Compact series offers extensive MCB options for diverse applications, saving space and enhancing system protection.

Rated for 440V AC and 125V DC, supporting diverse power needs. Thermomagnetic and electromagnetic tripping mechanisms ensure prompt and accurate breaking. High breaking capacity of 10 kA for industrial-grade safety. Compact DIN Rail mount design with 111mm height and 35mm width for space efficiency.

Wide terminal opening accommodates solid, stranded, or flexible wires up to 35mm². Indicators with red and green colors provide clear visual status of the breaker. IP20 and IP40 rated finger-proof housing for safe installation and operation.

Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards for quality and safety. Explore the full range of ABB Miniature Circuit Breakers at EnvMart to find the ideal solution for your electrical protection needs.
