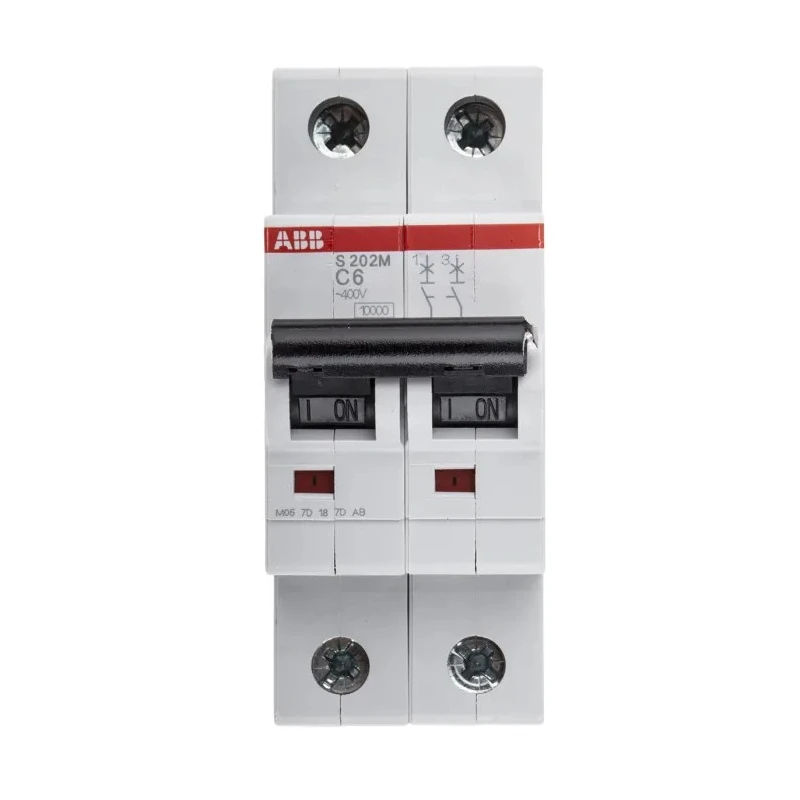

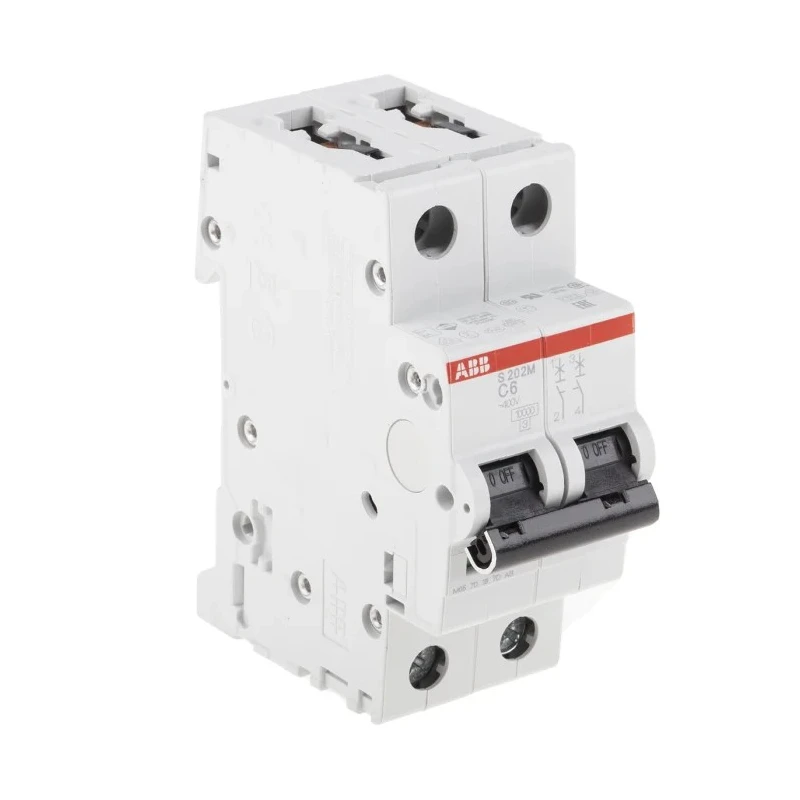

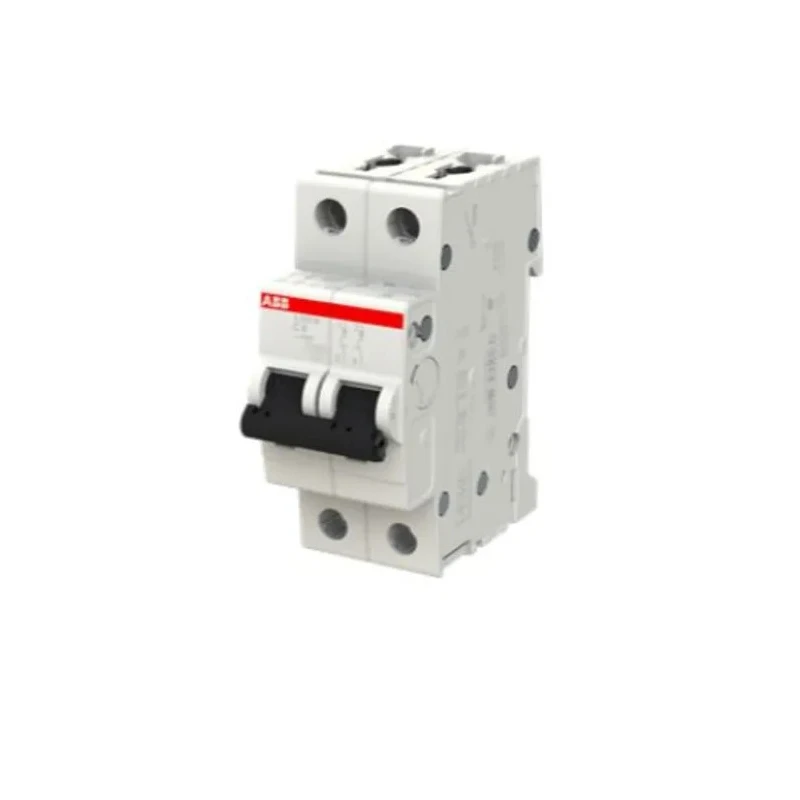

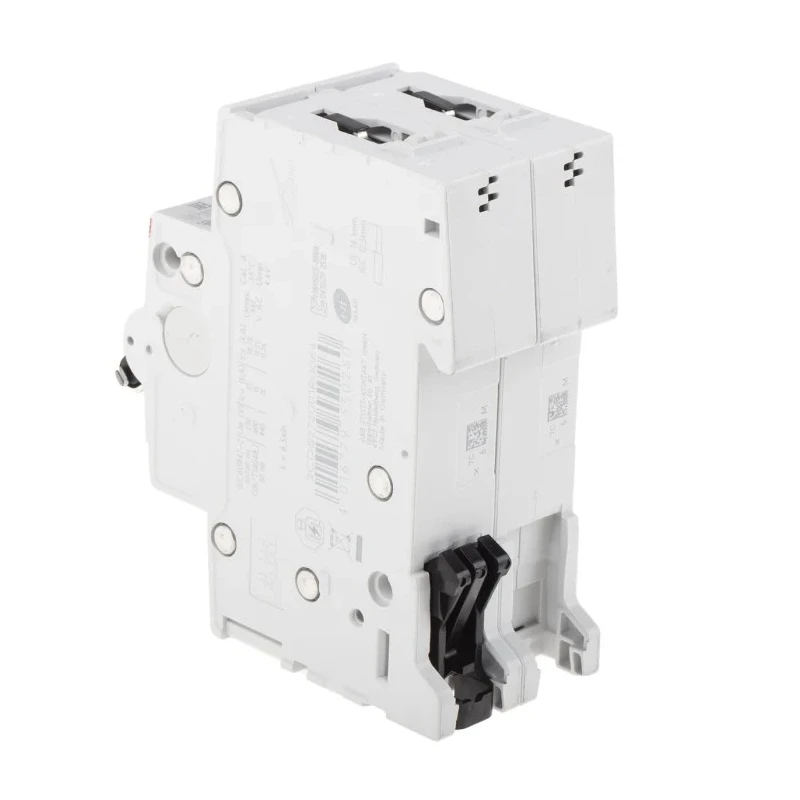

ABB System Pro M Compact S200M Miniature Circuit Breaker, 2-Pole, 6A, Type C, 440V AC, 125V DC, 10 2CDS272001R0064 S202M-C6

ABB 2CDS272001R0064 S202M-C6 Miniature Circuit Breaker from the System Pro M Compact S200M series is a robust 2-pole device designed for efficient circuit protection in industrial and domestic electrical installations. With a current rating of 6A, it features both electromagnetic and thermomagnetic tripping mechanisms for short circuit and overload protection, respectively.

This MCB supports operations at 440V AC and 125V DC and has a breaking capacity of 10 kA, making it ideal for applications that require reliable disconnection under fault conditions.

The device’s compact size (111mm height, 35mm width, 76mm depth) allows easy integration inside crowded electrical enclosures with cage terminal type for secure wiring connections. It is designed for DIN rail mounting facilitating quick installation and maintenance.

It offers an ingress protection of IP20 and IP40, which ensures safety by preventing contact with live parts and ingress of solid foreign objects. The product complies with international standards IEC/EN 60947-2 and IEC/EN 60898-1, certifying its suitability for use in various environments, including automotive, industrial automation, and domestic appliances.

The type C tripping characteristic means the MCB activates between 5 to 10 times its rated current, suitable for inductive loads with higher inrush currents such as fluorescent lighting and motors. Its mechanical endurance of 20,000 operation cycles guarantees durability and operational reliability.

Designed for DIN rail mounting with secure cage terminals for easy installation. Equipped with electromagnetic and thermomagnetic tripping mechanisms. Compact with dimensions 111 x 35 x 76 mm. Rated current 6A, Type C tripping curve for inductive load protection.

Protection ratings IP20 and IP40 for safety against contact and dust. Breaking capacity of 10 kA to safely interrupt fault currents. Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards. Suitable for domestic, automotive, and industrial applications.

Robust mechanical life of 20,000 electrical and mechanical cycles for long service life. Explore the full range of ABB System Pro M Compact Miniature Circuit Breakers for reliable electrical protection solutions at EnvMart.
