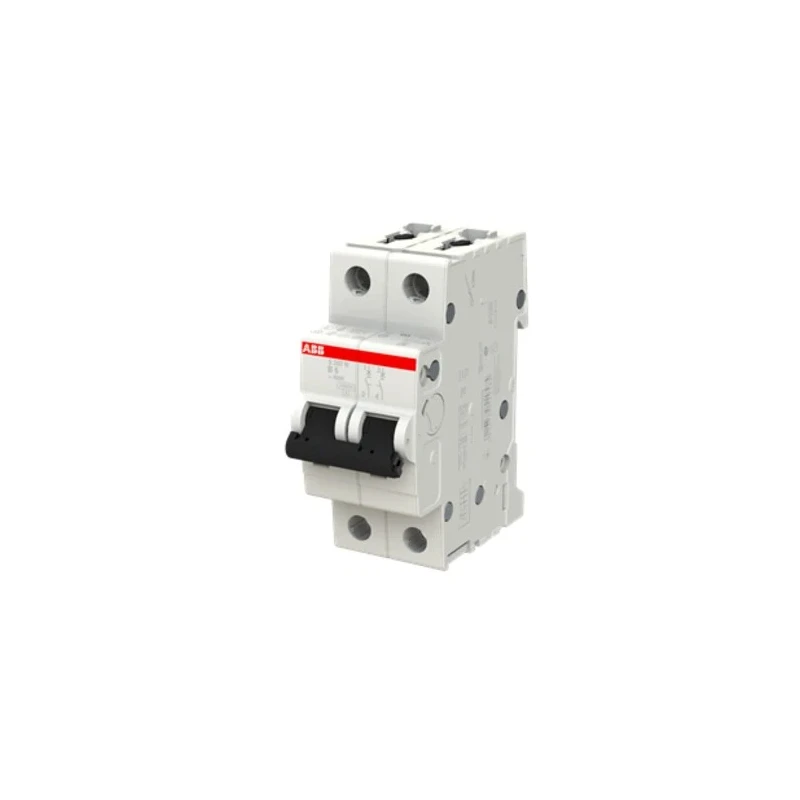

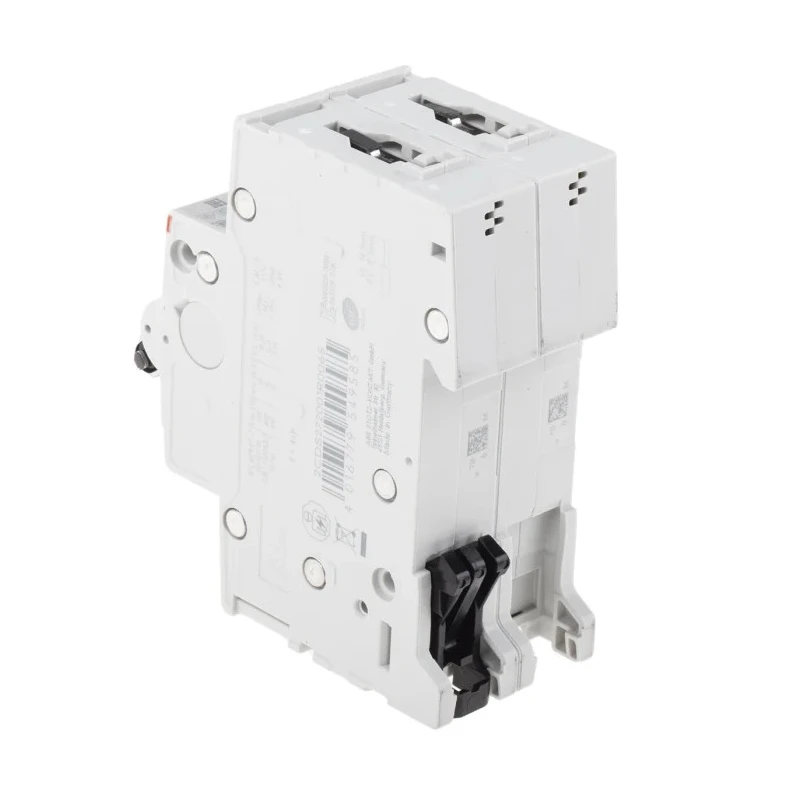

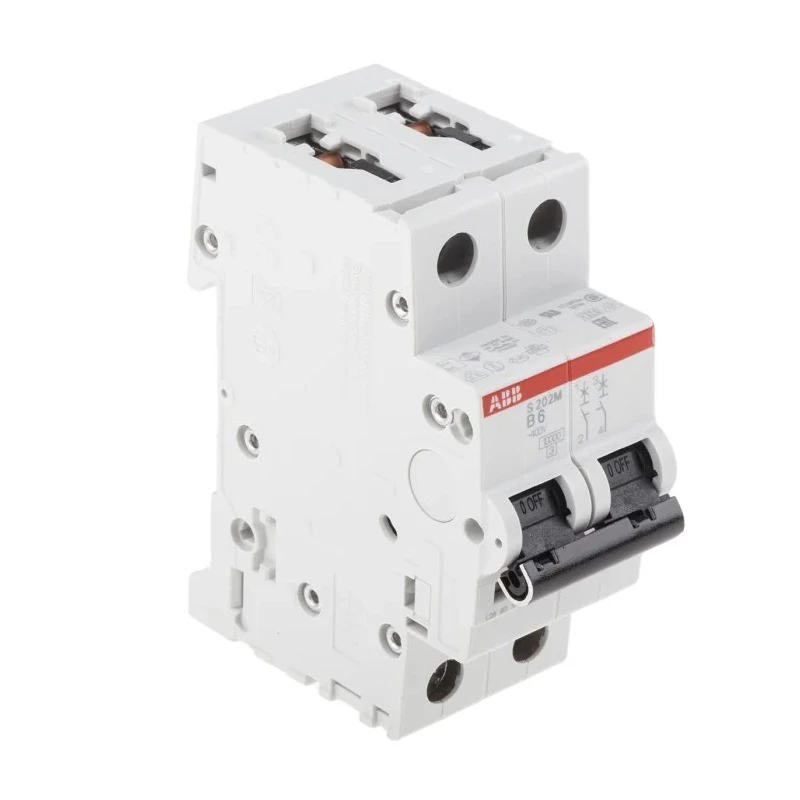

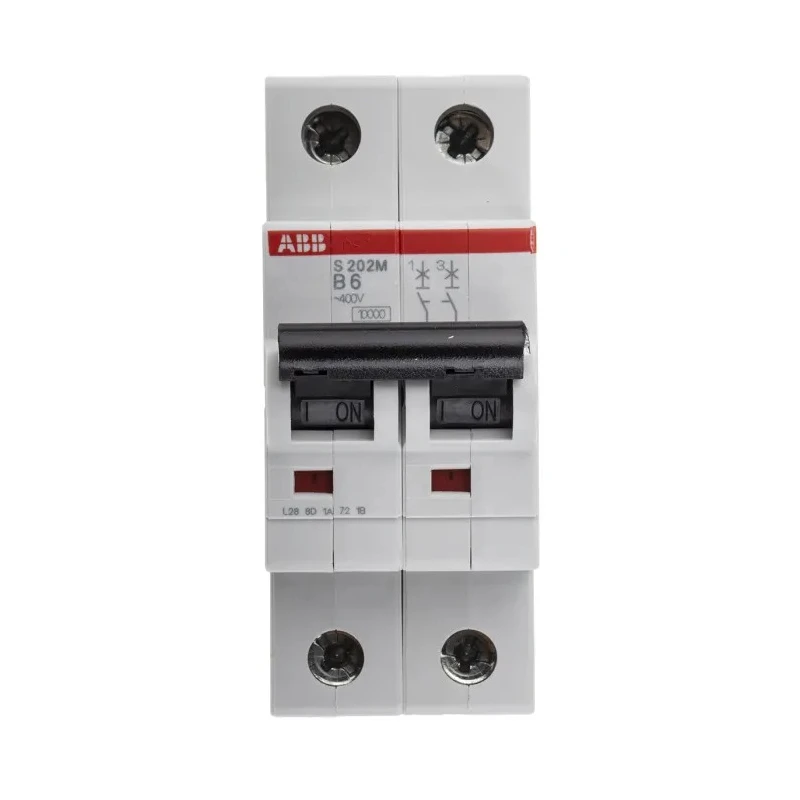

ABB System Pro M Compact S200M Miniature Circuit Breaker, 2-Pole, 6A, Type B, 440V AC, 125V DC 2CDS272001R0065 S202M-B6

ABB 2CDS272001R0065 S202M-B6 is a System Pro M Compact S200M Miniature Circuit Breaker engineered for protection of electrical circuits in residential, commercial, and industrial environments. This 2-pole MCB provides reliable overload and short circuit protection with a current rating of 6A and type B tripping characteristic.

Its compact size of 88mm height, 35mm width, and 76mm depth allows easy installation on DIN rails, even in tightly spaced enclosures. The device utilizes thermomagnetic and electromagnetic tripping mechanisms to act quickly and effectively under fault conditions, protecting wiring and connected equipment from damage.

The breaking capacity of 10kA ensures it can safely interrupt fault currents without damage, making it suitable for use in low-voltage systems with rated AC voltage up to 440V and DC voltage up to 125V. The cage terminal design assures secure and failsafe wiring, enhancing installation safety. IP40 and IP20 ratings afford protection against ingress of solids and accidental contact, maintaining durability and user safety.

The MCB integrates a visual ON/OFF indication with red and green indicators for easy status verification. It also supports the addition of auxiliary contacts fitted at the base, saving space on the DIN rail and allowing further control and signaling functions.

Designed for a wide operating temperature range from -25°C to +55°C, this breaker performs reliably in diverse climatic conditions. It complies with IEC/EN 60947-2 and IEC/EN 60898-1 international standards, affirming its safety, reliability, and performance quality.

Typical applications include domestic consumer units, low-voltage machinery, office equipment, and retail units where dependable circuit protection is essential. The design facilitates safe circuit disconnection and system maintenance while minimizing downtime.

Compact DIN rail mounting Miniature Circuit Breaker for 2-pole installations. Thermomagnetic and electromagnetic tripping mechanisms provide dual protection. 6A current rating suitable for low-load circuits. High breaking capacity of 10kA ensures safety under fault conditions.

Clear ON/OFF status indication with red and green visual markers. Cage terminals for secure and safe electrical connections. Wide operating temperature range enables use in various environments. Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards.

Auxiliary contact fitting capability conserves DIN rail space. Protects residential, commercial, and industrial low-voltage applications. Explore the wide range of ABB circuit protection devices at EnvMart for safe and efficient electrical installations.
