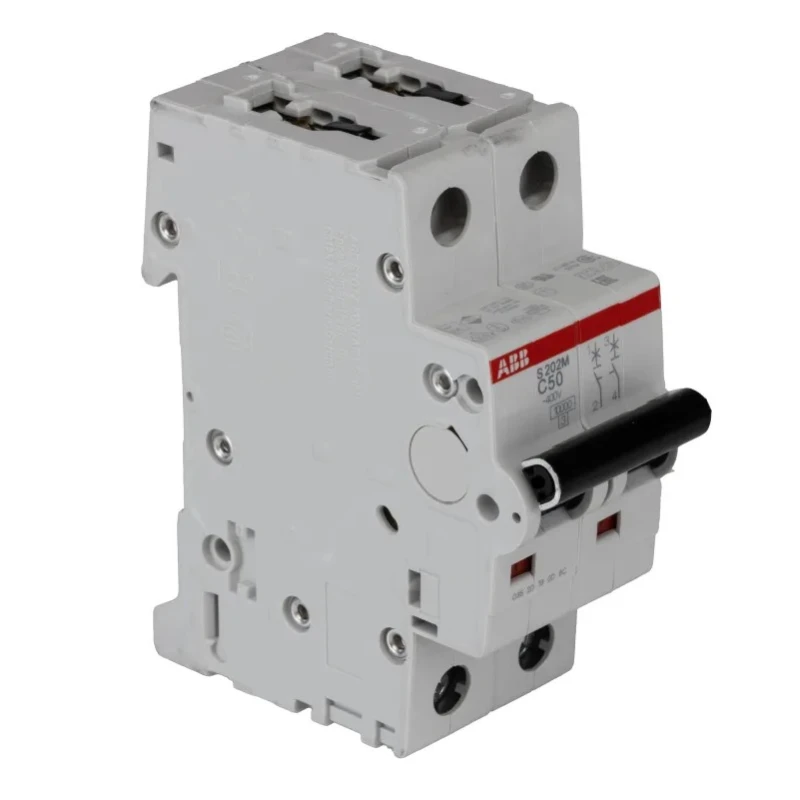

ABB System Pro M Compact S200M Miniature Circuit Breaker 2-Pole Type C 50A 440V AC 125V DC 10kA 2CDS272001R0504 S202M-C50

ABB 2CDS272001R0504 S202M-C50 System Pro M Compact S200M Miniature Circuit Breaker is a high-quality 2-pole device designed to protect electrical installations from overloads and short circuits. Rated for a current of 50A, it features a Type C tripping characteristic that allows flexible use across residential, commercial, and small industrial applications where moderate inrush currents occur.

This compact Miniature Circuit Breaker supports both AC and DC voltages up to 440V AC and 125V DC respectively. It offers a breaking capacity of 10kA, assuring reliable interruption of fault currents, contributing to safe electrical distribution systems.

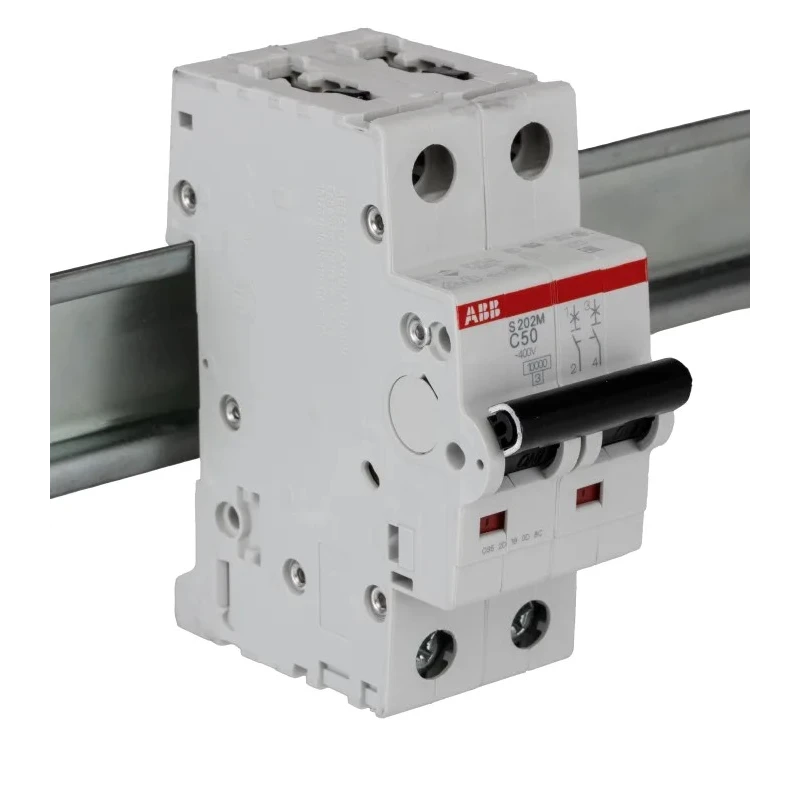

The device employs thermomagnetic and electromagnetic tripping mechanisms for precise and fast reaction to electrical faults. Screw terminal connections provide secure wiring, facilitating easy installation and maintenance. The breaker is designed for mounting on a DIN rail, optimizing panel space without requiring additional clearance.

With an IP rating of IP40 and IP20, this breaker is protected against intrusion of foreign objects and is suitable for typical installation environments. Manufactured to comply with IEC/EN 60947-2 and IEC/EN 60898-1 standards, it ensures conformity to international safety and performance criteria.

Typical applications include residential electrical panels for lighting and power outlet protection, small industrial control panels safeguarding equipment such as motors and pumps, and commercial installations requiring reliable circuit protection. The toggle switch reset actuator allows for quick and convenient circuit reset after interruption.

Designed for 2-pole circuits with 50A current rating. Versatile Type C tripping characteristic for common applications. Supports 440V AC and 125V DC operational voltages. High 10kA breaking capacity for dependable fault current interruption.

Secure screw terminal connections for robust wiring. Compact and space-saving DIN rail mount design. Thermomagnetic and electromagnetic tripping mechanisms for fast and accurate protection. IP40/IP20 ingress protection for solid particle resistance.

Compliance with IEC/EN 60947-2 and IEC/EN 60898-1 safety standards. User-friendly toggle switch reset actuator. Explore EnvMart's comprehensive range of ABBCircuit Breakers and Electrical Components for efficient and safe power distribution solutions.
