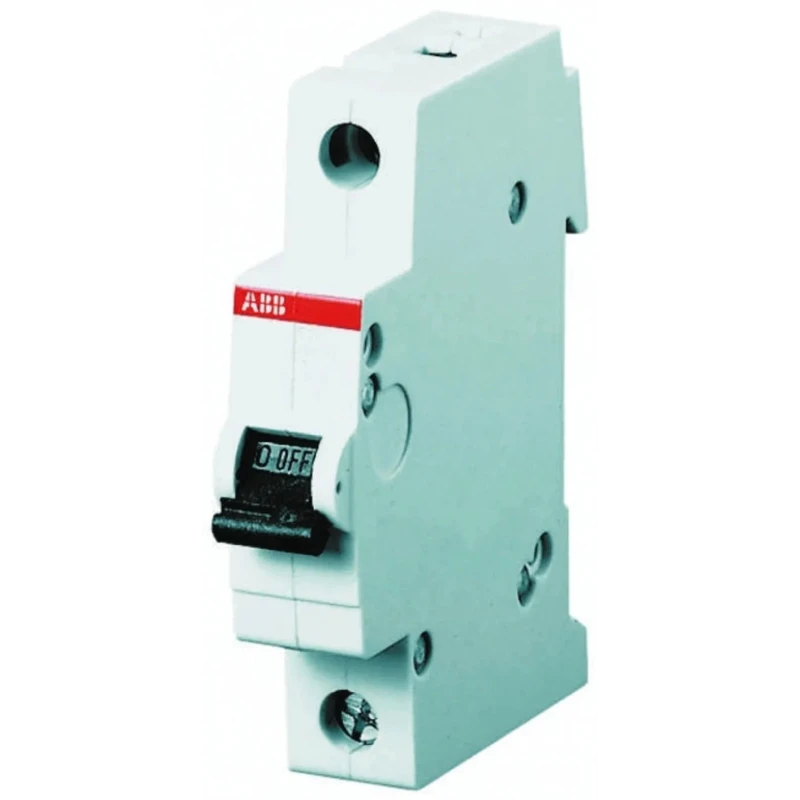

ABB System Pro M Compact S200M Miniature Circuit Breaker, 1-Pole, 63A, Type D, 253V AC, 72 V DC 2CDS271001R0631 S201M-D63

ABB 2CDS271001R0631 S201M-D63 System Pro M Compact S200M Miniature Circuit Breaker is a crucial component for ensuring effective circuit protection in industrial and commercial electrical systems. With a rated current of 63 Amperes and a single pole configuration, it provides robust safeguarding against overloads and faults.

This miniature circuit breaker features Type D tripping characteristics suitable for applications with high inrush currents such as motors and transformers. Its thermal tripping mechanism accurately responds to overload conditions, preventing damage to electrical equipment and enhancing safety. Compatible with both AC at 253V and DC at 72V, it offers versatile usage across different circuit types.

The breaker’s compact design with a width of only 17.5mm allows multiple units to be installed side-by-side on DIN rails, optimizing panel space. Screw terminal connections ensure secure and straightforward wiring, while its toggle switch reset actuator enables quick manual restoration after a trip event.

With a high breaking capacity of 10 kiloamperes at maximum voltage, this MCB can withstand significant fault currents, protecting wiring and connected devices effectively. Its IP20 and IP40 ingress protection ratings suitable for indoor electrical panels further enhance durability against dust ingress.

Complying with IEC/EN 60947-2 and IEC/EN 60898-1 international standards, this breaker guarantees consistent performance and safety for demanding electrical installations. Produced in Germany, it reflects ABB’s commitment to quality and reliability.

Compact DIN rail mountable design facilitates easy installation in control panels. Type D tripping curve suitable for inductive loads with high startup currents. Thermal tripping mechanism provides precise overload protection.

Dual voltage compatibility supports varied power environments. High breaking capacity for effective short circuit current interruption. Screw terminal type delivers stable and safe wiring connections. Meets IEC/EN safety and performance standards for circuit breakers.

IP20 and IP40 ratings enhance protection against dust and foreign objects. Lightweight and slim profile reduces panel space requirements. Manufactured in Germany with high quality assurance.

This miniature circuit breaker from ABB is ideal for industrial, commercial, and manufacturing electrical systems where reliable overload and fault protection are critical. Its design and certifications ensure compliance with industry safety norms while providing operational flexibility and ease of use.
