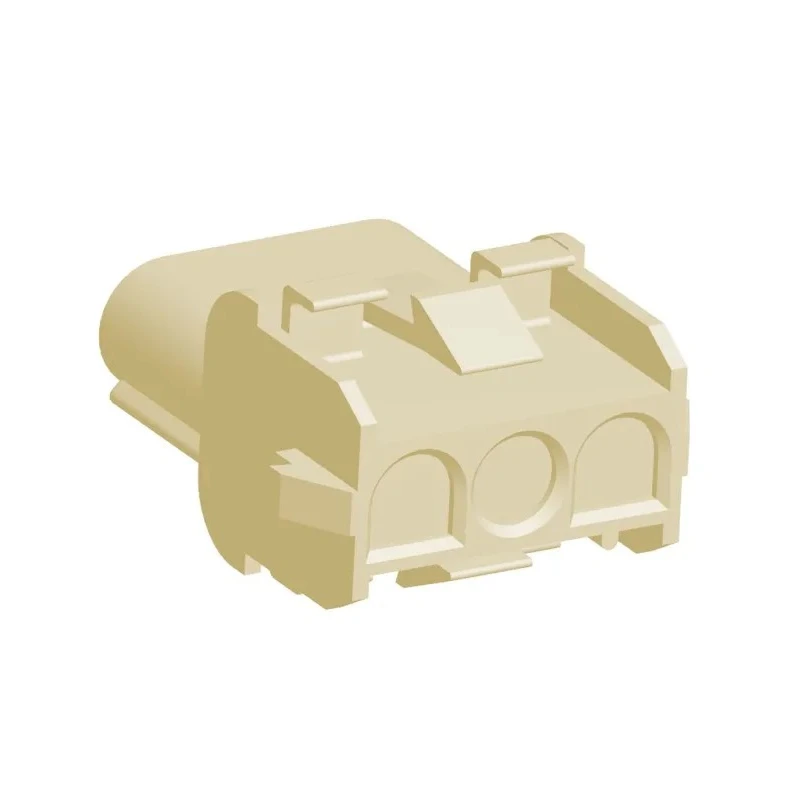

TE Connectivity Universal MATE-N-LOK Female Connector Housing 6.35 mm Pitch 3 Way 1 Row Straight 2178474-2

TE Connectivity 2178474-2 Universal MATE-N-LOK Female Connector Housing provides a reliable connector solution with a 6.35 mm pitch, three contacts arranged in a single row, and straight orientation. Manufactured using high-quality nylon, the housing is Glow Wire compliant according to IEC 60335-1 standards and adheres to UL 94 V-0 requirements, ensuring excellent flame retardancy for safety in various industrial and commercial electrical applications.

This connector housing incorporates a positive locking latch that firmly secures the mating connection, preventing accidental unmating due to vibration or shock, crucial for ensuring stable electrical connections in demanding environments. The polarized design further prevents mismating by aligning the connector correctly, complemented by the egg-crate finger proof design that enhances safety during handling.

Designed for versatility, the housing can be used in both panel mounting and wire-to-wire connections, compatible with standard 0.05 mm² to 5 mm² MATE-N-LOK contacts. Rear cavity identification simplifies assembly and allows the mixing of pin and socket contacts within the same housing without confusion.

Typical applications include household appliances, HVAC equipment, desktop computers, lighting systems, security and industrial controls, storage, and networking systems. This makes it an ideal choice for industries requiring robust, flame retardant, and secure electrical Connectors.

The compact dimensions of 20.32 mm length and 13.21 mm width allow integration into limited space while maintaining reliability. TE Connectivity’s Universal MATE-N-LOK range enhances design flexibility and safety compliance for electronic component assemblies.

The connector housing is made from nylon material ensuring high durability. It features a positive locking latch to secure the mating connection against vibration and shock. The polarized design prevents incorrect mating, enhancing safety.

Glow Wire compliant to IEC 60335-1 and meets UL 94 V-0 flammability standards. Supports both wire-to-wire and panel mount applications. Rear cavity identification enables easy assembly and pin/socket mixing within the same housing.

Dimensions are 20.32 mm length and 13.21 mm width for compact usage.

This Universal MATE-N-LOK connector housing by TE Connectivity fulfills critical industrial, commercial, and domestic application demands. Explore more connector variants and accessories within the EnvMart Electronics Components category for professional use.
