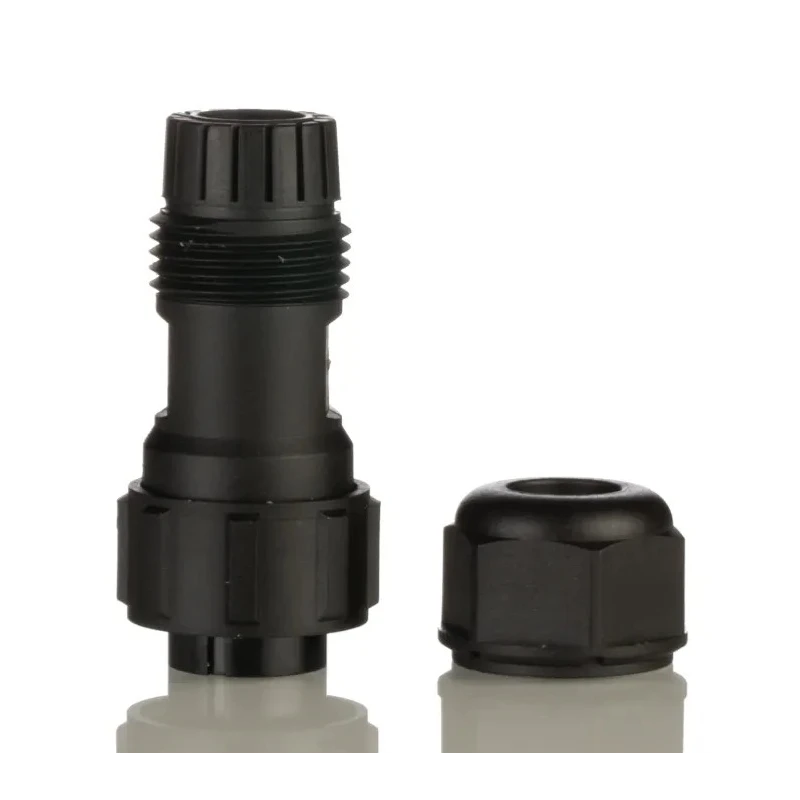

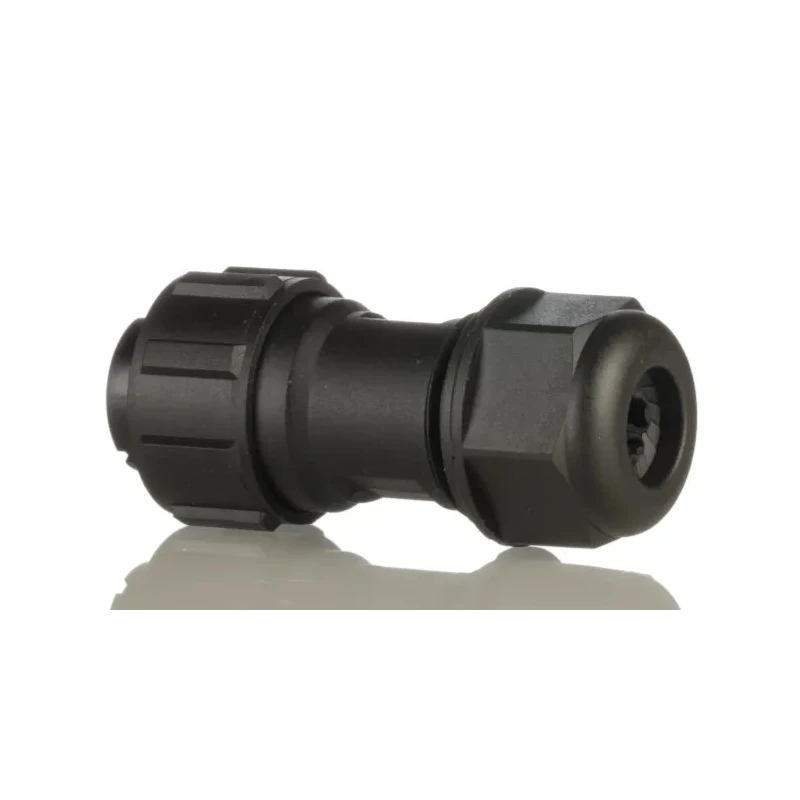

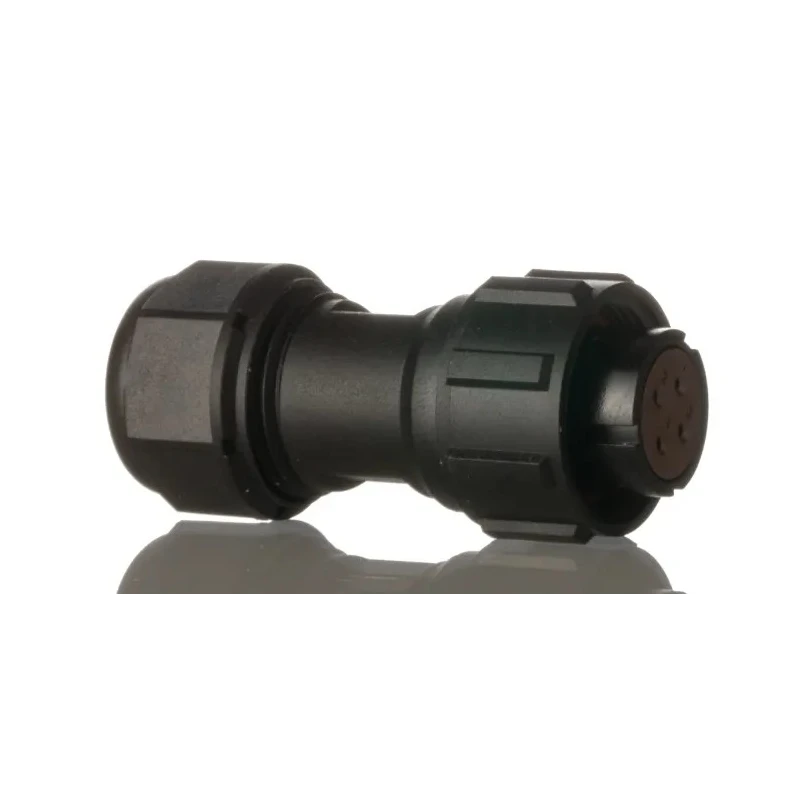

RS PRO Circular Connector Cable Plug 4 Contacts Female IP68 500V 5A RS PRO 124-6660
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 5A |
| Model | 124-6660 |
| IP Rating | IP68 |
| Mount Type | Cable |
| Housing Material | Polyamide 66, Polycarbonate |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 4 |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Shell Size | 17 mm |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Cable outer diameter acceptance | 6 mm - 10 mm |
| Panel hole cutout diameter | 17 mm |
Key Features
- This circular connector supports a voltage rating of 500V and a current rating up to 5A.
- The connector is designed for cable mount installation with a straight orientation.
- It includes gold-plated brass contacts to ensure reliable signal transmission and durability.
- The robust housing is made from polyamide 66 and polycarbonate for enhanced mechanical strength.
- The connector supports cable outer diameters ranging from 6 mm to 10 mm and features a crimp termination type.
- The panel hole cutout diameter for mounting is 17 mm to fit standard applications.
- Operating temperature ranges from -40°C to 85°C, suitable for demanding industrial environments.
- This RS PRO series connector has a threaded mating type and a shell size of 17 mm.
Product Description
RS PRO 124-6660 Circular Connector Cable Plug is a female, 4-contact industrial circular connector with a 500V voltage rating and 5A current capacity. It is designed for cable mount applications with a straight orientation and threaded mating, offering secure connections in harsh environments.
The connector's housing is constructed with durable polyamide 66 and polycarbonate materials, ensuring mechanical robustness and long service life. It features gold-plated brass contacts which enhance electrical reliability and corrosion resistance.
This model supports cable outer diameter acceptance from 6 mm to 10 mm and uses a crimp termination method for secure contact attachment. The panel mounting requires a hole cutout diameter of 17 mm, making it compatible with standard industrial panels.
Rated with IP68 protection, this circular connector is highly resistant to dust and water ingress, suitable for demanding industrial, manufacturing, and electrical installations. It operates reliably within a temperature range of -40°C to 85°C.
This circular connector supports 4 contacts rated for 5A current. Mount type is cable with a standard connector size and straight orientation. Shell size is 17 mm with threaded mating type for secure connections. The housing features polyamide 66 and polycarbonate materials for durability.
Gold-plated brass contacts ensure corrosion resistance and signal integrity. IP68 rating provides excellent dust and water protection for harsh environments. Operating temperature range from -40°C to 85°C supports industrial use.
Cable outer diameter acceptance ranges from 6 mm to 10 mm.
This RS PRO circular connector is ideal for use in industrial, manufacturing, and electrical power distribution systems requiring high reliability and environmental protection. Explore more RS PRO connectors and components at EnvMart for your electronic and electrical assembly needs.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This circular connector has a voltage rating of 500V and a current rating of up to 5A.
It has an IP68 rating, providing excellent protection against dust and water ingress, making it suitable for harsh environments.
The housing is made from polyamide 66 and polycarbonate, which enhances its mechanical strength and durability.
This model operates reliably within a temperature range of -40°C to 85°C.
It supports cable outer diameters ranging from 6 mm to 10 mm.
It uses a crimp termination type for secure contact attachment.
The required panel hole cutout diameter for mounting is 17 mm.
This circular connector features 4 contacts.
It utilizes a threaded mating type for secure connections.
The contacts are made of brass and are gold-plated to enhance electrical reliability and corrosion resistance.
This connector is designed for cable mount installation with a straight orientation.
It is suitable for industrial, manufacturing, and electrical power distribution systems requiring high reliability and environmental protection.
