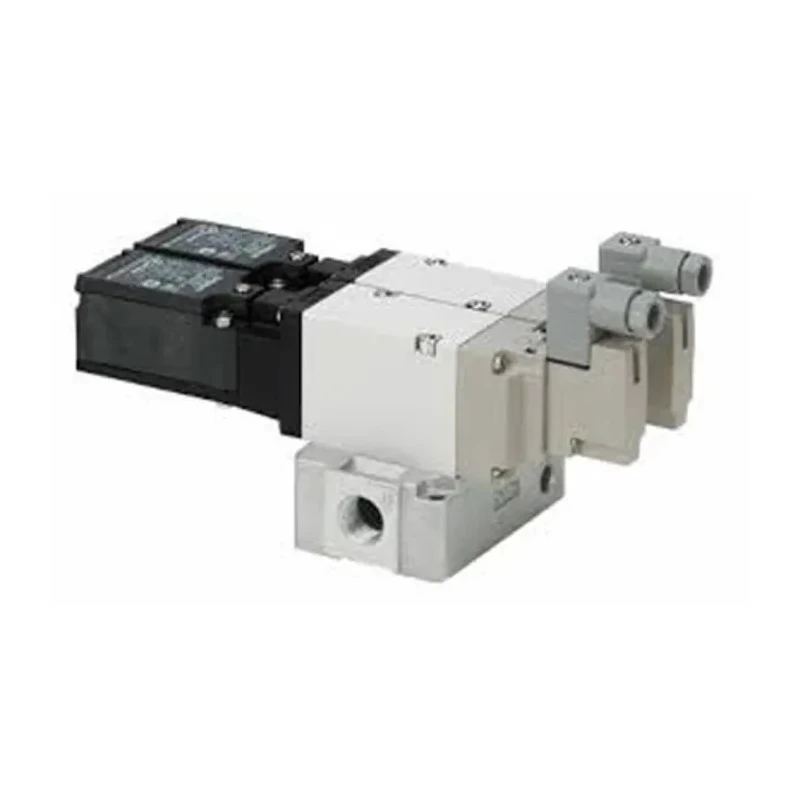

SMC Pneumatic 3/2 NC Solenoid Valve 3 Ports Threaded G Connection Die Cast Aluminium Body 24V 1.5W VP500

SMC VP544R-5DZ1-03F-M-X538 pneumatic solenoid valve is a 3/2 normally closed valve designed for industrial pneumatic systems requiring reliable and safe venting of compressed air. Operating at 24V voltage and consuming 1.5W power, this valve is body ported with a die cast aluminium body, providing both strength and lightweight construction.

The valve features a threaded G standard connection with 3 female ports, allowing integration into various pneumatic circuits. It supports a maximum operating pressure of 0.7 MPa and is rated for operating temperatures between -10°C and 50°C, suitable for typical industrial environments.

This VP500 series valve meets ISO13849-1 category 3 and 4 safety standards, making it ideal for safety control systems in manufacturing, tyre pressure testing machinery, moulding machines, and assembly automation. An integrated limit switch and LED position indicator enable real-time monitoring of valve status (energised or de-energised), enhancing system safety and diagnostics.

Additional features include low solenoid power consumption, modular compatibility with SMC FRL systems, and robust design optimized for frequent cycling. The valve is equipped to withstand pilot pressures ranging from 0.2 MPa to 0.7 MPa and has a maximum operating frequency of 30 cycles per minute.

Threaded G connection with 3 female ports for easy pneumatic system integration. Die cast aluminium body provides strength and lightness. Voltage: 24 V DC with power consumption of 1.5 W. Temperature operation range from -10°C to 50°C for industrial use.

ISO13849-1 category 3 and 4 compliant for safety systems. Includes limit switch and LED position indicator for monitoring. Compact dimensions: Length 112.9 mm, Width 66.7 mm, Height 106.7 mm. Suitable for industrial automation, pneumatic machinery, and safety control applications.

This pneumatic solenoid valve from SMC is a critical component in safe and efficient pneumatic control systems used in industrial automation, manufacturing processes, and safety applications. Its robust construction, compliance with safety standards, and monitoring features make it suitable for integration in high-safety environments ensuring operational reliability.
