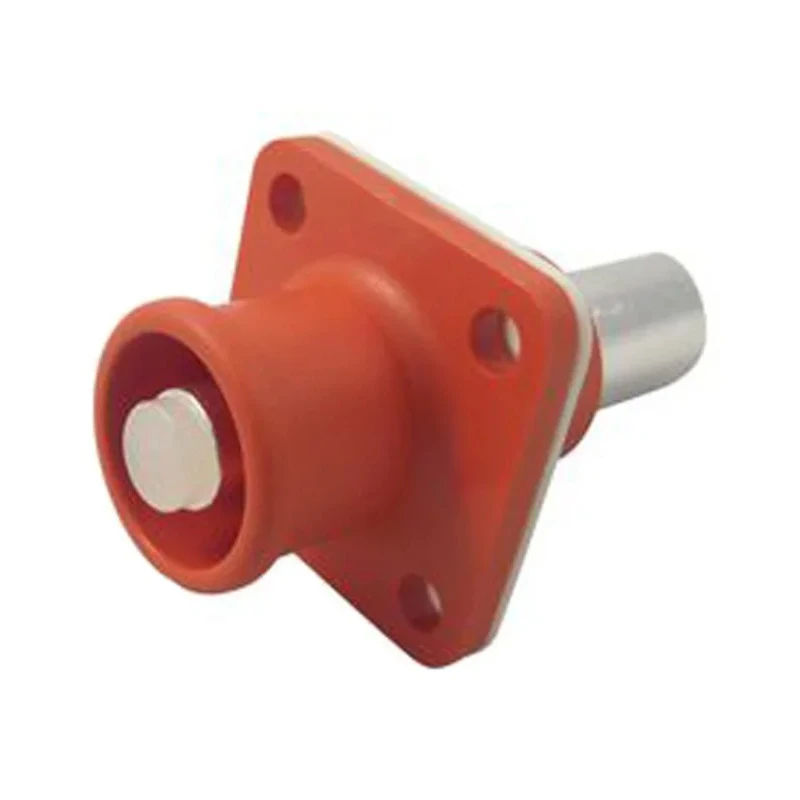

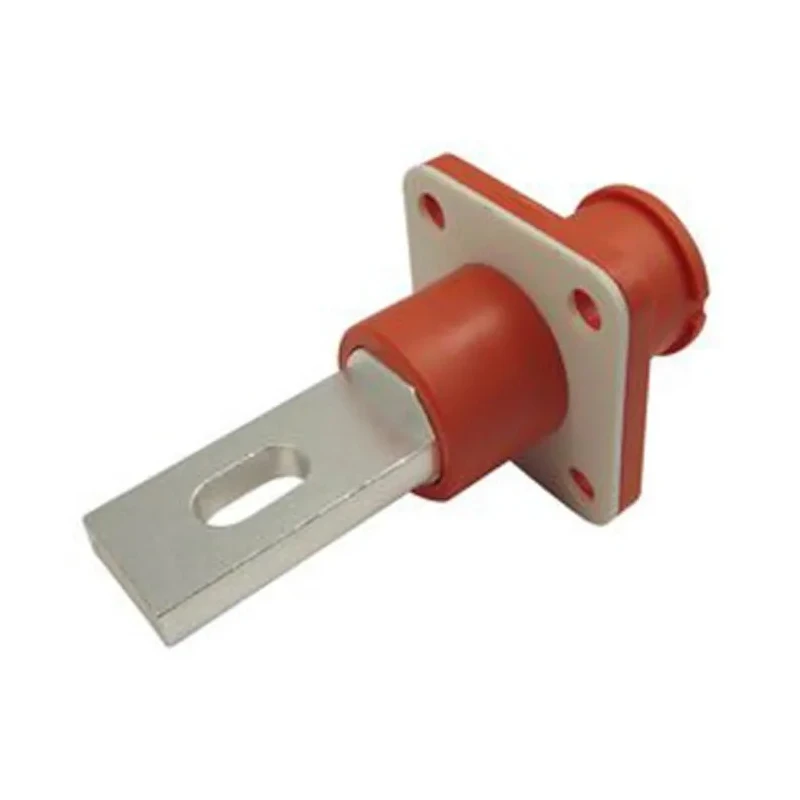

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female 200A 1000V Panel Mount SLPIRB50CPSO0 / C10-731950-000

Amphenol Industrial SLPIRB50CPSO0 / C10-731950-000 is a SURLOK PLUS series RADSOK EV Connector Female rated for 200A and designed to operate at 1000V, suitable for demanding electrical and industrial environments. This compact and quick-mating compression lug connector features a panel mount flange and straight orientation, facilitating robust and reliable electrical connections in applications such as electric vehicles, heavy equipment, battery management systems, medical devices, and rail mass transit systems.

The connector incorporates advanced R4 RadSok technology which guarantees a high tensile strength connection with a large conductive surface area, significantly enhancing electrical conductivity and reliability. The 8mm pin diameter connector is engineered to terminate 50mm² wires with a crimp termination type, providing a secure and efficient mechanical and electrical connection.

Its thermoplastic housing and copper alloy contacts ensure durability and excellent electrical performance. The product supports an operating temperature range from -40°C to 125°C and carries a UL 94-V0 flammability rating, ensuring safety and reliability under various environmental conditions.

Designed for panel mount installations, the connector features a keyed design to prevent mismating and includes a spring locking mechanism that is touch-proof, enhancing user safety during handling and operation. It holds an IP67 ingress protection rating, providing complete protection against dust ingress and immersion in water, making it suitable for outdoor and harsh industrial environments.

This EV Connector is part of Amphenol's Better World initiative, offering renewable energy solutions to promote sustainability and energy efficiency across multiple sectors. Supports a current rating of 200A for high power efficiency.

Features RADSOK type connector technology ensuring reliable electrical connection. Panel mount installation with a straight orientation for ease of use. IP67 rated for superior environmental protection against dust and water.

Durable thermoplastic housing with copper alloy contacts for longevity. Operates safely within a temperature range of -40°C to 125°C. Offers a keyed design to prevent mismating with a touch-proof and spring locking mechanism.

Designed for 50mm² wire size termination via crimping for secure connections. Complies with UL 94-V0 flammability standards for enhanced safety. Ideal for electric vehicle, battery management, process control, and rail mass transit applications.
