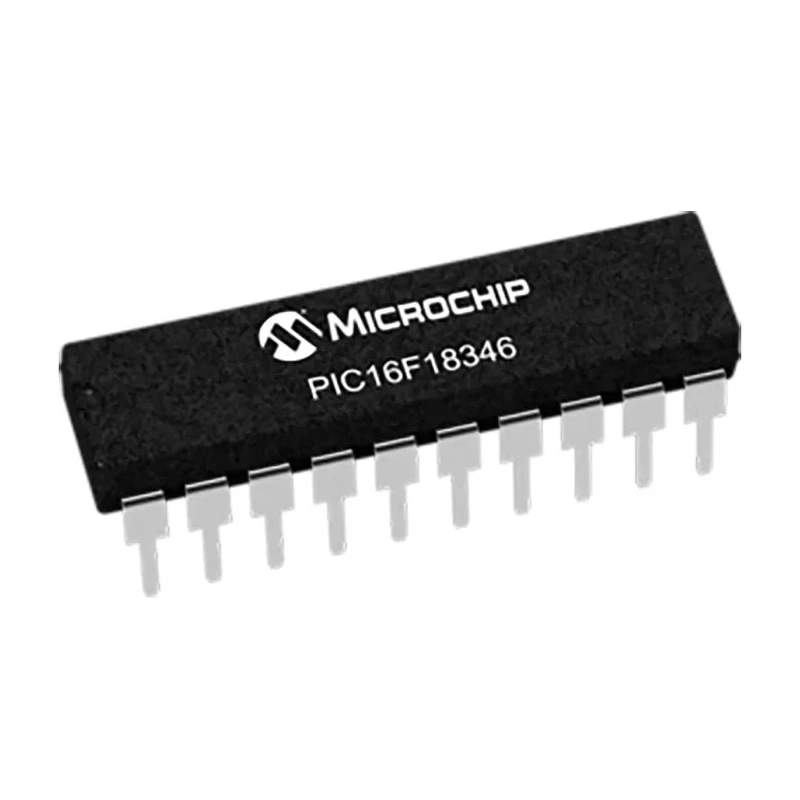

Microchip 8 Bit PIC Microcontroller PIC16F18346-I/P 32 MHz, 28kB FLASH, 20-Pin PDIP PIC16F18346-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.83mm |
| Length | 26.92mm |
| Model | PIC16F18346-I/P |
| Width | 7.11mm |
| Mount Type | Surface Mount |
| Series | PIC16 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Operating Current | 8 μA @ 32 kHz 1.8 V (typical) |
| Interface Type | RS232 |
| Pin Count | 20 |
| Maximum Supply Voltage | 6V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 28kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 13 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 17 x 10 Bit |
| Program Memory Type | FLASH |
| Watchdog Timer | 250 nA @ 1.8 V (typical) |
| Sleep Mode | 40 nA @ 1.8 V (typical) |
| Secondary Oscillator | 300 nA @ 32 kHz |
Key Features
- Operates at a maximum clock frequency of 32 MHz for efficient processing.
- Features 28kB of FLASH program memory and 2kB RAM for data storage.
- Supports 13 programmable I/O pins for flexible interfacing.
- Includes 17 channels of 10-bit ADC for precise analog input conversion.
- Consumes low power with multiple sleep and idle modes available.
- Compatible with I2C, SMBus, and PMBus communication protocols.
- Operates within temperature range of -40°C to 85°C for industrial applications.
- Comes in a 20-pin PDIP surface mount package with dimensions 26.92 x 7.11 x 4.83 mm.
Product Description
Microchip PIC16F18346-I/P is an 8-bit PIC microcontroller designed using Microchip's Enhanced Mid-Range core architecture. This microcontroller operates at speeds up to 32 MHz and offers 28kB FLASH memory along with 2kB RAM. It comes in a 20-pin PDIP surface mount package, ideal for various embedded applications requiring compact and efficient processing.
This microcontroller includes a robust set of features such as 13 programmable I/O pins, 17 channels of 10-bit analog-to-digital converters (ADC), digital-to-analog converters (DAC), comparators, configurable logic cells, complementary waveform generators, and multiple PWM modules. It supports several communication interfaces including EUSART for RS-232, RS-485, and LIN compatibility, as well as two master synchronous serial ports compatible with I2C, SMBus, and PMBus.
Power management is enhanced by various low-power modes such as SLEEP, IDLE, and DOZE, with extremely low current consumption making it suitable for battery-operated industrial and commercial electronic devices. Its operating temperature range from -40°C to 85°C allows deployment in harsh environments.
The microcontroller package dimensions are 26.92 mm length, 7.11 mm width, and 4.83 mm height, fitting standard PDIP sockets. The maximum supply voltage is 6 V, with a minimum at 2 V, and a maximum power dissipation of 800 mW.
This product is well-suited for industrial control systems, consumer electronics, automotive components, and communication devices requiring a reliable and versatile 8-bit microcontroller.
Maximum clock frequency of 32 MHz ensures fast processing speeds. FLASH memory of 28kB provides ample program storage. Low power operation with multiple power-saving features. Wide operating temperature range supports industrial uses.
Multiple communication interfaces enable versatile connectivity. Explore Microchip Microcontrollers and related products at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz, allowing for efficient processing.
It features 28kB of FLASH program memory, providing ample storage for applications.
This microcontroller includes 13 programmable I/O pins for flexible interfacing with other components.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
It supports I2C, SMBus, and PMBus communication protocols, enhancing its connectivity options.
The dimensions of this unit are 26.92 mm in length, 7.11 mm in width, and 4.83 mm in height.
It has a RAM size of 2kB for data storage needs in applications.
The maximum supply voltage for this microcontroller is 6V.
It includes 17 channels of 10-bit ADC for precise analog input conversion.
The typical operating current is 8 μA at 32 kHz and 1.8 V.
This microcontroller comes in a 20-pin PDIP surface mount package, suitable for standard sockets.
