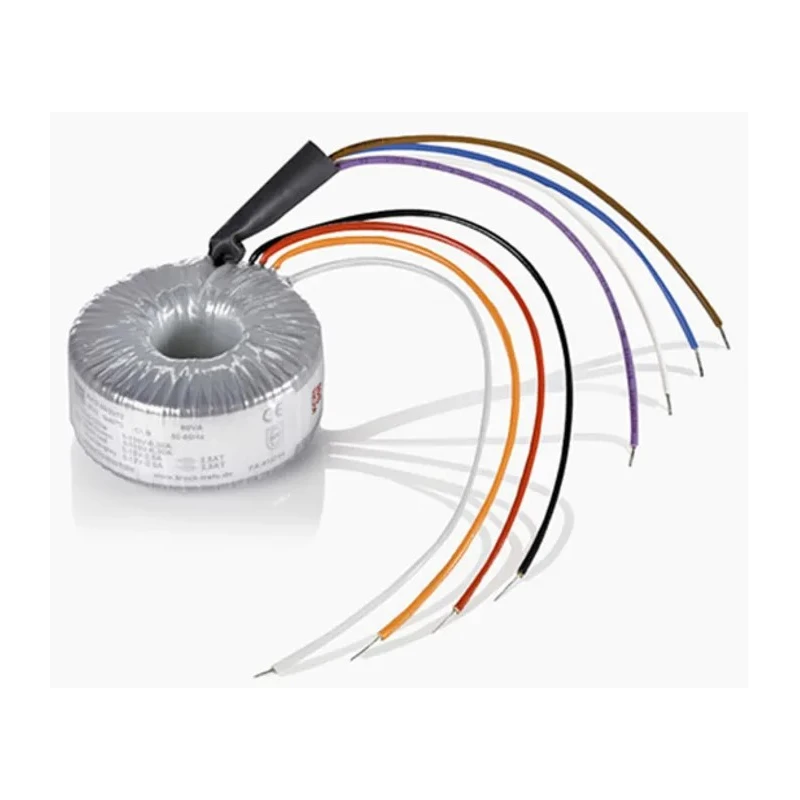

Block Toroidal Transformer Dual 115 V ac Primary, Dual 35 V ac Secondary, 2 Outputs, 160 VA RKD 160/2x35

Free Delivery in India | Lowest Global Shipping Charges

Block Toroidal Transformer Dual 115 V ac Primary, Dual 35 V ac Secondary, 2 Outputs, 160 VA RKD 160/2x35

Name: Block Toroidal Transformer Dual 115 V ac Primary, Dual 35 V ac Secondary, 2 Outputs, 160 VA RKD 160/2x35
Brand: Block
SKU: 141239
Price: 140.11 USD
Availability: InStock



Category Toroidal Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Diameter	105mm
Brand	Block
Height	50mm
Model	RKD 160/2x35
Gross Weight	1.7kg
Mount Type	Surface
Series	RKD
Termination Type	Wire
Maximum Operating Temperature	40°C
Number of outputs	2
Winding Type	Dual Secondary
Standards/Approvals	EAC, cURus, RoHS, UL
Primary Voltage	2 x 115 V ac
Secondary Voltage	2 x 35 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Toroid Centre	Open

Key Features

High quality open style toroidal transformer with dual secondary windings.
Dual 115 V ac primary windings enable flexible series or parallel connection.
Very low radiated magnetic field and minimal induced noise.
Lightweight and compact design with 1.7 kg weight and 105 mm diameter.
Surface mount type with wire termination for easy installation.
Compliant with EAC, cURus, RoHS, and UL standards.
Operating frequency range of 50 Hz to 60 Hz for versatile use.
Maximum operating temperature is 40°C for reliable performance.

Product Description

Block RKD 160/2x35 Toroidal Transformer is a precision engineered power component designed for industrial and commercial electrical applications. It features dual 115 V ac primary windings and dual 35 V ac secondary windings capable of independent or combined operation, providing two outputs with a power rating of 160 VA.

This open style toroidal transformer offers a compact form factor with a diameter of 105 mm and a height of 50 mm. Weighing only 1.7 kg, it features a surface mount type with wire termination, ensuring easy and secure installation in various electrical equipment.

Designed for a frequency range of 50 Hz to 60 Hz and a maximum operating temperature of 40°C, the RKD series transformer delivers very low radiated magnetic fields and minimal induced noise, making it ideal for noise-sensitive industrial environments. The insulation class B rating assures safe electrical integrity during operation.

The product conforms to multiple international standards including EAC, cURus, RoHS, and UL certifications, ensuring compliance with safety and environmental requirements. It is manufactured in Germany with high quality and reliability standards.

High quality open style toroidal transformer with dual secondary windings. Dual 115 V ac primary windings enabling series or parallel connection. Extremely low radiated magnetic field and noise levels. Compact size and lightweight design for ease of integration.

Surface mount type with wire termination for installation flexibility. Operating frequency 50 Hz - 60 Hz and max temperature 40°C. Meets EAC, cURus, RoHS, and UL standards. Insulation class B for safe electrical operation.

Mounting kit supplied for quick setup.

This Toroidal Transformer is suitable for electronic components, power supplies, and industrial machines requiring efficient voltage transformation with minimal noise. The compact and robust design supports applications in manufacturing equipment, laboratory devices, HVAC systems, and other commercial installations.
