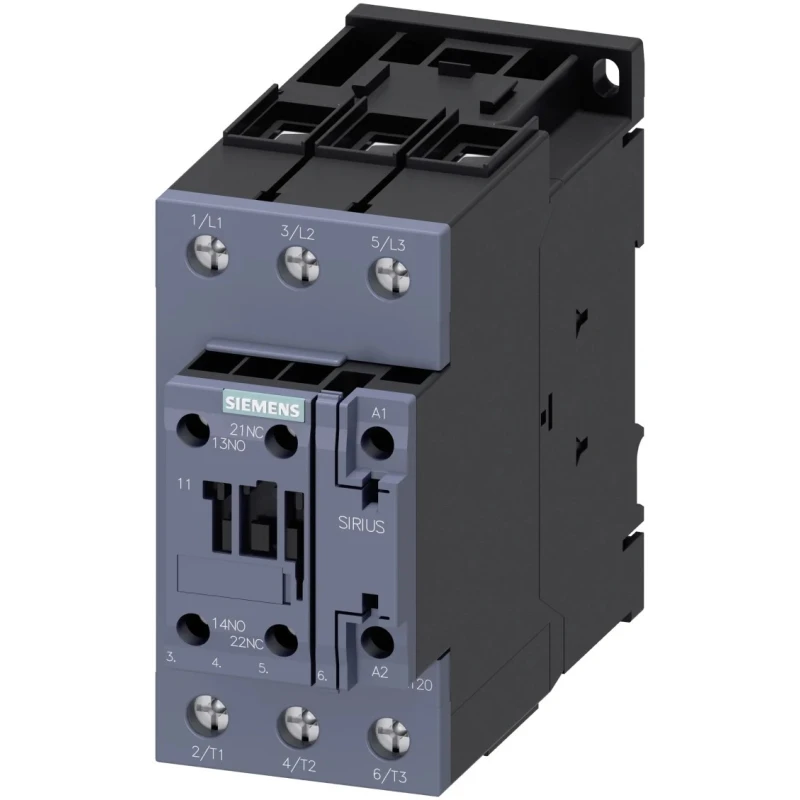

Siemens 3RT2 Contactor, 230V AC Coil, 3-Pole, 50A, 22kW 400V, 3 NO, 690V AC 3RT2036-1AP60
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Function | Motor Control |
| Length | 55mm |
| Model | 3RT2036-1AP60 |
| Depth | 113.4mm |
| Width | 130mm |
| Mount Type | DIN Rail |
| Series | 3RT2 |
| Power Rating | 22kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, RoHS, UKCA, UL, VDE |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Low Carbon Manufacture |
| Contact Current | 50A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 51A |
| Control Circuit Voltage Uc | 400V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3PST |
Key Features
- Operates with a coil voltage of 230V AC ensuring efficient switching.
- Equipped with 3 poles for three-phase motor control.
- Rated operational current of 51A with a power rating of 22kW at 400V.
- Features 3 normally open (NO) contacts and auxiliary contact configuration of 1 NO and 1 NC.
- Mounts easily on DIN rails with screw clamp terminals.
- Designed to operate within temperatures from -25°C to 60°C.
- Conforms to multiple international standards including CCC, CSA, EAC, RoHS, UKCA, UL, and VDE.
- Manufactured in Germany with a low carbon footprint as part of Siemens' Better World initiative.
Product Description
Siemens 3RT2036-1AP60 Contactor is a high-quality industrial device designed for motor control applications with a 230V AC coil and 3 poles. It supports a contact current of 50A and a power rating of 22kW at 400V, providing reliable switching performance for various industrial environments.
The contactor features three normally open (3 NO) main contacts and auxiliary contacts configured as 1 NO and 1 NC, facilitating versatile control circuit designs. It uses screw clamp terminals for secure connections and mounts easily on standard DIN rails.
Operating effectively within a wide temperature range from -25°C to 60°C, the device is suited to challenging industrial and automation setups. Its compact size with dimensions 130mm wide, 55mm long, and 113.4mm depth makes it convenient for panel installations.
Conforming to numerous international certifications such as CCC, CSA, EAC, RoHS, UKCA, UL, and VDE, this contactor assures compliance with global quality and safety standards. It is manufactured in Germany under Siemens' Better World program focusing on sustainable and low carbon manufacturing practices.
This contactor is ideal for electrical automation, motor control in manufacturing plants, industrial automation systems, and HVAC equipment. It supports control circuit voltages up to 400V and provides exceptional reliability for continuous operation.
Operates with a coil voltage of 230V AC ensuring efficient switching. Equipped with 3 poles for three-phase motor control. Rated operational current of 51A with power rating of 22kW at 400V. Features 3 normally open (NO) main contacts, auxiliary contact configuration 1 NO/1 NC.
Mounts easily on DIN rails with secure screw clamp terminals. Wide operating temperature range from -25°C to 60°C. Manufactured in Germany with low carbon footprint under Siemens Better World program. Conforms to CCC, CSA, EAC, RoHS, UKCA, UL, and VDE standards.
Compact dimensions suitable for industrial panel integration. Explore the extensive range of Siemens Contactors and industrial automation devices available at EnvMart for your manufacturing and industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 22kW at 400V.
The rated operational current for the Siemens 3RT2036-1AP60 is 51A.
It operates with a coil voltage of 230V AC.
This model is equipped with 3 poles for three-phase motor control.
The dimensions are 130mm wide, 55mm long, and 113.4mm deep.
The maximum operating temperature is 60°C.
It features an auxiliary contact configuration of 1 normally open (NO) and 1 normally closed (NC).
It uses screw clamp terminals for secure connections.
It conforms to several standards including CCC, CSA, EAC, RoHS, UKCA, UL, and VDE.
The contact voltage rating is 690V AC.
This contactor mounts easily on DIN rails.
It is suitable for motor control applications in industrial automation systems.
