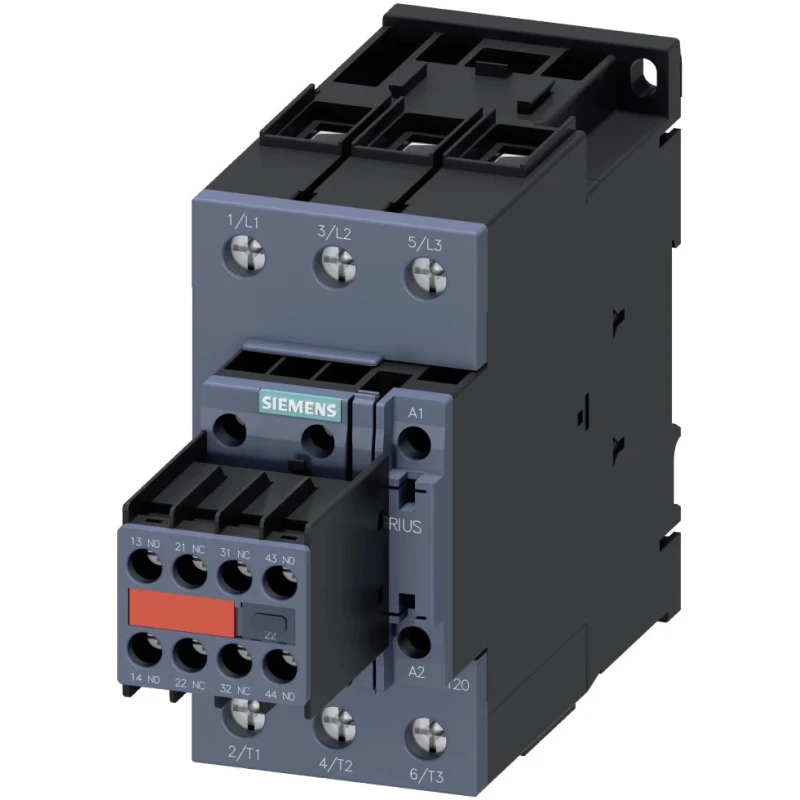

Siemens 3RT2 Contactor, 110V AC Coil, 3-Pole, 50 A, 22 kW 400V, 3 NO, 690V AC 3RT2036-1AK64-3MA0
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Function | Motor Control |
| Length | 55mm |
| Model | 3RT2036-1AK64-3MA0 |
| Depth | 113.4mm |
| Width | 173.5mm |
| Mount Type | DIN Rail |
| Series | 3RT2 |
| Power Rating | 22kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, RoHS, UKCA, VDE, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Low Carbon Manufacture |
| Contact Current | 50A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 51A |
| Control Circuit Voltage Uc | 400V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3PST |
Key Features
- The contactor features a 3-pole configuration suitable for industrial motor control.
- Equipped with a coil voltage of 110V AC and a control circuit voltage of 400V.
- It supports a high power rating of 22 kW at 400V and contact current of 50 A.
- Includes 3 normally open (NO) main contacts and 4 auxiliary contacts configured as 1 NO and 1 NC.
- Mounts on a DIN rail for easy installation in control panels.
- Designed to operate reliably in temperatures from -25°C to 60°C.
- Terminal connections utilize screw clamps ensuring secure electrical contact.
- Certified with multiple standards including CCC, CSA, EAC, RoHS, UKCA, VDE, and UL.
Product Description
Siemens 3RT2036-1AK64-3MA0 Contactor with a 110V AC coil is a 3-pole device rated for motor control applications featuring a contact current of 50 A and power rating of 22 kW at 400V. Manufactured in Germany, this contactor is engineered for high reliability and performance in industrial automation systems.
This device is suitable for controlling motors in industrial environments, HVAC, manufacturing plants, and other automated machinery. It operates within a temperature range of -25°C to 60°C, ensuring robust performance in varying conditions.
The contactor includes three normally open main contacts (3 NO) alongside four auxiliary contacts with a configuration of 1 NO and 1 NC, facilitating complex control circuits. It features screw clamp terminals for secure connections and mounts conveniently on a DIN rail.
Approved by international standards such as CCC, CSA, EAC, RoHS, UKCA, VDE, and UL, it meets stringent safety and environmental compliance requirements. The product carries a better world claim highlighting its low carbon manufacturing process suitable for environmentally conscious industrial operations.
The contactor features a 3-pole configuration suitable for industrial motor control. Equipped with a coil voltage of 110V AC and a control circuit voltage of 400V. Supports a power rating of 22 kW at 400V and a contact current of 50 A.
Includes 3 normally open (NO) main contacts and 4 auxiliary contacts configured as 1 NO and 1 NC. Mounts easily on DIN rails for streamlined installation. Rated to operate between -25°C and 60°C for extended environmental tolerance.
Terminal connections use screw clamps for secure and reliable electrical contact. Certified to multiple international standards, ensuring safety and compliance. Manufactured in Germany with a focus on low carbon footprint production.
Compact physical dimensions support installation in a range of industrial control panels.
This Siemens contactor is ideal for industrial, manufacturing, HVAC, and control automation applications requiring reliable contact switching and power management. Explore EnvMart’s broad range of Siemens Contactors and auxiliary devices for comprehensive electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 22 kW at 400V.
It has a contact current rating of 50 A.
The coil voltage for this model is 110V AC.
The dimensions are 55 mm in length, 173.5 mm in width, and 113.4 mm in depth.
This contactor features a 3-pole configuration.
It operates within a temperature range of -25°C to 60°C.
It includes three normally open (NO) main contacts and four auxiliary contacts configured as 1 NO and 1 NC.
This contactor mounts on a DIN rail for easy installation.
It is certified with multiple standards including CCC, CSA, EAC, RoHS, UKCA, VDE, and UL.
It utilizes screw clamp terminals for secure electrical contact.
The control circuit voltage is 400V.
This contactor is manufactured in Germany.
