Vibration Analyzer & Balancer VAB10022
Specifications
| Country of Origin | India |
|---|---|
| Warranty | As per Manufacturer |
Key Features
- Intelligent LED Display - Different color of LED lights indicate the state of instrument and battery
- Excellent Equipment Performance and The stable and efficient Windows CE Microsoft operating system ,Powerful data processing ability with 400MHz high- performance
- Human-machine Interface - Portable,One-hand operation, Intelligent Sensitization to automatically adjust the brightness of the LCD screen
Product Description

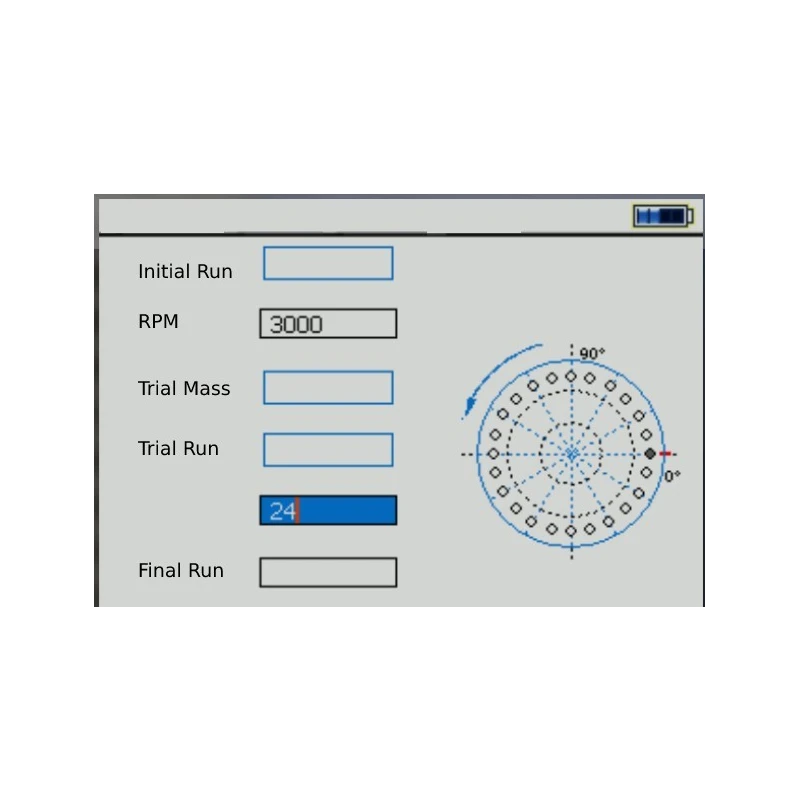

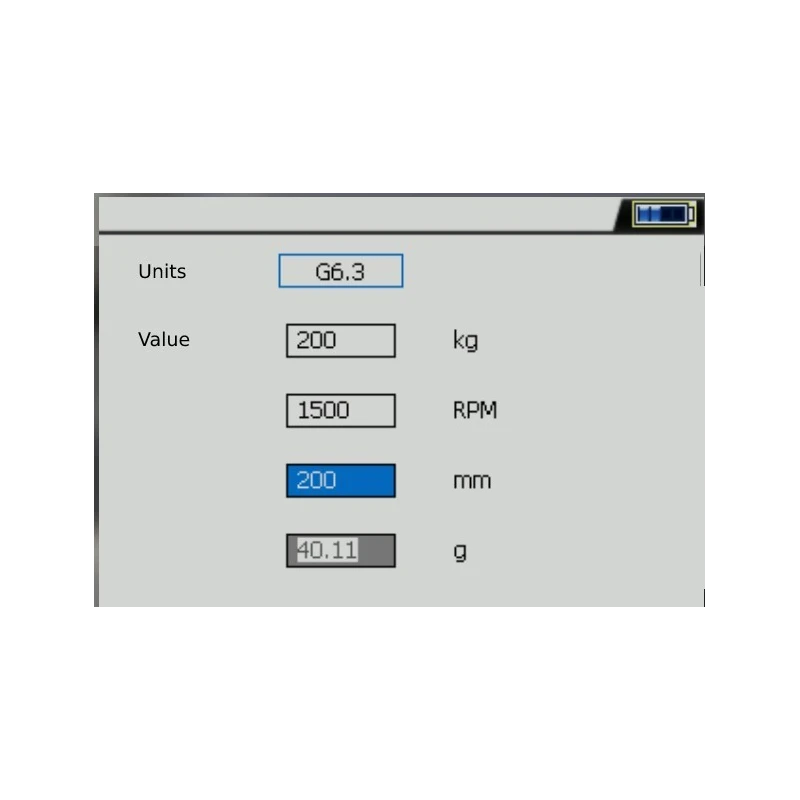

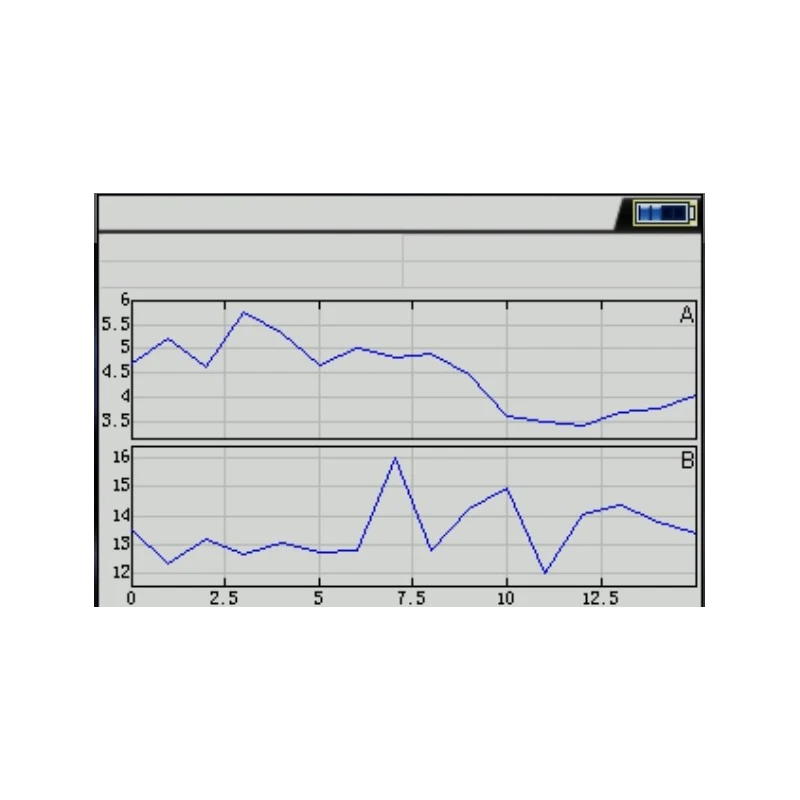

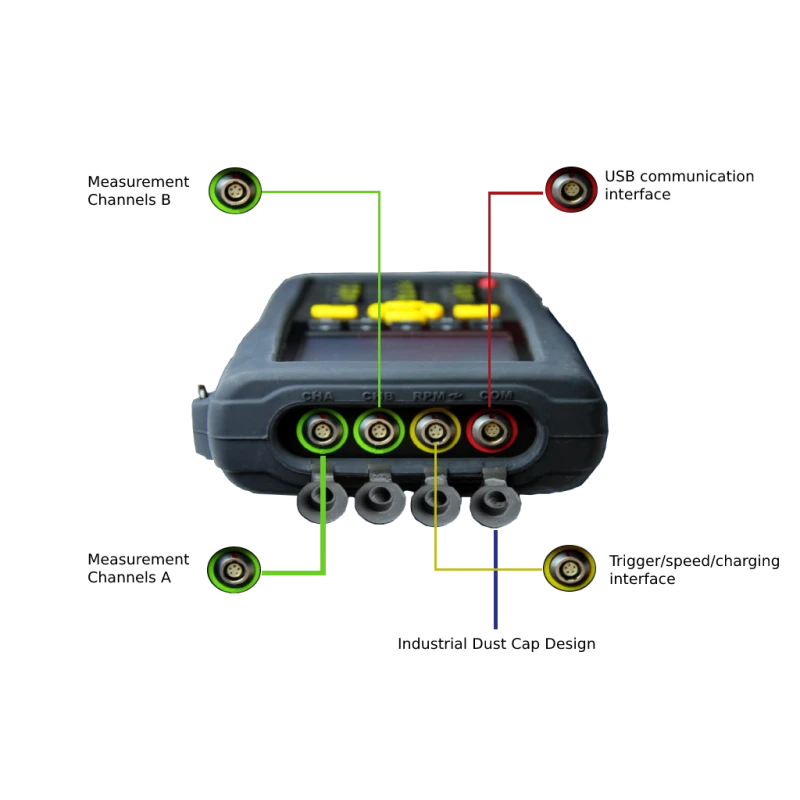

Vibration Analyzer & Balancer VAB100 is a 2 channel portable vibration analyzer and balancer which is suitable for all kinds of rotating machines, such as motor, pump, air compressor, windmill, gear box, steam turbines, generators, cooling towers, etc.With the powerful Analysis software, we can manage the equipment database, monitor trend of state, analyze the abnormal cause and generate the reportFunctionsRoute Based Data CollectionTotal Vibration Trend MonitoringFFT AnalysisTime Domain Waveform AnalysisSingle, Double-plane Dynamic BalanceSpeed MeasurementVector Decomposition and SynthesisRaw Data AnalysisISO Permissible Unbalance QuerySpecificationsDisplay Colorful backlit LCD screen, 320*240pixels, TFT 65536StorageRAM : 64GBFlash : 1GBCommunication USB2.0 Full SpeedPower Lithium-ion, Operating time >8 hours continuous, Recharge time 2-3 hoursSize 190 x 110 x 38mmWeight 900gConditionsEncloser: IP65 Dust-tight and splash-resistantDrop Test: 1.2mOperation Temperature: -10?~ 50?Humidity Range: 0% ~ 80% Relative humidityCollectionChannel: 2 vibration +1speedSignal Types: Speed, acceleration, displacement, AC/DC voltage, AC/DC currentSimulation of coupling: AC/DC/ICP(20V@2.4mA)Signal: 25VDynamic range: >80dBFFT resolution: 400~12800 linesAnalog Filter: High(2Hz / 10Hz / 100Hz / 1000Hz), Low(10Hz / 100Hz / 1000Hz / 40kHz), Anti-aliasing filter 50~40kHzWindow function type: rectangular, Hanning, Hamming, Flat TopLines: Linear, peak, square rootDynamic BalanceSpeed range: 60~300,000 RPMDynamic balance : Single, double-sided dynamic balance, vibration analysisAcquisition signal type: the unit can be set freeOperation: Wizard type operationToolbox: time/frequency domain analysis, history browsing, manually entered, data review, vector decomposition/synthetic, ISO permissible unbalance query, add calculation
- Super Clear Exquisite Color Display - 65000 color Quarter VGA TFT display , Bright backlight , Auto off
- Solid Shell , Light and compact(900g), IP 65 , Non-slip design
- Large Capacity Storage - 1GB
- High Capacity Lithium Battery- large capacity lithium battery for > 8 hours of continuous use on a full charge.
