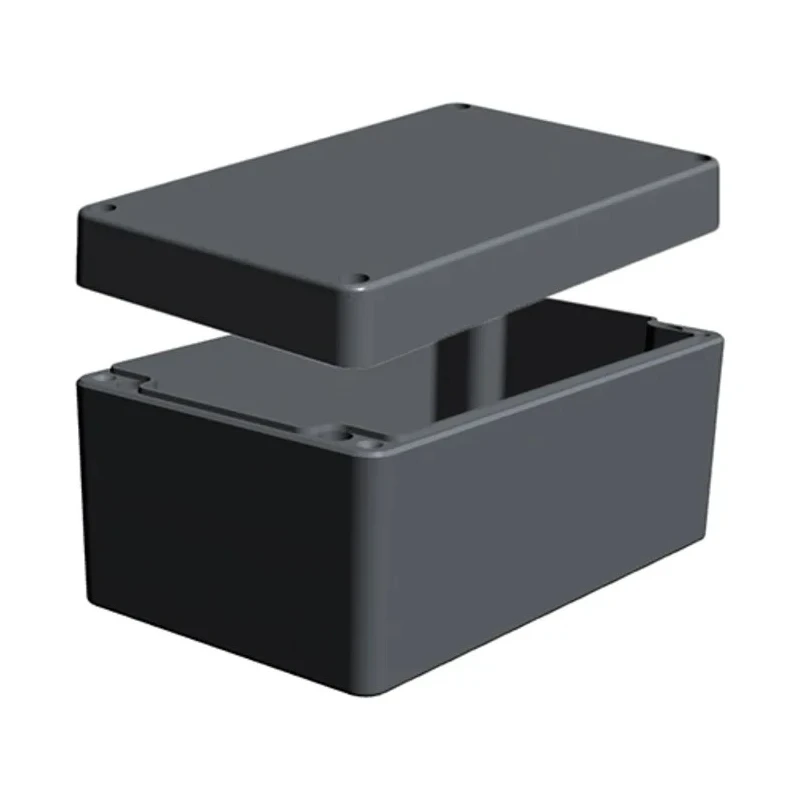

RS PRO Grey Lid Aluminium Enclosure, IP66, IK09, 81 mm x 160 mm x 100 mm IP66
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Model | IP66 |
| IP Rating | IP66 |
| Service Temperature | -50°C to 135°C |
| Series | RS PRO |
| External Width | 100mm |
| External Height | 81mm |
| Shielding | Unshielded |
| Hazardous Area Certification | ATEX, IECEx |
| Standards/Approvals | RoHS |
| External Length | 160mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Silicone |
| Internal/external earthing | 4 mm2 to 120 mm2 internal and external |
| • Mechanical Strength | in accordance with 60079-0, impact energy 7 Nm |
| • Protection Class | EN60529, IP66 |
| RS PRO Grey Lid Aluminium Enclosure, IP66, IK09, 81 mm x 100 mm x 100 mmBrand | RS PRO |
Key Features
- Constructed from AISi 12 diecast aluminium with grey powder coated finish.
- Rated IP66 and IK09 for excellent protection against dust, water, and mechanical impact.
- ATEX and IECEx certified suitable for explosive atmospheres in industrial environments.
- Equipped with silicone gasket and stainless steel captive lid screws for secure sealing.
- Suitable for process control, automation, mining, solar panels, load cells and oil meters.
- Operates reliably in temperatures from -50°C to 135°C.
- Offers internal and external earthing capability for safety compliance.
- Supplied with enclosure body, cover, and 4 cover screws for ready installation.
Product Description
RS PRO IP66 Grey Lid Aluminium Enclosure, model IP66, features precise dimensions of 81 mm height, 160 mm length, and 100 mm width, constructed from robust AISi 12 aluminium with a grey powder coated finish. It has an IP66 ingress protection rating ensuring waterproof and dust-tight sealing, and an IK09 mechanical impact resistance rating, making it ideal for demanding industrial environments.
This enclosure holds certifications such as ATEX and IECEx, qualifying it for use in hazardous areas with explosive atmospheres. Designed to serve industries including process control automation, mining, locomotives, crane hoists, solar energy equipment, load cells, oil meters, and high torque brake systems.
The enclosure includes a silicone gasket and stainless steel captive lid screws to provide a secure and reliable seal. The service temperature range from -50°C to 135°C ensures stable performance across extreme conditions. Internal and external earthing from 4 mm² to 120 mm² supports electrical safety requirements.
The product is supplied complete with the enclosure body, cover, and 4 cover screws, facilitating straightforward assembly on site. Compliance with standards such as IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-31, and ISO 9001:2008 reflects stringent quality and safety benchmarks.
Ideal for electrical, automation, process control, mining, and solar panel applications, this diecast aluminium enclosure offers reliable protection and durability for sensitive electrical components.
Constructed from AISi 12 diecast aluminium with a grey powder coated finish. Rated IP66 for dust-tight and waterproof sealing and IK09 for impact resistance. ATEX and IECEx approved for use in explosive atmospheres. Includes silicone gasket and stainless steel captive lid screws for secure sealing.
Supports internal and external earthing with up to 120 mm² capacity. Designed to operate between -50°C and 135°C service temperature range. Supplied with enclosure body, cover, and 4 cover screws. Discover more electrical enclosures and robust industrial-grade protection solutions at EnvMart.
Explore more products in our General Purpose Enclosures category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure has external dimensions of 81 mm in height, 160 mm in length, and 100 mm in width.
It is rated IP66, providing excellent protection against dust and water ingress.
This unit operates reliably within a service temperature range of -50°C to 135°C.
It is ATEX and IECEx certified, making it suitable for use in explosive atmospheres.
The enclosure is constructed from AISi 12 diecast aluminium with a grey powder coated finish.
The enclosure has an IK09 rating, indicating its ability to withstand mechanical impacts.
Yes, it supports both internal and external earthing with capacities from 4 mm² to 120 mm².
It includes a silicone gasket to ensure a secure and reliable seal.
The product is supplied complete with the enclosure body, cover, and 4 cover screws for easy installation.
It is suitable for industries such as process control, automation, mining, solar panels, load cells, and oil meters.
It complies with standards such as IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-31, and ISO 9001:2008.
The enclosure's mechanical strength is in accordance with 60079-0, with an impact energy of 7 Nm.
