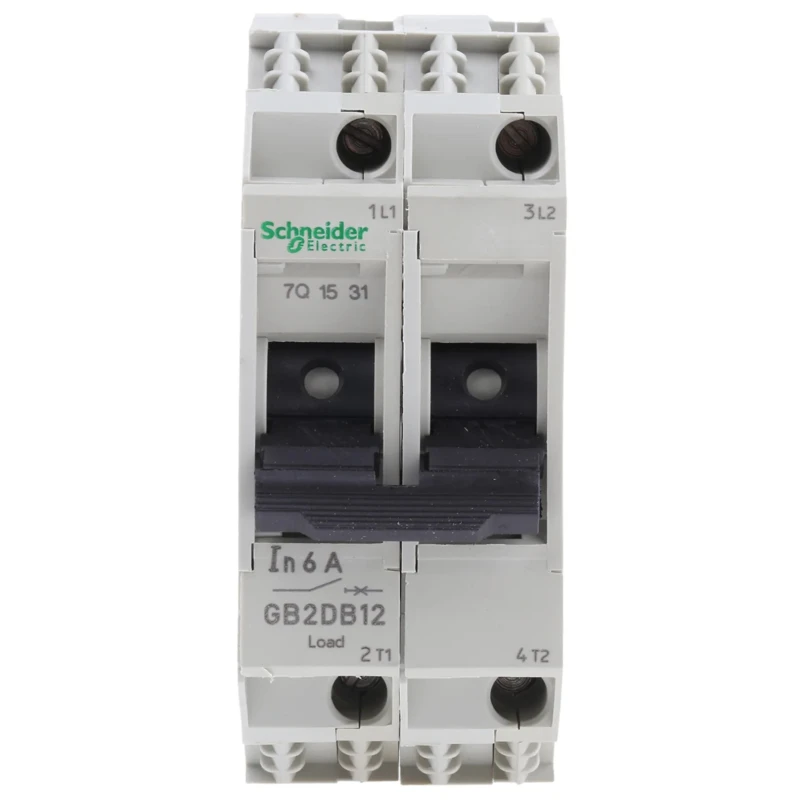

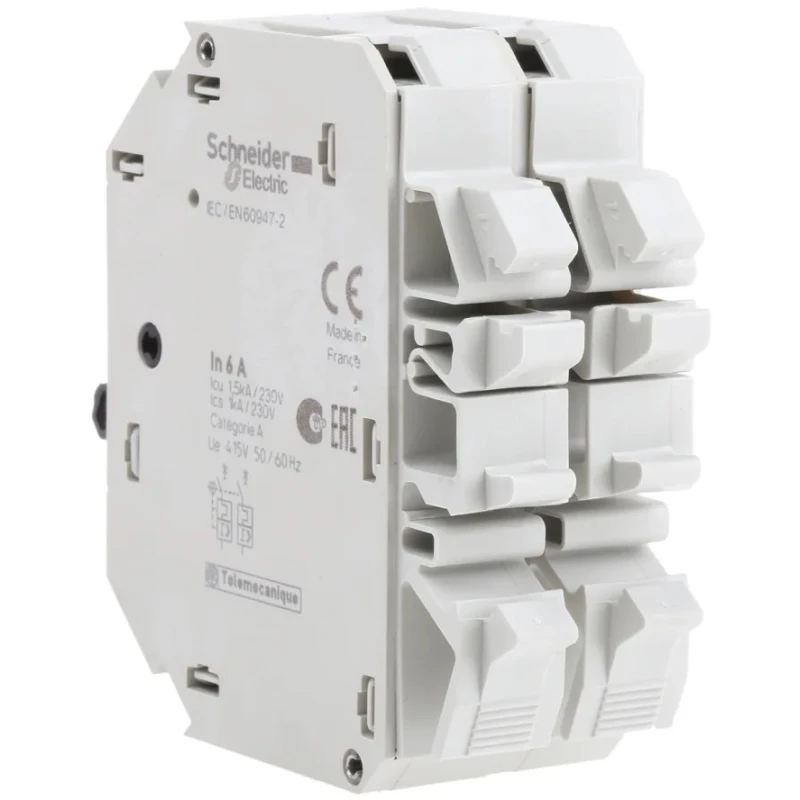

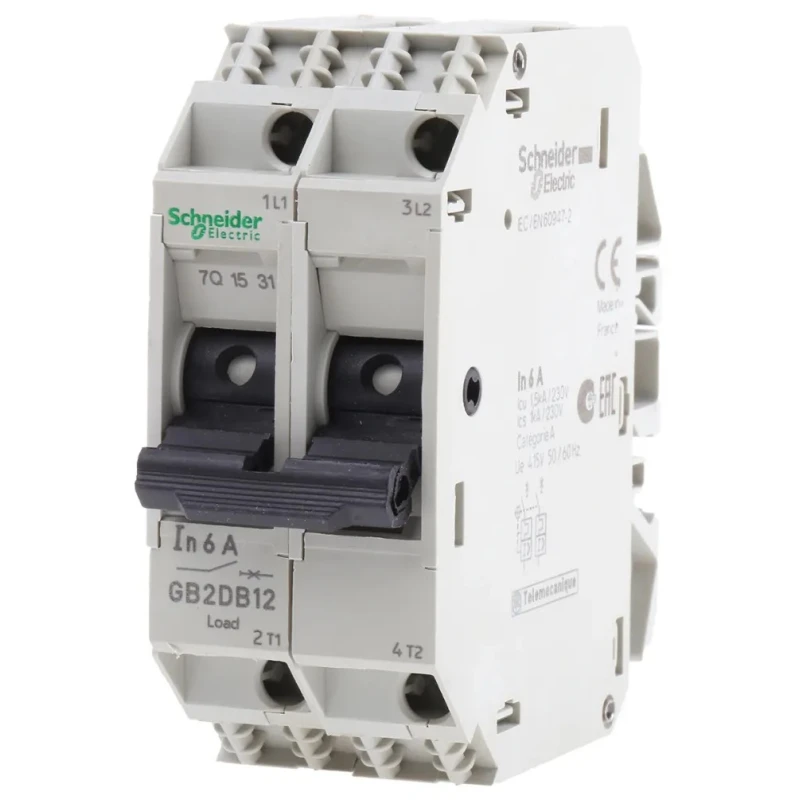

Schneider Electric TeSys GB2 Thermal Circuit Breaker 6A Current Rating 2-Pole DIN Rail Mount GB2DB12

Schneider Electric GB2DB12 is a TeSys GB2 series Thermal Circuit Breaker designed for reliable protection of control circuits in automation and electrical systems. Rated for a 6A current and featuring a 2-pole configuration, this device mounts on a DIN rail with a compact width of 30mm, height of 80mm, and depth of 70mm. It supports rated voltages up to 110V AC and 48V DC with a breaking capacity of 1.5kA at 415V AC, ensuring robust protection against electrical faults.

The thermal-magnetic tripping mechanism offers enhanced safety by responding to both thermal overloads and magnetic short circuits, reducing risks of equipment damage. The toggle switch reset actuator allows manual resetting after a trip event, facilitating ease of use during maintenance. Its durable design withstands 8000 electrical and mechanical cycles, making it a dependable component in industrial electrical panels.

This circuit breaker is suitable for use in various environments, with an operational ambient temperature range from -20°C to 60°C. Its IP20 rating protects against ingress of solid objects larger than 12mm, making it ideal for indoor installations. The screw-type terminals provide flexibility accommodating solid conductors from 0.75mm² to 6mm² and flexible wires with cable ends, simplifying wiring and installation.

Applications mainly include control circuits in automation systems, electrical panels requiring dependable DIN rail mounting, and installations supporting 415V AC networks. Its compact dimensions and versatile mounting options enable horizontal or vertical installations.

Thermal-magnetic tripping mechanism for dual protection against overcurrent and short circuit. Compact DIN rail mounting for easy panel integration and space saving. Rated at 6A current with a breaking capacity of 1.5kA ensuring efficient system safeguarding.

Toggle switch actuator for easy manual reset after tripping. Supports rated operational voltages of 110V AC and 48V DC suitable for control circuits. Built for durability with 8000 mechanical and electrical cycles. Wide ambient temperature range from -20°C to 60°C for varied environmental conditions.

Screw terminal connections allow for secure wiring with solid and flexible conductors. IP20 rated enclosure suitable for indoor use protecting against solid objects above 12mm. Ideal for use in automation, industrial control, and electrical distribution setups requiring reliable circuit protection.

Schneider Electric offers a comprehensive range of industrial electrical products including circuit breakers and control devices. Their TeSys GB2 series thermal breakers are known for quality and reliability across multiple industrial, manufacturing, and automation applications. Browse EnvMart’s extensive Schneider Electric catalog for more advanced electrical protection solutions.
